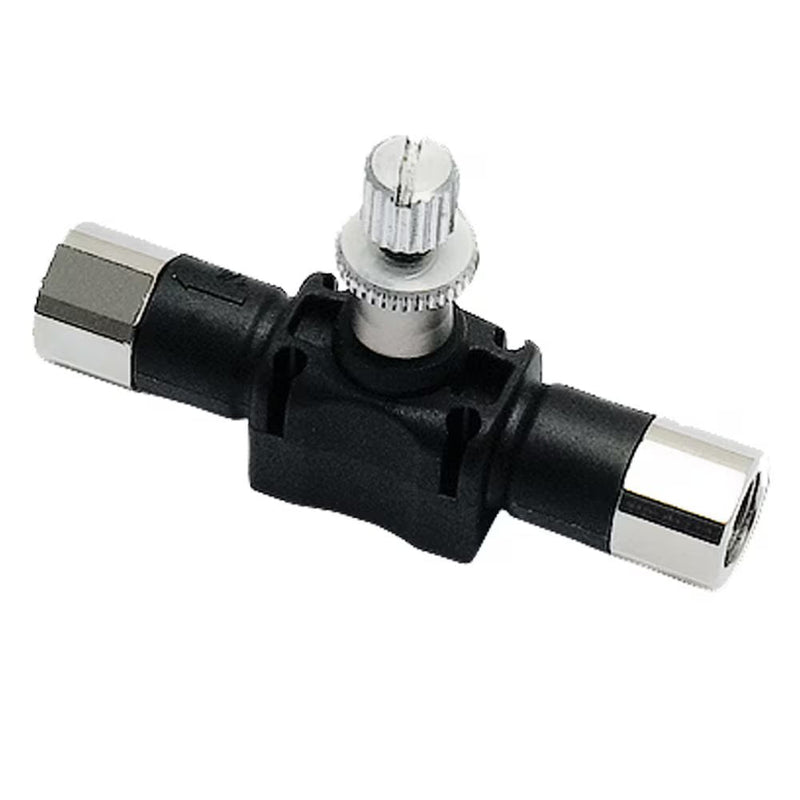

FC836-4 by Parker | Threaded In-Line Flow Control | 1/4" Female NPT Thread x 1/4" Female NPT Thread | 3.27" Length | 1.97" Width | Straight | Glass-Reinforced Nylon | Pack of 5

FC836-4 by Parker | Threaded In-Line Flow Control | 1/4" Female NPT Thread x 1/4" Female NPT Thread | 3.27" Length | 1.97" Width | Straight | Glass-Reinforced Nylon | Pack of 5

Save $143.73 Save $143.73
$359.33
$359.33 - $359.33
$359.33
$215.60
$215.60 - $215.60
$215.60

by Parker Hannifin
In-Line Flow Controls:FC836 Threaded In-Line Flow Control

Package Quantity: 5 Units

Specifications for Variant SKU: FC836-4 Parker | 5 |
Series: FC836 Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade, Valved, Flow Control
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless straight gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
  • Panel mountable
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number NPT Hex 1 Hex 2 H Closed H Open K L L1 N1 N2 T
FC836-2 1/8" 13 mm 8.00 mm 1.56" 1.75" .67" 2.70" .91" .43 .67 .12
FC836-4 1/4" 16 mm 11.00 mm 1.73" 1.97" .73" 3.27" 1.02" .49 .79 .12
FC836-6 3/8" 22 mm 14.00 mm 2.05" 2.40" .94" 3.82" 1.30" .63 1.02 .16
FC836-8 1/2" 24 mm 14.00 mm 2.26" 2.66" 1.10" 4.76" 1.38" .79 1.08 .16
