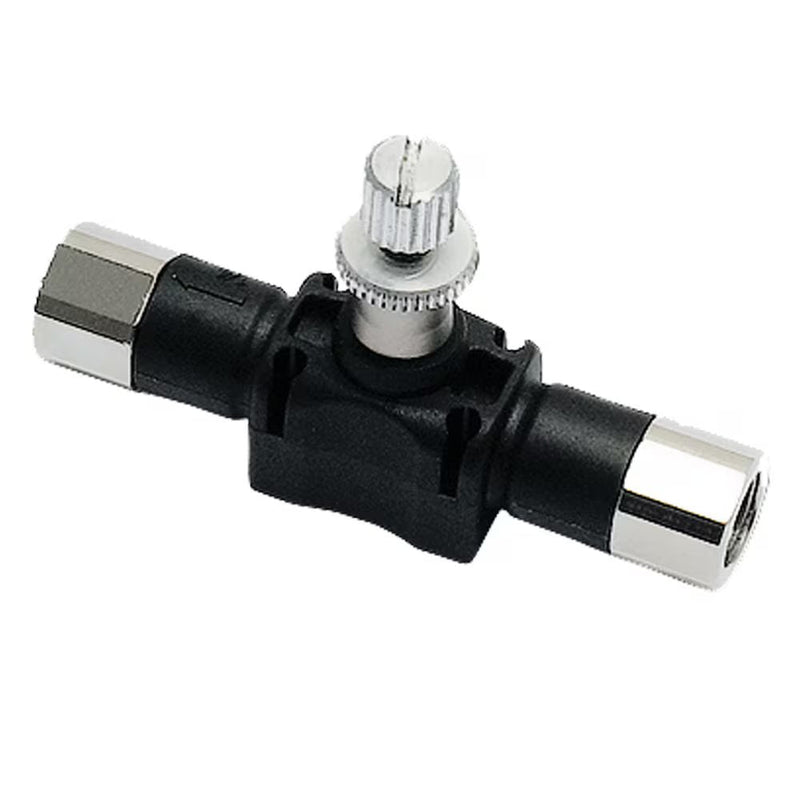

FC836-6 by Parker | Threaded In-Line Flow Control | 3/8" Female NPT Thread x 3/8" Female NPT Thread | 3.82" Length | 2.40" Width | Straight | Glass-Reinforced Nylon | Pack of 4

FC836-6 by Parker | Threaded In-Line Flow Control | 3/8" Female NPT Thread x 3/8" Female NPT Thread | 3.82" Length | 2.40" Width | Straight | Glass-Reinforced Nylon | Pack of 4

Save $162.49 Save $162.49
$406.22
$406.22 - $406.22
$406.22
$243.73
$243.73 - $243.73
$243.73

by Parker Hannifin
In-Line Flow Controls:FC836 Threaded In-Line Flow Control

Package Quantity: 4 Units

Specifications for Variant SKU: FC836-6 Parker | 4 |
Series: FC836 Series
Shape (Orientation): Straight
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade, Valved, Flow Control
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless straight gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
  • Panel mountable
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number NPT Hex 1 Hex 2 H Closed H Open K L L1 N1 N2 T
FC836-2 1/8" 13 mm 8.00 mm 1.56" 1.75" .67" 2.70" .91" .43 .67 .12
FC836-4 1/4" 16 mm 11.00 mm 1.73" 1.97" .73" 3.27" 1.02" .49 .79 .12
FC836-6 3/8" 22 mm 14.00 mm 2.05" 2.40" .94" 3.82" 1.30" .63 1.02 .16
FC836-8 1/2" 24 mm 14.00 mm 2.26" 2.66" 1.10" 4.76" 1.38" .79 1.08 .16

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
