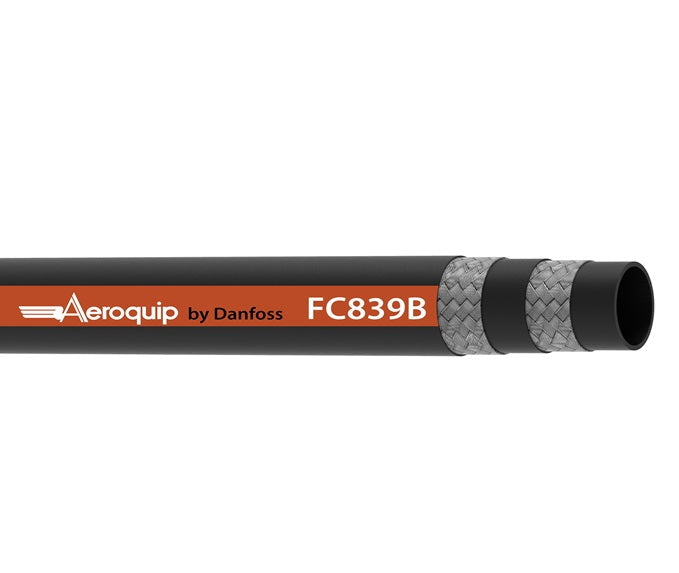

FC839B-16 Aeroquip by Danfoss | BRUISER Ultra-Abrasion Resistant 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose | SAE 100R17 | 1.00" ID

Original price $27.12 - Original price $27.12
Original price
$27.12
$27.12 - $27.12
Current price $27.12

Aeroquip® by Danfoss
FC839B Series | BRUISER Ultra-Abrasion Resistant 3000 PSI Constant Pressure Single Wire Braid Hydraulic Hose

Recommended for use on critical applications in construction, forestry, and other off-highway vehicles. BRUISER™ outer cover offers unmatched abrasion, chemical, and environmental protection.

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.


Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FC839B-16 Danfoss
Brand: Aeroquip
Series: FC839B Series
Hose Color(s): Black
Dash Size: -16
Internal Diameter: 1.00in
Outer Diameter: 1.46in
Tubing Construction: Synthetic Rubber
Cover Construction: Intermediate Synthetic Rubber with Outer Bruiser
Applicable Specs & Approvals: ABS, Applicable MSHA Standards, DNV, SAE 100R17
Hose Properties:
Application: High abrasion industrial and hydraulic system applications with petroleum and water-based fluids. SAE Rating: Meets SAE 100R17 performance, ISO 18752.
Other Ratings: N/A Tube: Synthetic Rubber
Reinforcement: One or Two Layers of Braided Wire Cover: Synthetic Rubber Intermediate Cover and BRUISER™ Outer Cover
Temperature Range: -40°F to +212°F
(-40°C to +100°C)

Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
FC839B-04 6 6,4mm 0.25" 12,7mm 0.50" 210 bar 3,050 psi 840 bar 12,200 psi 50,0mm 1.97" 0,22 kg/m 0.15 lbs/ft
FC839B-06 10 9,7mm 0.38" 16,6mm 0.65" 210 bar 3,050 psi 840 bar 12,200 psi 65,0mm 2.56" 0,34 kg/m 0.23 lbs/ft
FC839B-08 12 12,7mm 0.50" 20,8mm 0.82" 210 bar 3,050 psi 840 bar 12,200 psi 90,0mm 3.54" 0,48 kg/m 0.32 lbs/ft
FC839B-10** 16 15,9mm 0.62" 24,9mm 0.98" 210 bar 3,050 psi 840 bar 12,200 psi 100,0mm 3.94" 0,71 kg/m 0.48 lbs/ft
FC839B-12** 19 19,0mm 0.75" 28,4mm 1.12" 210 bar 3,050 psi 840 bar 12,200 psi 120,0mm 4.72" 0,89 kg/m 0.60 lbs/ft
FC839B-16** 25 25,4mm 1.00" 37,1mm 1.46" 210 bar 3,050 psi 840 bar 12,200 psi 150,0mm 5.91" 1,43 kg/m 0.96 lbs/ft

** Two braids of high tensile wire.

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
