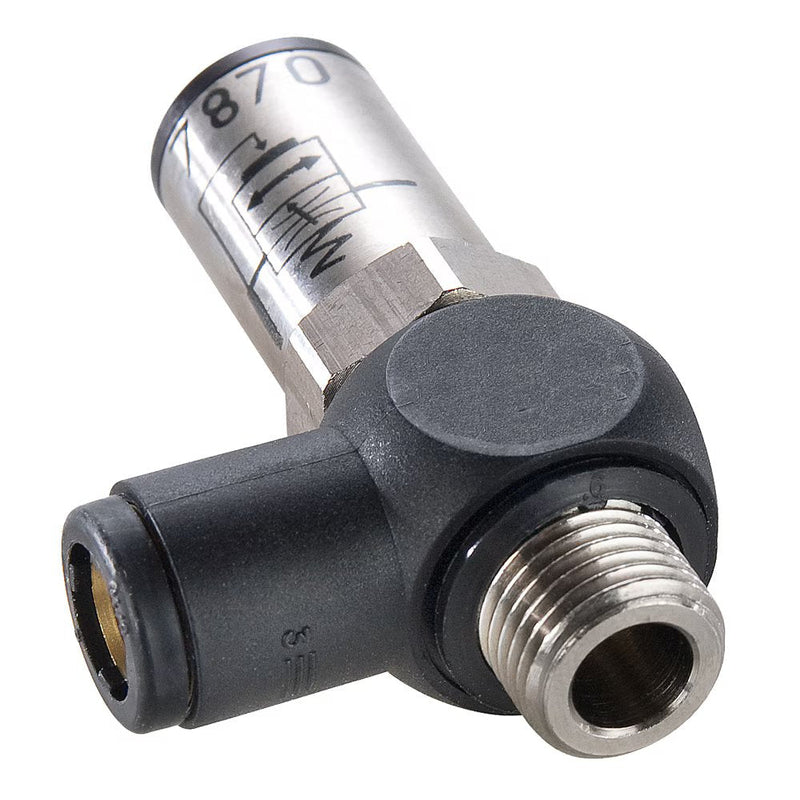

FC908-10M-6G by Parker | Slow Start Fittings | 10 mm Push-to-Connect x 3/8" Male BSPP Thread | 22 mm Hex | 90° Elbow | Nickel-Plated Brass

FC908-10M-6G by Parker | Slow Start Fittings | 10 mm Push-to-Connect x 3/8" Male BSPP Thread | 22 mm Hex | 90° Elbow | Nickel-Plated Brass

Save $20.96 Save $20.96
$161.39
$161.39 - $161.39
$161.39
$140.43
$140.43 - $140.43
$140.43

by Parker Hannifin
Slow Start Flow Control Valve:FC908 Push-to-Connect Slow Start Valve - BSPP for Isolated Component

Specifications for Variant SKU: FC908-10M-6G Parker
Series: FC908 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Special Properties: Valved
Product Features:
      Protection of Equipment & Personnel
  • Prevents the risk of damage after any stoppage which requires the system to be vented
  • Returns the control valve to its initial position in total safety
  • Adjustment of the pressurization speed
  • Protects the adjustment mechanism using a recessed adjustment screw
      • Mounted on FRL
  • Protection for the whole system
  • Simultaneous pressurization speed of the whole system
      • Mounted on Control Valve
  • Protection of individual circuits
  • Mounted on the control valve, it optimizes the pressurization speed of a specific cylinder
Markets:
  • Factory Automation
  • Textile
  • Packaging
  • Semi-Conductor
Applications:
  • Pneumatic Circuits Protection
  • Robotics
Compatible Tubing:
  • Semi-rigid nylon
  • Nylon
  • Fluoropolymer
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size BSPP Hex H (Closed) H (Open) L
FC908-8M-4G 8 mm 1/4" 17 mm 54 mm 61 mm 35 mm
FC908-10M-4G 10 mm 1/4" 22 mm 55 mm 62 mm 41 mm
FC908-10M-6G 10 mm 3/8" 22 mm 55 mm 62 mm 41 mm
