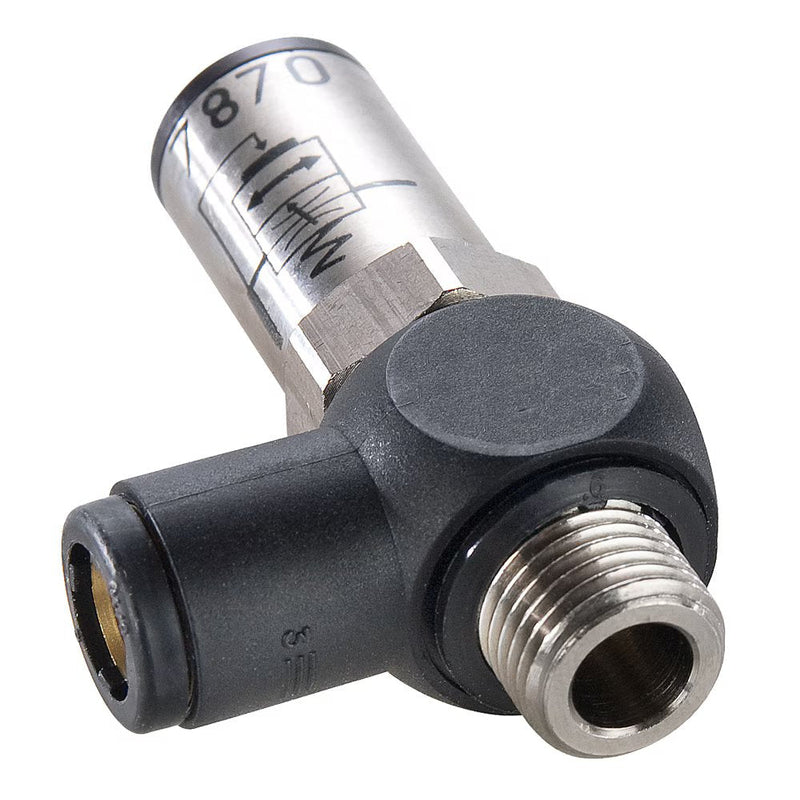

FC908-8M-4G by Parker | Slow Start Fittings | 8 mm Push-to-Connect x 1/4" Male BSPP Thread | 17 mm Hex | 90° Elbow | Nickel-Plated Brass

FC908-8M-4G by Parker | Slow Start Fittings | 8 mm Push-to-Connect x 1/4" Male BSPP Thread | 17 mm Hex | 90° Elbow | Nickel-Plated Brass

Save $72.62 Save $72.62
$181.55
$181.55 - $181.55
$181.55
$108.93
$108.93 - $108.93
$108.93

by Parker Hannifin
Slow Start Flow Control Valve:FC908 Push-to-Connect Slow Start Valve - BSPP for Isolated Component

Specifications for Variant SKU: FC908-8M-4G Parker
Series: FC908 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Special Properties: Valved
Product Features:
      Protection of Equipment & Personnel
  • Prevents the risk of damage after any stoppage which requires the system to be vented
  • Returns the control valve to its initial position in total safety
  • Adjustment of the pressurization speed
  • Protects the adjustment mechanism using a recessed adjustment screw
      • Mounted on FRL
  • Protection for the whole system
  • Simultaneous pressurization speed of the whole system
      • Mounted on Control Valve
  • Protection of individual circuits
  • Mounted on the control valve, it optimizes the pressurization speed of a specific cylinder
Markets:
  • Factory Automation
  • Textile
  • Packaging
  • Semi-Conductor
Applications:
  • Pneumatic Circuits Protection
  • Robotics
Compatible Tubing:
  • Semi-rigid nylon
  • Nylon
  • Fluoropolymer
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size BSPP Hex H (Closed) H (Open) L
FC908-8M-4G 8 mm 1/4" 17 mm 54 mm 61 mm 35 mm
FC908-10M-4G 10 mm 1/4" 22 mm 55 mm 62 mm 41 mm
FC908-10M-6G 10 mm 3/8" 22 mm 55 mm 62 mm 41 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
