FC9171-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 90° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel

FC9171-0606S Aeroquip by Danfoss | Female SAE 45° Swivel 90° Elbow Super Gem PTFE Reusable Hose Fitting | FC Series | -06 Female SAE 45° Swivel x -06 Reusable Hose End | Steel | Pack of 10

$384.64 - $384.64

$384.64

$384.64 - $384.64

$384.64

Aeroquip® by Danfoss

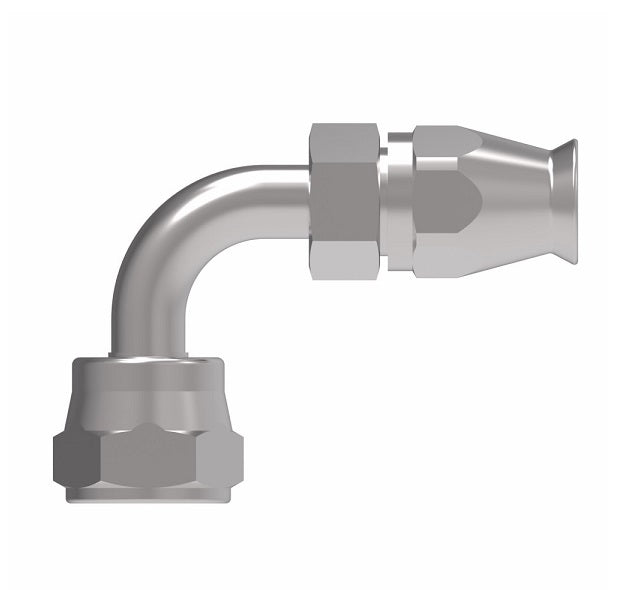

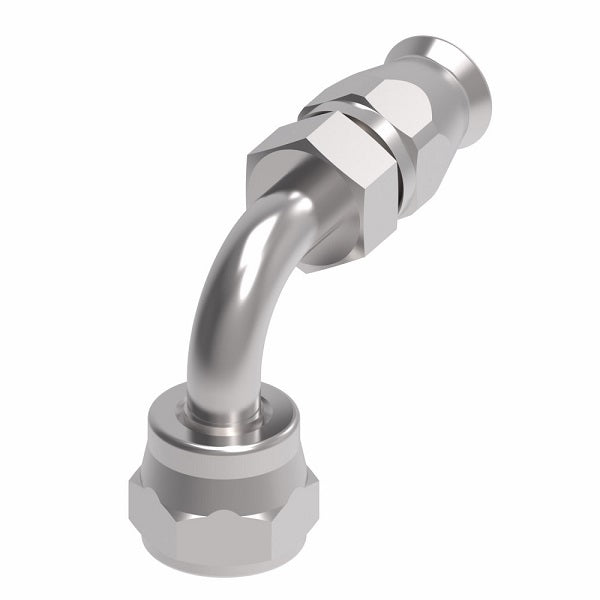

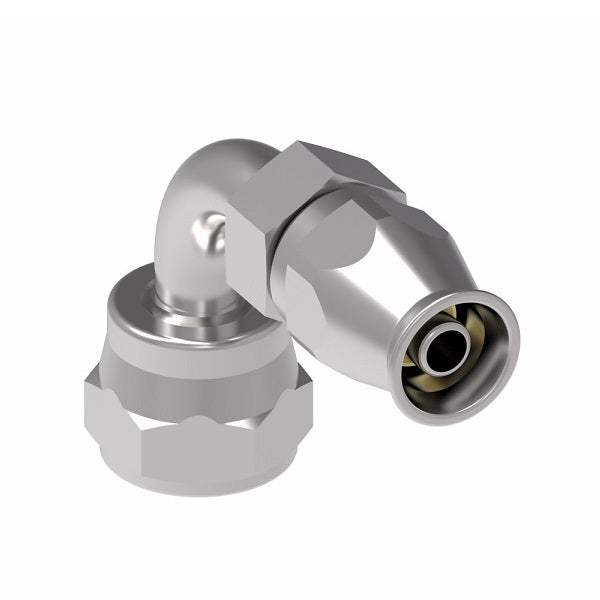

Super Gem Reusable Hose Fitting for PTFE Hose - FC Series - Female SAE 45° Swivel - 90° Elbow

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC9171-0606S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female SAE 45 Flare, 3/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H	Sleeve Brass Part Number	Sleeve Stainless Steel Part Number
FC9171-0606S	-06	5/8-18	1.62"	1.10"	0.28"	0.85"	900568-6B	900568-6C
FC9171-1212S	-12	1-1/16-14	2.80"	2.19"	0.59"	1.82"	900568-12B	900568-12C

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
