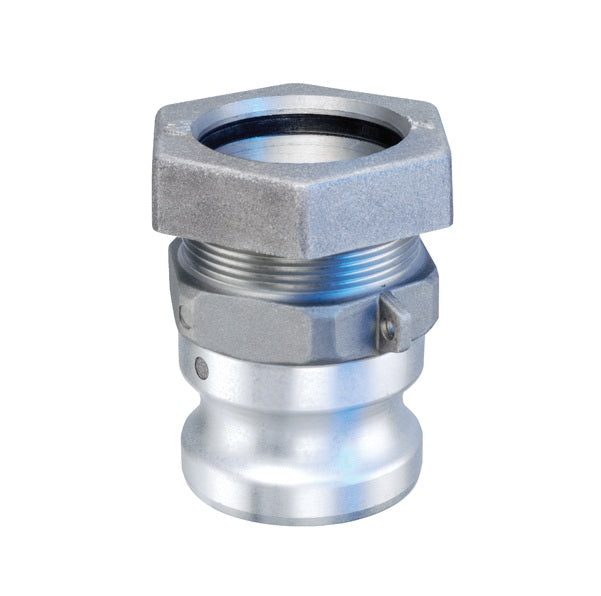

FCAL150 by Kuriyama | FCAL Series | Part A | Cam & Groove Compression Adapter | 1-1/2" Adapter x 1-1/2" Compression End | Aluminum

Save $8.47

$25.92

$25.92 - $25.92

$25.92

$17.45

$17.45 - $17.45

$17.45

Kuriyama of America Inc.
Cam & Groove (Camlock) Compression Adapter | FCAL Series | Part A | Adapter x Compression End | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: FCAL150 Kuriyama
Series:	FCAL Series
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	1-1/2in Male Cam & Groove, 1-1/2in Tube Compression
Material(s):	Aluminum

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
FCAL150	1-1/2"	250 PSI	B26 Grade 713	0.52 lbs
FCAL200	2"	250 PSI	B26 Grade 713	0.72 lbs
FCAL250	2-1/2"	150 PSI	B26 Grade 713	1.32 lbs
FCAL300	3"	150 PSI	B26 Grade 713	1.46 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
