Kuriyama of America Inc.

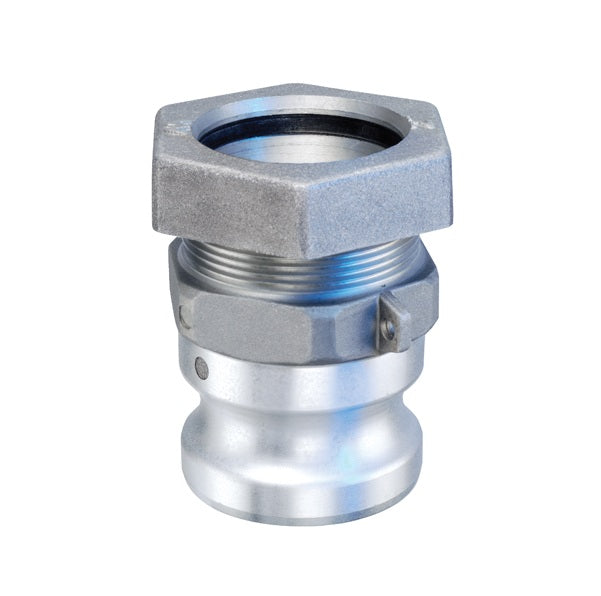

Cam & Groove (Camlock) Compression Adapter | FCAL Series | Part A | Adapter x Compression End | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: FCAL300 Kuriyama
Series:	FCAL Series
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	3in Male Cam & Groove, 3in Tube Compression
Material(s):	Aluminum

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
FCAL150	1-1/2"	250 PSI	B26 Grade 713	0.52 lbs
FCAL200	2"	250 PSI	B26 Grade 713	0.72 lbs
FCAL250	2-1/2"	150 PSI	B26 Grade 713	1.32 lbs
FCAL300	3"	150 PSI	B26 Grade 713	1.46 lbs
