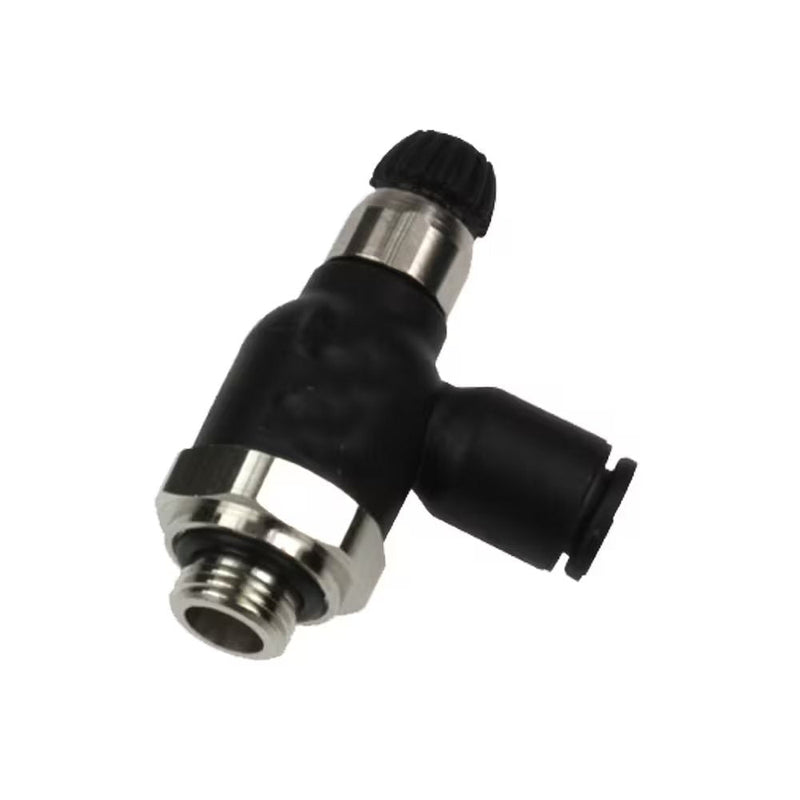

FCC731-10M-4G by Parker | Compact Flow Controls | 10 mm Push-to-Connect x 1/4" Male BSPP Thread | 17 mm Hex 1 | 23 mm Hex 2 | 90° Elbow | Composite Polymer | Pack of 5

FCC731-10M-4G by Parker | Compact Flow Controls | 10 mm Push-to-Connect x 1/4" Male BSPP Thread | 17 mm Hex 1 | 23 mm Hex 2 | 90° Elbow | Composite Polymer | Pack of 5

Save $130.53 Save $130.53
$326.33
$326.33 - $326.33
$326.33
$195.80
$195.80 - $195.80
$195.80

by Parker Hannifin
Compact Flow Controls:FCC731 Compact Meter Out - BSPP

Package Quantity: 5 Units

Specifications for Variant SKU: FCC731-10M-4G Parker | 5 |
Series: FCC731 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade, Valved, Flow Control
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass threads
  • Nitrile D seal
  • NPT
  • BSPT
  • BSPP
  • Metric threads
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPP Hex 1 Hex 2 H Closed H Open L
FCC731-4M-2G 4 mm 1/8" 10 mm 16 mm 38.0 mm 44.0 mm 22.0 mm
FCC731-6M-2G 6 mm 1/8" 10 mm 16 mm 38.0 mm 44.0 mm 22.0 mm
FCC731-6M-4G 6 mm 1/4" 10 mm 16 mm 36.5 mm 42.5 mm 22.0 mm
FCC731-8M-2G 8 mm 1/8" 14 mm 19 mm 41.5 mm 48.0 mm 28.0 mm
FCC731-8M-4G 8 mm 1/4" 14 mm 19 mm 41.5 mm 48.0 mm 28.0 mm
FCC731-8M-6G 8 mm 3/8" 14 mm 19 mm 41.5 mm 48.0 mm 28.0 mm
FCC731-10M-4G 10 mm 1/4" 17 mm 23 mm 45.5 mm 53.5 mm 31.5 mm
FCC731-10M-6G 10 mm 3/8" 17 mm 23 mm 45.5 mm 54.0 mm 31.5 mm
FCC731-12M-6G 12 mm 3/8" 17 mm 23 mm 45.5 mm 54.0 mm 35.0 mm
FCC731-12M-8G 12 mm 1/2" 17 mm 24 mm 45.5 mm 54.0 mm 35.0 mm
