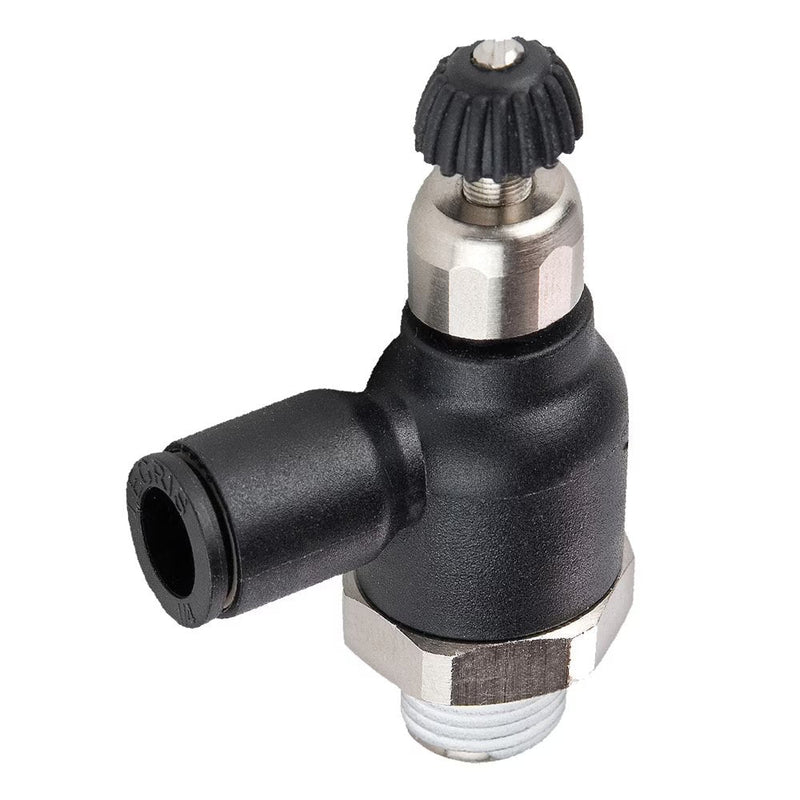

FCC731-10M-6R by Parker | Compact Flow Controls | 10 mm Push-to-Connect x 3/8" Male BSPT Thread | 23 mm Hex 1 | 17 mm Hex 2 | 90° Elbow | Composite Polymer | Pack of 5

FCC731-10M-6R by Parker | Compact Flow Controls | 10mm Push-to-Connect x 3/8" Male BSPT Thread | 23mm Hex 1 | 17mm Hex 2 | 90° Elbow | Composite Polymer | Pack of 5

Save $156.71 Save $156.71
$391.78
$391.78 - $391.78
$391.78
$235.07
$235.07 - $235.07
$235.07

by Parker Hannifin
Compact Flow Controls:FCC731 Compact Meter Out - BSPT

Package Quantity: 5 Units

Specifications for Variant SKU: FCC731-10M-6R Parker | 5 |
Series: FCC731 Series
Shape (Orientation): 90° Elbow
Material(s): Polymer, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade, Valved, Flow Control
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass threads
  • Nitrile D seal
  • NPT
  • BSPT
  • BSPP
  • Metric threads
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPT Hex 1 Hex 2 H Closed H Open L
FCC731-6M-2R 6 mm 1/8" 16 mm 10 mm 36.5 mm 42.5 mm 22.0 mm
FCC731-8M-2R 8 mm 1/8" 19 mm 14 mm 40.0 mm 45.0 mm 27.0 mm
FCC731-8M-4R 8 mm 1/4" 19 mm 14 mm 40.0 mm 45.0 mm 27.0 mm
FCC731-10M-4R 10 mm 1/4" 23 mm 17 mm 43.5 mm 51.5 mm 31.5 mm
FCC731-10M-6R 10 mm 3/8" 23 mm 17 mm 43.5 mm 51.5 mm 31.5 mm
FCC731-10M-8R 10 mm 1/2" 23 mm 17 mm 43.5 mm 51.5 mm 31.5 mm
FCC731-12M-4R 12 mm 1/4" 23 mm 17 mm 43.5 mm 51.5 mm 35.0 mm
FCC731-12M-6R 12 mm 3/8" 23 mm 17 mm 43.5 mm 51.5 mm 35.0 mm
FCC731-12M-8R 12 mm 1/2" 23 mm 17 mm 43.5 mm 51.5 mm 35.0 mm
