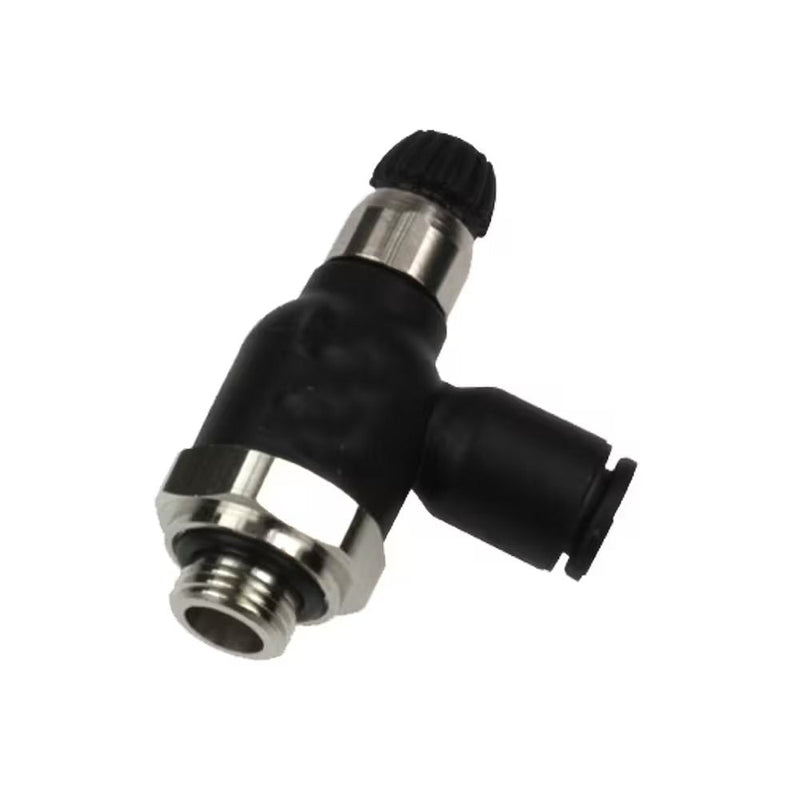

FCC731-12M-8G by Parker | Compact Flow Controls | 12 mm Push-to-Connect x 1/2" Male BSPP Thread | 17 mm Hex 1 | 24 mm Hex 2 | 90° Elbow | Composite Polymer | Pack of 5

Save $34.24

$283.91

$283.91 - $283.91

$283.91

$249.67

$249.67 - $249.67

$249.67

by Parker Hannifin
Compact Flow Controls:FCC731 Compact Meter Out - BSPP

Package Quantity: 5 Units

Specifications for Variant SKU: FCC731-12M-8G Parker \| 5 \|
Series:	FCC731 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Food Grade, Valved, Flow Control

Product Features:	Glass reinforced nylon 6.6 body Stainless steel gripping ring Nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated brass threads Nitrile D seal NPT BSPT BSPP Metric threads
Markets:	Factory/Process Automation Life Science Food Processing Water And Beverage Petrochemical
Applications:	Packaging Filling Dispensing Bottling Pneumatic Circuits
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	+32° to +158° F (0 to +70° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	BSPP	Hex 1	Hex 2	H Closed	H Open	L
FCC731-4M-2G	4 mm	1/8"	10 mm	16 mm	38.0 mm	44.0 mm	22.0 mm
FCC731-6M-2G	6 mm	1/8"	10 mm	16 mm	38.0 mm	44.0 mm	22.0 mm
FCC731-6M-4G	6 mm	1/4"	10 mm	16 mm	36.5 mm	42.5 mm	22.0 mm
FCC731-8M-2G	8 mm	1/8"	14 mm	19 mm	41.5 mm	48.0 mm	28.0 mm
FCC731-8M-4G	8 mm	1/4"	14 mm	19 mm	41.5 mm	48.0 mm	28.0 mm
FCC731-8M-6G	8 mm	3/8"	14 mm	19 mm	41.5 mm	48.0 mm	28.0 mm
FCC731-10M-4G	10 mm	1/4"	17 mm	23 mm	45.5 mm	53.5 mm	31.5 mm
FCC731-10M-6G	10 mm	3/8"	17 mm	23 mm	45.5 mm	54.0 mm	31.5 mm
FCC731-12M-6G	12 mm	3/8"	17 mm	23 mm	45.5 mm	54.0 mm	35.0 mm
FCC731-12M-8G	12 mm	1/2"	17 mm	24 mm	45.5 mm	54.0 mm	35.0 mm
