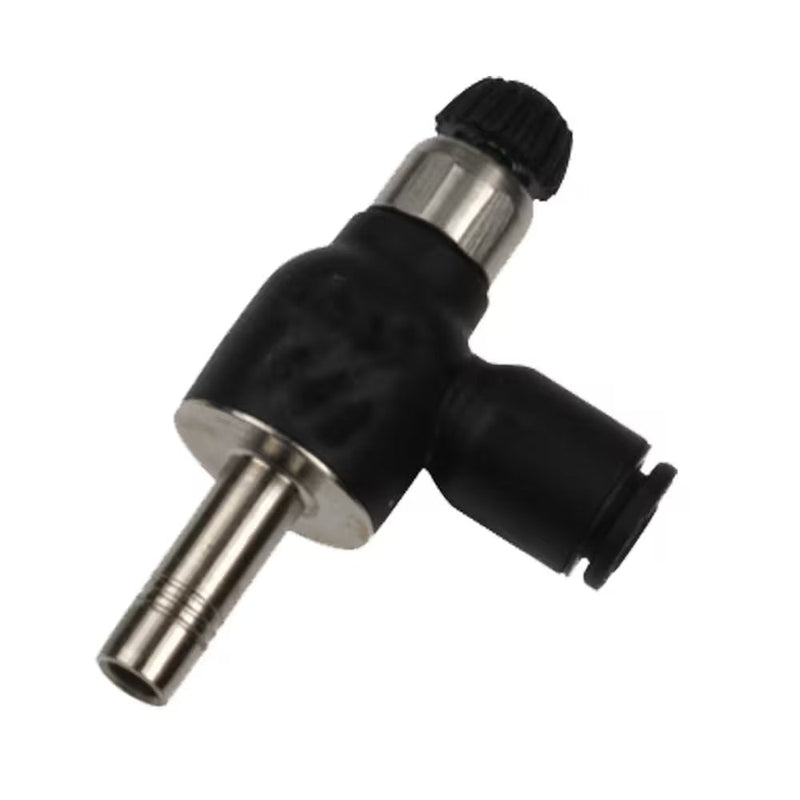

FCCSP731-12M by Parker | Plug-In Out Flow Controls | 12 mm Push-to-Connect x 12 mm Plug-In Stand Pipe | 78 mm Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

FCCSP731-12M by Parker | Plug-In Out Flow Controls | 12 mm Push-to-Connect x 12 mm Plug-In Stand Pipe | 78 mm Length | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Save $271.65 Save $271.65
$679.12
$679.12 - $679.12
$679.12
$407.47
$407.47 - $407.47
$407.47

by Parker Hannifin
Plug-In Flow Controls:FCCSP731 Plug-In Compact Meter Out Flow Control

Package Quantity: 10 Units

Specifications for Variant SKU: FCCSP731-12M Parker | 10 |
Series: FCCSP731 Series
Shape (Orientation): 90° Elbow
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade, Valved, Flow Control
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated tailpiece
  • Nitrile D seal
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size Hex H Open H Closed H1 H2 L
FCCSP731-6M 6 mm 10 mm 35.0 mm 41.0 mm 14.0 mm 17.0 mm 22.0 mm
FCCSP731-8M 8 mm 14 mm 39.5 mm 46.5 mm 16.0 mm 21.5 mm 28.0 mm
FCCSP731-12M 12 mm 17 mm 43.0 mm 51.0 mm 17.0 mm 27.0 mm 31.5 mm
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
