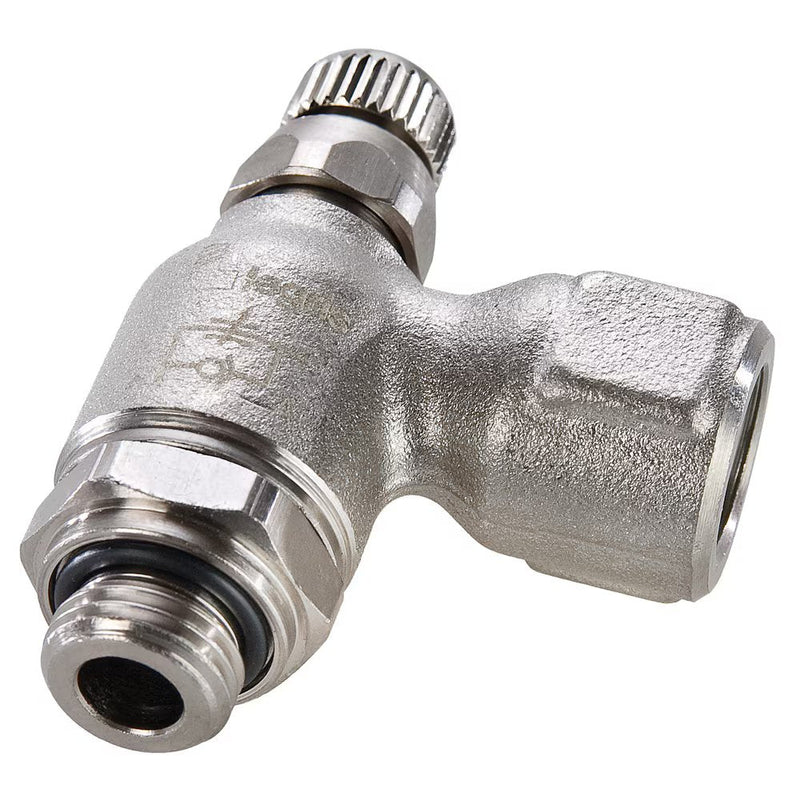

FCI702-4G by Parker | Threaded Port Meter In Metal Flow Control | 1/4" Female BSPP x 1/4" Male BSPP Thread | 19 mm Height | 90° Elbow | Nickel Plated Brass | Pack of 5

Save $114.53

$286.33

$286.33 - $286.33

$286.33

$171.80

$171.80 - $171.80

$171.80

by Parker Hannifin
Metal Flow Controls:FCI702 Threaded Port Meter In Metal Flow Control - BSPP

Package Quantity: 5 Units

Specifications for Variant SKU: FCI702-4G Parker \| 5 \|
Series:	FCI702 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Petrochemical, Valved, Flow Control

Product Features:	Treated brass body Stainless steel gripping ring Electroless-nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated threads Nitrile D seal
Markets:	Factory/Process Automation Petrochemical Automotive Process
Applications:	Robotics Packaging Textile
Pressure Range:	15 to 145 psi (1.0 to 9.9 bar)
Temperature Range:	-4° to +158° F (-20° to +70° C)
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	BSPP	Hex 1	Hex 2	H Closed	H Open	L
FCI702-2G	1/8"	10 mm	19 mm	47.0 mm	52.5 mm	22.5 mm
FCI702-4G	1/4"	14 mm	19 mm	50.5 mm	55.5 mm	32.0 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
