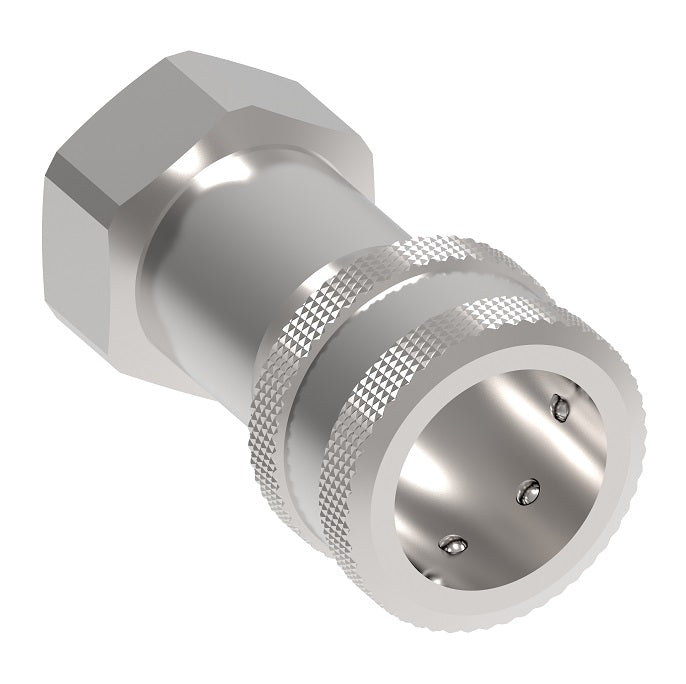

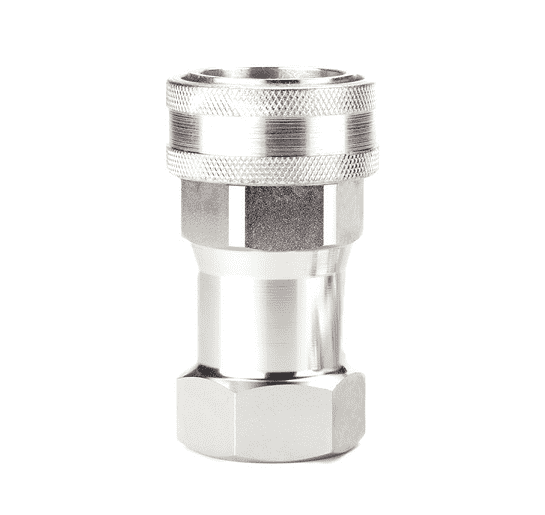

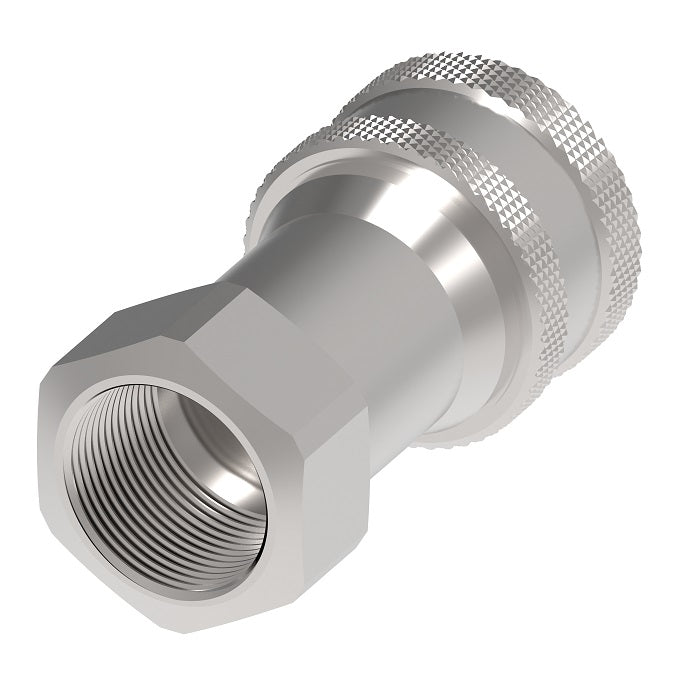

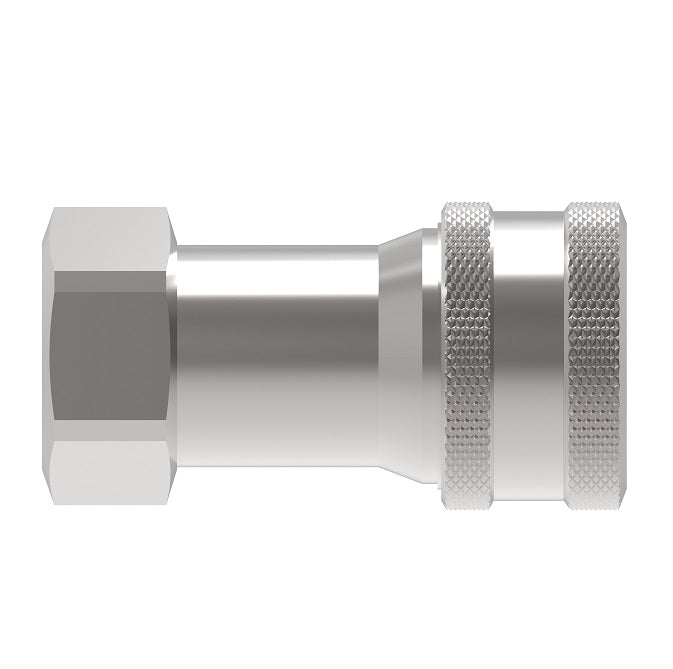

FD56-1225-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female NPT x 1" ISO 7241 Type A | Socket | Non-Valved | Buna-N Seal | Carbon Steel

FD56-1225-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female NPT x 1" ISO 7241 Type A | Socket | Non-Valved | Buna-N Seal | Carbon Steel

$79.19 - $79.19

$79.19

$79.19 - $79.19

$79.19

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female NPT (Non-Valved)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves.

Note: Will not operate with valved coupling halves; no valve actuator.

Quantity

Specifications for Variant SKU: FD56-1225-16-16 Danfoss
Brand:	Hansen
Series:	5600 Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in ISO-A QD Interchange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Self-sealing poppet valve provides excellent high and low pressure sealing. Streamlined valving provides minimum pressure drop.
Applications & Markets:	Hydraulic fluid transfer Agricultural equipment Construction equipment Dump, snow plow and maintenance vehicles In-plant manufacturing
ISO Standard:	Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:	Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size) Standard seal materials: Buna-N, EPDM and FKM

Body Size	Max. Operating Pressure		Minimum Burst Pressure Connected		Vacuum Connected Only	Rated Flow		Air Inclusion	Fluid Loss
in	bar	psi	bar	psi	in/hg	lpm	gpm	cc.max.	cc.max.
1/4	350	5000	1050	15000	28	4	1	0.50	0.50
3/8	280	4000	840	12000	28	23	6	1.5	1.3
5/8	280	4000	840	12000	28	45	12	2.8	2.8
3/4	280	4000	840	12000	28	106	28	10.0	8.2
1	280	4000	840	12000	28	189	50	14.2	14.2


Plug/Male (Figure 1)			Socket/Female (Figure 2)					Complete (Figure 3)
Dimensions (Female NPT, Non-Valved)
Part Number			Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions
Buna-N	FKM	EPDM							A		B		Hex 1
Buna-N	FKM	EPDM							mm	in	mm	in	mm	in
FD56-1037-04-04 (No Seal)			Plug/Male*	1/4"	1/4"	1/4-18	Female NPT	1	31.5mm	1.24"	-	-	19.1mm	0.75"
FD56-1225-04-04	FD56-1207-04-04	FD56-1204-04-04	Socket/Female	1/4"	1/4"	1/4-18	Female NPT	2	46.0mm	1.81"	27.4mm	1.08"	22.4mm	0.88"
FD56-1226-04-04	FD56-1208-04-04	FD56-1205-04-04	Complete*	1/4"	1/4"	1/4-18	Female NPT	3	63.2mm	2.49"	-	-	-	-

FD56-1037-06-06 (No Seal)			Plug/Male*	3/8"	3/8"	3/8-18	Female NPT	1	35.6mm	1.40"	-	-	22.4mm	0.88"
FD56-1225-06-06	FD56-1207-06-06	FD56-1204-06-06	Socket/Female	3/8"	3/8"	3/8-18	Female NPT	2	54.6mm	2.15"	31.2mm	1.23"	25.4mm	1.00"
FD56-1226-06-06	FD56-1208-06-06	FD56-1205-06-06	Complete*	3/8"	3/8"	3/8-18	Female NPT	3	71.1mm	2.80"	-	-	-	-

FD56-1037-08-10 (No Seal)			Plug/Male*	5/8"	1/2"	1/2-14	Female NPT	1	48mm	1.89"	-	-	26.9mm	1.06"
FD56-1225-08-10	FD56-1207-08-10	FD56-1204-08-10	Socket/Female	5/8"	1/2"	1/2-14	Female NPT	2	66.3mm	2.61"	38.1mm	1.50"	30.2mm	1.19"
FD56-1226-08-10	FD56-1208-08-10	FD56-1205-08-10	Complete*	5/8"	1/2"	1/2-14	Female NPT	3	96mm	3.78"	-	-	-	-

FD56-1037-12-12 (No Seal)			Plug/Male*	3/4"	3/4"	3/4-14	Female NPT	1	57.9mm	2.28"	-	-	-	-
FD56-1225-12-12	FD56-1207-12-12	FD56-1204-12-12	Socket/Female	3/4"	3/4"	3/4-14	Female NPT	2	82.6mm	3.25"	46.0mm	1.81"	38.1mm	1.50"
FD56-1226-12-12	FD56-1208-12-12	FD56-1205-12-12	Complete*	3/4"	3/4"	3/4-14	Female NPT	3	113.3mm	4.46"	-	-	-	-

FD56-1037-16-16 (No Seal)			Plug/Male*	1"	1"	1-11-1/2	Female NPT	1	70.4mm	2.77"	-	-	41.1mm	1.62"
FD56-1225-16-16	FD56-1207-16-16	FD56-1204-16-16	Socket/Female	1"	1"	1-11-1/2	Female NPT	2	97mm	3.82"	53.3mm	2.10"	42.9mm	1.69"
FD56-1226-16-16	FD56-1208-16-16	FD56-1205-16-16	Complete*	1"	1"	1-11-1/2	Female NPT	3	140.7mm	5.54"	-	-	-	-

* Male halves contain no seals.
