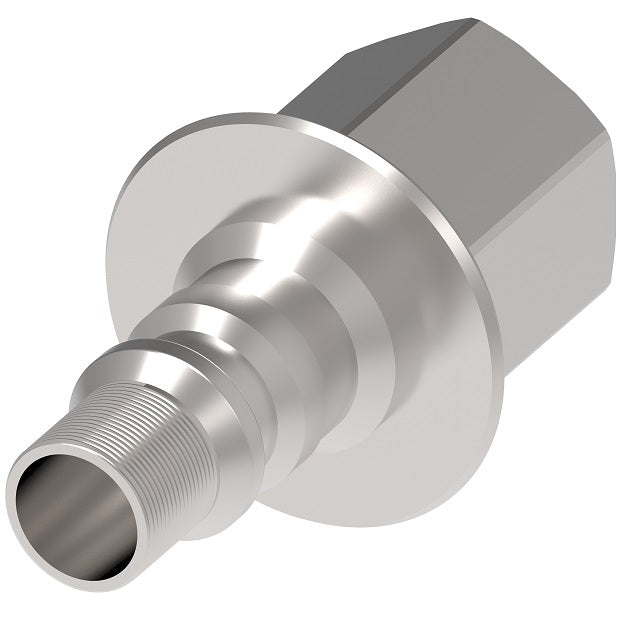

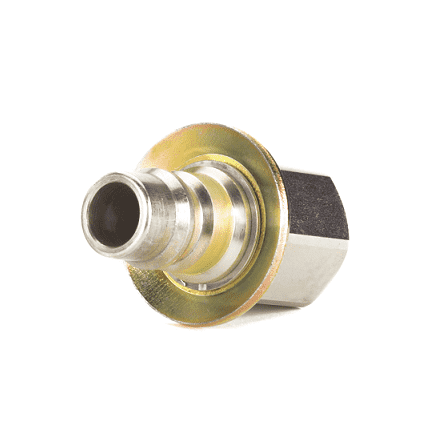

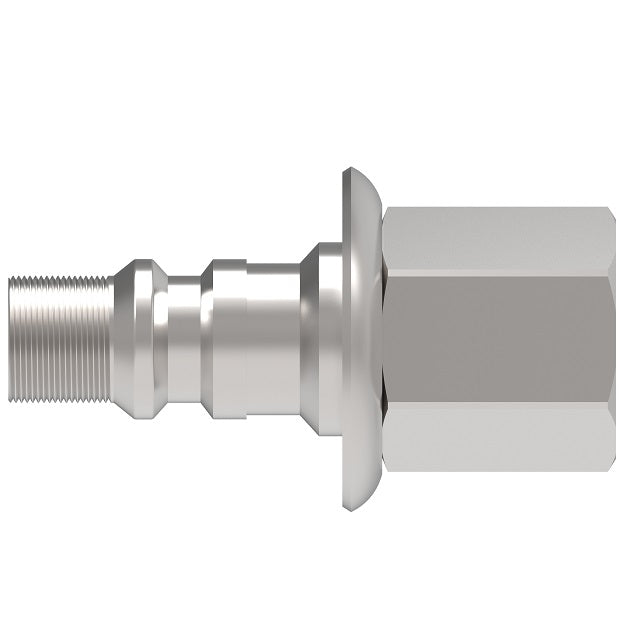

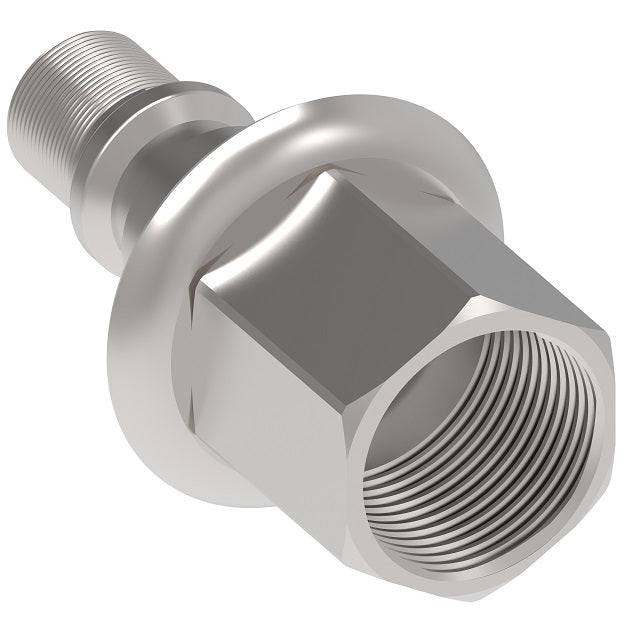

FD69-1002-06-08 Hansen® by Danfoss | Quick Disconnect Coupling | FD69 Series | 3/8" Female NPT x 1/2" Water Blast | Plug | No Seal | Steel

FD69-1002-06-08 Hansen® by Danfoss | Quick Disconnect Coupling | FD69 Series | 3/8" Female NPT x 1/2" Water Blast | Plug | No Seal | Steel

$44.70

Hansen® by Danfoss
FD69 Series | 10,000 psi Water Blast

Water Blast Quick Disconnect Coupling

Danfoss Hansen FD69 Series design has a greater surface contact area for long service life in rugged high pressure and water blast applications.

The maximum operating pressure is 10,000 psi with 40,000 psi minimum burst pressure.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FD69-1002-06-08 Danfoss
Brand: Hansen
Series: FD69 Series
Shape (Orientation): Straight
Material(s): Steel
Product Features:
  • Safety sleeve lock guards against accidental disconnection.
  • Smooth bore "straight through" design for high flow fluid requirements.
  • Heavy duty back-up ring to prevent O-Ring extrusion.
Applications & Markets:
  • High pressure WaterBlast
  • Bridge/Concrete Repair
  • Paint Stripping
  • Shipyards
Materials:
  • Standard body material: High resistance carbon steel with Zinc trivalent plating or stainless steel.
  • Standard seal materials: Nitrile (NBR). FKM also available.
Coupling Size Max. Operating Pressure Minimum Burst Pressure
Connected		 Vacuum
Connected Only		 Rated Flow Air Inclusion Fluid Loss
in bar psi bar psi in/hg lpm gpm cc.max. cc.max.
1/2 689 10,000 2,758 40,000 28 170 45 - -
Socket/Female (Figure 1)
Plug/Male (Figure 2)
Dimensions (Female NPT)
Part Number Coupling Type Body Size Port Size Thread Type Figure Dimensions
NBR FKM A B Hex 1
Steel
FD69-1002-06-08 (has no seal) Plug/Male 1/2" 3/8" 3/8-18 Female NPT 1 1.85"
(47.0mm)		 1.64"
(41.7mm)		 1.00"
(25.4mm)
FD69-1001-06-08 FD69-1026-06-08 Socket/Female 1/2" 3/8" 3/8-18 Female NPT 2 2.13"
(54.1mm)		 1.62"
(41.1mm)		 1.25"
(31.8mm)

FD69-1002-08-08 (has no seal) Plug/Male 1/2" 1/2" 1/2-14 Female NPT 1 2.34"
(59.4mm)		 1.64"
(41.7mm)		 1.12"
(28.4mm)
FD69-1001-08-08 FD69-1026-08-08 Socket/Female 1/2" 1/2" 1/2-14 Female NPT 2 2.13"
(54.1mm)		 1.62"
(41.1mm)		 1.25"
(31.8mm)
Stainless Steel
FD69-1012-08-08 (has no seal) Plug/Male 1/2" 1/2" 1/2-14 Female NPT 1 2.34"
(59.4mm)		 1.64"
(41.7mm)		 1.12"
(28.4mm)
FD69-1011-08-08 - Socket/Female 1/2" 1/2" 1/2-14 Female NPT 2 2.13"
(54.1mm)		 1.62"
(41.1mm)		 1.31"
(33.3mm)
Dimensions (Complete Couplings | Female NPT)
Complete (Figure 3)
Part Number Coupling Type Body Size Port Size Thread Type Figure Dimensions
NBR P P1 A
Steel
FD69-1000-080808 Complete 1/2" 1/2" 1/2-14 1/2-14 Female NPT 3 3.43"
(87.1mm)
FD69-1000-060806 Complete 1/2" 3/8" 3/8-18 3/8-18 Female NPT 3 2.94"
(74.7mm)
Stainless Steel
FD69-1010-080808 Complete 1/2" 1/2" 1/2-14 1/2-14 Female NPT 3 3.43"
(87.1mm)
Repair Kit | Female Interface Seal
Part Number
NBR		 Coupling
Size
FF10166 1/2"
