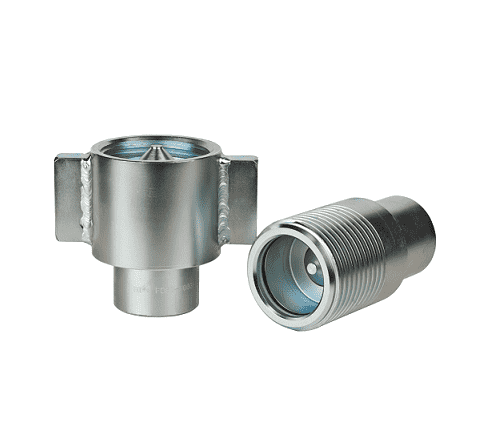

FD85-1000-12-12 Eaton FD85 Series Complete Thread to Connect 3/4-14 Female NPTF Quick Disconnect Coupling Steel

FD85-1000-12-12 by Danfoss | FD85 Series | Quick Disconnect Coupling | 3/4" Female NPTF Complete Thread to Connect | Steel

$262.36 - $262.36
$262.36
$262.36 - $262.36
$262.36

Eaton FD85 Series - Thread to Connect - Complete Sets - Steel
Specifications for Variant SKU: FD85-1000-12-12 Danfoss
Shape (Orientation): Straight
Material(s): Zink-Plated Carbon Steel, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
The Eaton FD85 Series is a thread to connect coupling most commonly used in Oil and Gas applications, but can also be found on demanding applications on both mobile and stationary equipment where operating pressures of 5,000 psi are present. See How to Order

SPECIFICATIONS

Applications & Markets:
  • Oilfields
  • Offshore Drilling
  • Construction
  • Oil and Gas
Product Features:
  • Thread to connect feature allows for use in high vibration and impulse applications.
  • Connect under residual pressure capability
  • Wing nut and wrench flat design allows for easy connection and disconnection
  • 3/4" design is offered in a hex nut design.
Lloyd's Register Certification The FD85 Series carries a Lloyd's Registry Certificate for fire conditions outlined in API 16D and EUB Directive 36. These parts meet the requirements that couplings shall be capable of maintaining pressure when exposed to a 700°C (1,300°F) temperature for a five-minute period in connected state. Certification only applies to those assemblies where both mating parts socket/female and plug/male are Eaton FD85 Series thread to connect couplings.
Standard Body Material: Zinc trivalent plated carbon steel. Stainless steel construction available upon request.
Standard Seal Buna-N. FKM seals are available upon request.
FD85 Series Components: 5100 Series Plugs (Male) 5100 Series Sockets (Female) 5100 Series Complete Coupling Sets

Physical Characteristics

Maximum Operating Pressure Minimum Burst Pressure
Body Size Connected Plug/Male Half Socket/Female Half Connected Plug/Male Half Socket/Female Half Rated Flow FluidLoss AirInclusion
in bar psi bar psi bar psi bar psi bar psi bar psi L/min gpm ml-cc. ml-cc.
3/4" 345 5,000 345 5,000 345 5,000 1,380 20,000 1,380 20,000 1,380 20,000 100 26.4 10 10
1" 345 5,000 345 5,000 345 5,000 1,380 20,000 1,380 20,000 1,380 20,000 189 50 20 26
1 1/4" 345 5,000 345 5,000 345 5,000 1,035 15,000 1,035 15,000 1,035 15,000 288 76 20 40
1 1/2" 345 5,000 345 5,000 345 5,000 1,035 15,000 1,035 15,000 1,035 15,000 379 100 83 85
2" 345 5,000 345 5,000 345 5,000 1,035 15,000 1,035 15,000 1,035 15,000 757 200 181 240

Dimensions Complete Sets
Part Number Body Size Thread Size (Female)
NBR in NPTF BSPP
FD85-1000-12-12 3/4 3/4-14 -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
