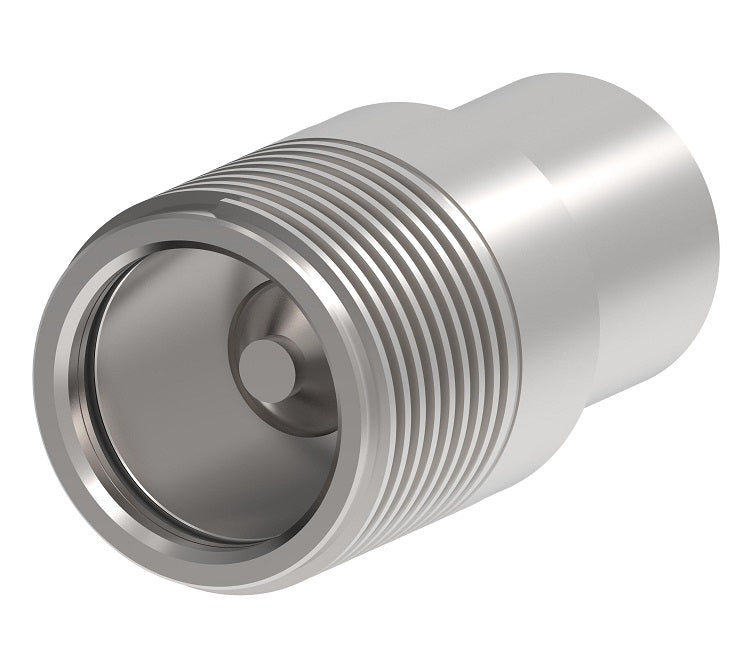

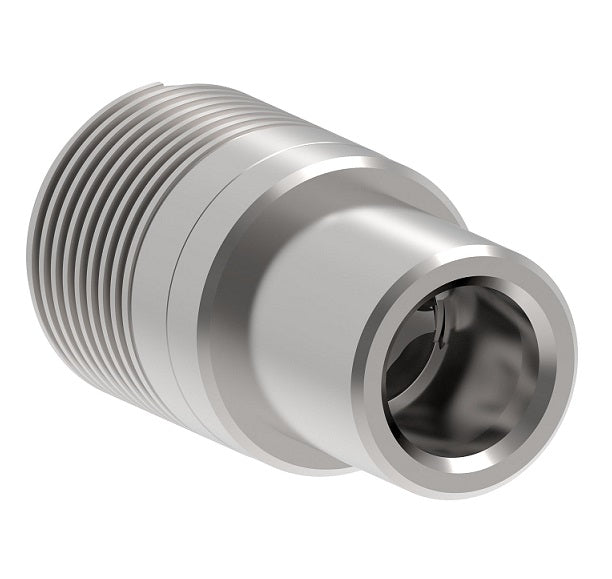

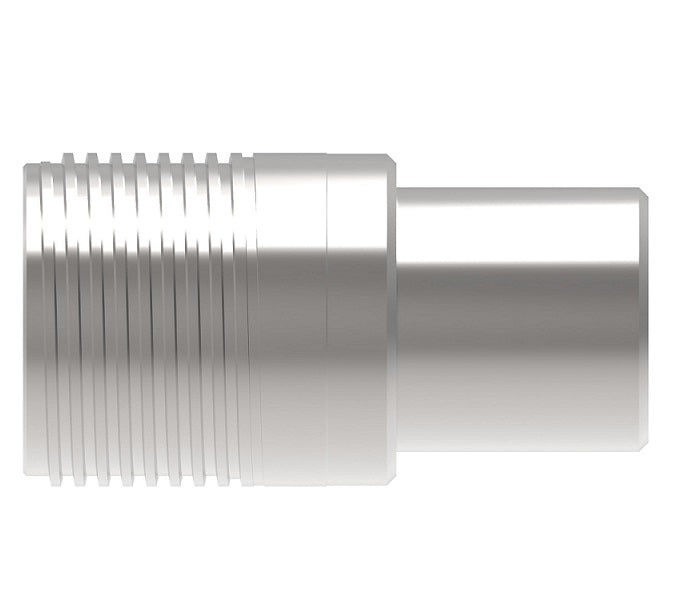

FD85-1001-16-16 Hansen® by Danfoss | Quick Disconnect Coupling | FD85 Series | 1" Female NPT x 1" Thread to Connect | Plug | NBR Seal | Steel

$128.98 - $128.98

$128.98

$128.98 - $128.98

$128.98

Hansen® by Danfoss
FD85 Series | Thread to Connect

Fluid Transfer and Hydraulic Quick Disconnect Coupling

The Danfoss Hansen FD85 Series is a thread to connect coupling most commonly used in Oil and Gas applications, but can also be found on demanding applications on both mobile and stationary equipment where operating pressures of 5,000 psi are present.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FD85-1001-16-16 Danfoss
Brand:	Hansen
Series:	FD85 Series
Shape (Orientation):	Straight
Material(s):	Zink-Plated Carbon Steel, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Thread to connect feature allows for use in high vibration and impulse applications. Connect under pressure capability up to 5,000 psi (345 bar). Wing nut and hex flat design allows for easy connection and disconnection. 3/4" design is offered in a hex nut design.
Applications & Markets:	Oilfields Offshore Drilling Construction Oil and Gas
Materials:	Standard body material: Zinc trivalent plated carbon steel. Standard seal materials: Nitrile (NBR).
Lloyd's Register Certification:	The FD85 Series carries a Lloyd's Registry Certificate for fire conditions outlined in API 16D and EUB Directive 36. These parts meet the requirements that couplings shall be capable of maintaining pressure when exposed to a 700ºC (1,300ºF) temperature for a five-minute period in connected state. Certification only applies to those assemblies where both mating parts socket/female and plug/male are Danfoss FD85 Series thread to connect couplings.

Body Size	Max. Operating Pressure						Min. Burst Pressure						Rated Flow		Fluid Loss	Air Inclusion
Body Size	Connected		Plug/Male Half		Socket/Female Half		Connected		Plug/Male Half		Socket/Female Half		Rated Flow		Fluid Loss	Air Inclusion
3/4"	345 bar	5,000 psi	345 bar	5,000 psi	345 bar	5,000 psi	1,380 bar	20,000 psi	1,380 bar	20,000 psi	1,380 bar	20,000 psi	100 L/min	26.4 gpm	10 ml-cc	10 ml-cc
1"	345 bar	5,000 psi	345 bar	5,000 psi	345 bar	5,000 psi	1,380 bar	20,000 psi	1,380 bar	20,000 psi	1,380 bar	20,000 psi	189 L/min	50 gpm	20 ml-cc	26 ml-cc
1-1/2"	345 bar	5,000 psi	345 bar	5,000 psi	345 bar	5,000 psi	1,035 bar	15,000 psi	1,035 bar	15,000 psi	1,035 bar	15,000 psi	379 L/min	100 gpm	83 ml-cc	85 ml-cc


Plug/Male (Figure 1)					Socket/Female Wing Nut Style (Figure 2)				Socket/Female Hex Nut Style (Figure 3)
FD85 Series \| Thread to Connect
Part Number	Coupling Type	Body Size	Thread	Figure	Dimensions
NBR	Coupling Type	Body Size	Thread	Figure	A	B	C	A/F	D	E	F	G	A/F
FD85-1001-12-12	Plug/Male	3/4"	3/4-14 Female NPT	1	1.39" (35.2mm)	3.27" (83.1mm)	1.74" (44.3mm)	1-1/3" (33mm)	-	-	-	-	-
FD85-1003-12-12	Socket/Female	3/4"	3/4-14 Female NPT	3	-	-	-	-	1.94" (49.2mm)	2.17" (55mm)	1.74" (44.3mm)	1.39" (35.2mm)	1-1/3" (33mm)

FD85-1001-16-16	Plug/Male	1"	1-11-1/2 Female NPT	1	1.77" (45mm)	4.17" (106mm)	2.25" (57.1mm)	1-5/8" (41mm)	-	-	-	-	-
FD85-1003-16-16	Socket/Female	1"	1-11-1/2 Female NPT	2	-	-	-	-	2.68" (68mm)	4.25" (108mm)	2.2" (56mm)	1.77" (45mm)	1 5/8" (41mm)

FD85-1001-24-24	Plug/Male	1-1/2"	1-1/2-11-1/2 Female NPT	1	2.5" (63.5mm)	5.99" (152.2mm)	3.25" (82.55mm)	2-3/8" (60mm)	-	-	-	-	-
FD85-1003-24-24	Socket/Female	1-1/2"	1-1/2-11-1/2 Female NPT	2	-	-	-	-	3.66" (93mm)	5.67" (144mm)	3.31" (84mm)	2.5" (63.5mm)	2-3/8" (60mm)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
