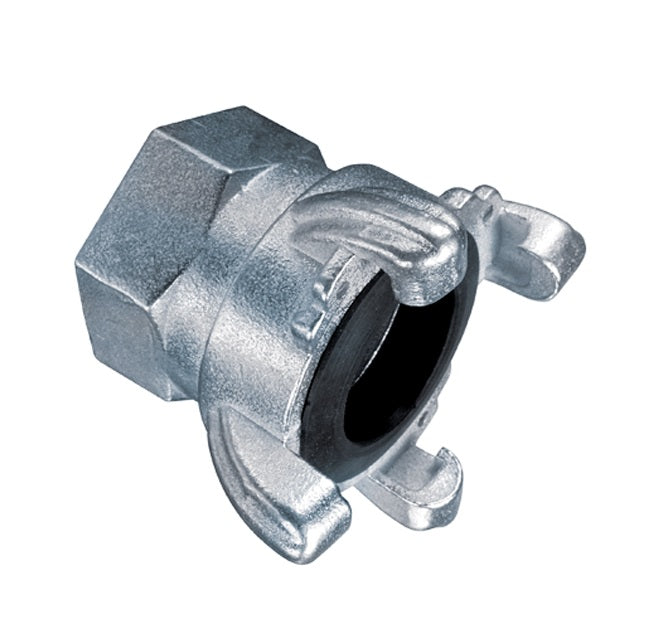

FE-125 by Kuriyama | FE Series | Female Threaded Universal Air Hose Coupling | 4 Lug | 1-1/4" Female NPT | Zinc Plated Carbon Steel

Save $8.02

$20.72

$20.72 - $20.72

$20.72

$12.70

$12.70 - $12.70

$12.70

Kuriyama of America Inc.
FE Series | Female Threaded Universal Air Hose Coupling | Zinc Plated Carbon Steel

Applications include compressed air systems and pneumatic tools.

Designed for compressed air and water service only.

Specifications for Variant SKU: FE-125 Kuriyama
Series:	FE Series
Shape (Orientation):	Straight
Ends Configuration:	2-Lug Chicago, 1-1/4in Female NPT
Material(s):	Zinc Plated Carbon Steel
Seal Material(s):	Rubber
Applicable Specs & Approvals:	MIL-Spec A-A-59553, ASTM A 27 Grade 1030

What are the Applications?

Applications include compressed air systems and pneumatic tools.
Designed for compressed air and water service only.
WARNING: Not for use in steam applications!

What are the Materials?

ASTM A27, Grade 1030 Zinc Plated Carbon Steel.
Complies with Mil-Spec A-A-59553.

Part Number	Female Thread Size (in)	Style	Gasket	PSI Rating at 70°F	Weight Each (lbs)
FE-25	1/4"	2 Lug	AHG-75	150 PSI	0.32 lbs
FE-38	3/8"	2 Lug	AHG-75	150 PSI	0.33 lbs
FE-50	1/2"	2 Lug	AHG-75	150 PSI	0.44 lbs
FE-75	3/4"	2 Lug	AHG-75	150 PSI	0.48 lbs
FE-100	1"	2 Lug	AHG-75	150 PSI	0.52 lbs
FE-125	1-1/4"	4 Lug	AHG-100	150 PSI	0.90 lbs
FE-150	1-1/2"	4 Lug	AHG-100	150 PSI	1.00 lbs
FE-200	2"	4 Lug	AHG-100	150 PSI	1.20 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
