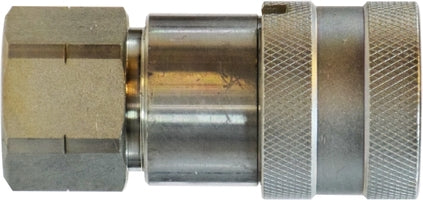

FF1234F (FF-1234-F) Midland Hydraulic Quick Disconnect - Flush Face ISO Female Pipe Coupler - 1/2" Body Size - 3/4" Female NPT - Steel

FF1234F by Midland | Hydraulic Quick Disconnect | Flush Face ISO Female Pipe Coupler | 1/2" Body Size | 3/4" Female NPT | Steel

Save $9.44 Save $9.44
$60.66
$60.66 - $60.66
$60.66
$51.22
$51.22 - $51.22
$51.22

Midland Industries
Hydraulic Quick Disconnects: Flush Face ISO (ISO 16028) - Steel

Inventory @ Manufacturers Warehouse: 339 Units
Specifications for Variant SKU: FF1234F Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male ISO-16028 Flush Face QD Interchange, 3/4in Female NPT
Material(s): Steel
Seal Material(s): Nitrile/PTFE
Features:
  • Steel construction, zinc plated trivalent finish. Hardened Nipples and sleeves and solid barstock construction for maximum resistance to damage from hydraulic and mechanical shock.
  • This Anti-Blowout Nitrile/ PTFE bonded seal is designed to prevent blow out or damage during servere service conditions.
  • Durable ball-locking mechanism assures reliable connection everytime.
  • Temp Range -65° to +250°
Interchanges:
FF Series HTMC / HTMN 74C / 74N
Flush Face ISO Female Pipe Coupler Flush Face ISO Female Pipe Plug
Part Number Body Size Female NPT Max PSI Burst Pressure Part Number Body Size Female NPT Max PSI Burst Pressure
FF14F
(FF-14-F) 		1/4" 1/4" 5,000 PSI 18,270 PSI FF14M
(FF-14-M) 		1/4" 1/4" 5,000 PSI 18,270 PSI
FF38F
(FF-38-F) 		3/8" 3/8" 4,000 PSI 18,270 PSI FF38M
(FF-38-M) 		3/8" 3/8" 4,000 PSI 18,270 PSI
FF12F
(FF-12-F) 		1/2" 1/2" 4,000 PSI 16,500 PSI FF12M
(FF-12-M) 		1/2" 1/2" 4,000 PSI 16,500 PSI
FF3812F
(FF-3812-F) 		3/8" 1/2" - - FF3812M
(FF-3812-M) 		3/8" 1/2" - -
FF1234F
(FF-1234-F) 		1/2" 3/4" - - FF1234M
(FF-1234-M) 		1/2" 3/4" - -
FF3416F
(FF-3416-F) 		3/4" 1" - - FF3416M
(FF-3416-M) 		3/4" 1" - -
FF34F
(FF-34-F) 		3/4" 3/4" 4,000 PSI 12,400 PSI FF34M
(FF-34-M) 		3/4" 3/4" 4,000 PSI 12,400 PSI
FF1F
(FF-1-F) 		1" 1" 3,000 PSI 12,600 PSI FF1M
(FF-1-M) 		1" 1" 3,000 PSI 12,600 PSI
