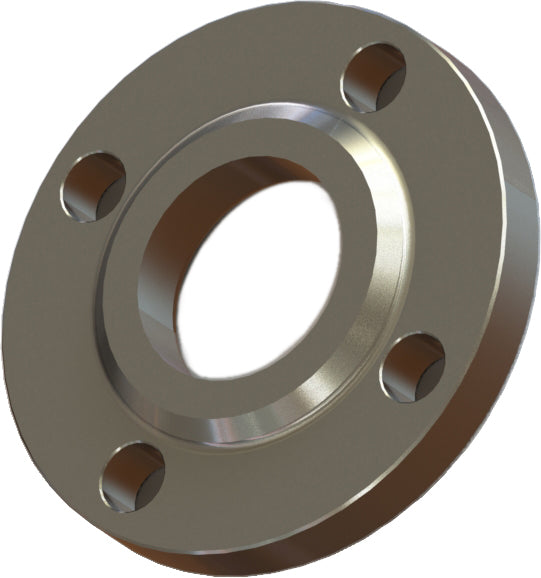

FF150SS-24 by Campbell Fittings | Floating Flange | 6" 150# Flange | 316 Stainless Steel

FF150SS-24 by Campbell Fittings | Floating Flange | 6" 150# Flange | 316 Stainless Steel

Save $342.10 Save $342.10
$855.25
$855.25 - $855.25
$855.25
$513.15
$513.15 - $513.15
$513.15

by Campbell
Crimpnology Nipple:FF150SS Floating Flange
Specifications for Variant SKU: FF150SS-24 Campbell Fittings
Series: FF150SS Series
Ends Configuration: 6in 150# Flange
Material(s): 316 Stainless Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible.
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
FF150SS-4 1"
FF150SS-6 1-1/2"
FF150SS-8 2"
FF150SS-10 2-1/2"
FF150SS-12 3"
FF150SS-16 4"
FF150SS-24 6"
FF150SS-32 8"
