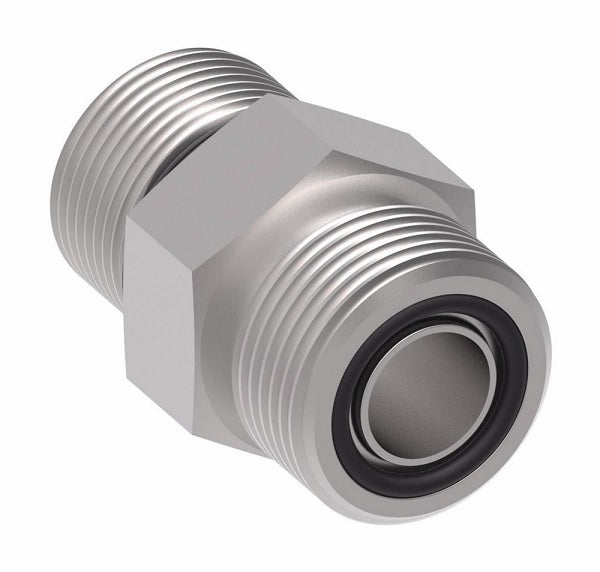

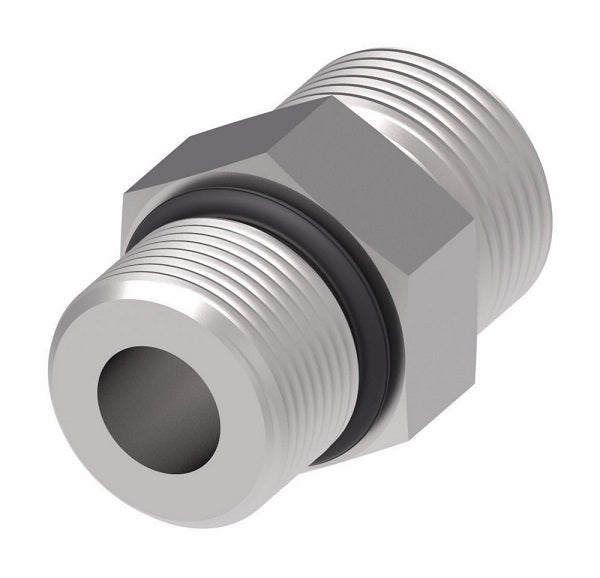

FF1852T1008S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -10 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel

FF1852T1008S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -10 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel

Name: FF1852T1008S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -10 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF1852T1008S Danfoss
Price: 4.88 USD
Availability: InStock

$4.88 - $4.88

$4.88

$4.88 - $4.88

$4.88

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF1852T1008S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male O-Ring Face Seal, 1/2in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 520120
Construction:
Buna-N O-Rings are standard.


Steel with Buna-N O-Ring Part Number	Steel with Viton O-Ring Part Number	Tube OD	Thread T1	Thread T2	A	C	Hex 1
FF1852T0403S	-	0.25"	9/16-18	3/8-24	1.07"	0.37"	0.62"
FF1852T0404S	-	0.25"	9/16-18	7/16-20	1.13"	0.43"	0.62"
FF1852T0405S	-	0.25"	9/16-18	1/2-20	1.13"	0.43"	0.62"
FF1852T0406S	-	0.25"	9/16-18	9/16-18	1.20"	0.47"	0.69"
FF1852T0408S	-	0.25"	9/16-18	3/4-16	1.32"	0.55"	0.88"
FF1852T0603S	-	0.38"	11/16-16	3/8-24	1.28"	0.37"	0.75"
FF1852T0604S	-	0.38"	11/16-16	7/16-20	1.34"	0.43"	0.75"
FF1852T0605S	-	0.38"	11/16-16	1/2-20	1.22"	0.43"	0.75"
FF1852T0606S	-	0.38"	11/16-16	9/16-18	1.26"	0.47"	0.75"
FF1852T0608S	FF1852T0608-213	0.38"	11/16-16	3/4-16	1.38"	0.55"	0.88"
FF1852T0610S	-	0.38"	11/16-16	7/8-14	1.53"	0.63"	1.00"
FF1852T0612S	-	0.38"	11/16-16	1-1/16-12	1.69"	0.73"	1.25"
FF1852T0616S	-	0.38"	11/16-16	1-5/16-12	1.73"	0.73"	1.50"
FF1852T0806S	FF1852T0806-213	0.50"	13/16-16	9/16-18	1.48"	0.47"	0.88"
FF1852T0808S	-	0.50"	13/16-16	3/4-16	1.44"	0.55"	0.88"
FF1852T0810S	-	0.50"	13/16-16	7/8-14	1.59"	0.63"	1.00"
FF1852T0812S	-	0.50"	13/16-16	1-1/16-12	1.75"	0.73"	1.25"
FF1852T0814S	-	0.50"	13/16-16	1-3/16-12	1.75"	0.73"	1.38"
FF1852T0816S	-	0.50"	13/16-16	1-5/16-12	1.79"	0.73"	1.50"
FF1852T1008S	-	0.63"	1-14	3/4-16	1.78"	0.55"	1.06"
FF1852T1010S	-	0.63"	1-14	7/8-14	1.70"	0.63"	1.06"
FF1852T1012S	-	0.63"	1-14	1-1/16-12	1.86"	0.73"	1.25"
FF1852T1206S	-	0.75"	1-3/16-12	9/16-18	1.77"	0.47"	1.25"
FF1852T1208S	-	0.75"	1-3/16-12	3/4-16	1.91"	0.55"	1.25"
FF1852T1210S	-	0.75"	1-3/16-12	7/8-14	1.99"	0.63"	1.25"
FF1852T1212S	-	0.75"	1-3/16-12	1-1/16-12	1.92"	0.73"	1.25"
FF1852T1214S	-	0.75"	1-3/16-12	1-3/16-12	1.92"	0.73"	1.38"
FF1852T1216S	-	0.75"	1-3/16-12	1-5/16-12	1.96"	0.73"	1.50"
FF1852T1608S	-	1.00"	1-7/16-12	3/4-16	1.96"	0.55"	1.50"
FF1852T1610S	-	1.00"	1-7/16-12	7/8-14	2.04"	0.63"	1.50"
FF1852T1612S	-	1.00"	1-7/16-12	1-1/16-12	2.14"	0.73"	1.50"
FF1852T1614S	-	1.00"	1-7/16-12	1-3/16-12	1.98"	0.73"	1.50"
FF1852T1616S	FF1852T1616-213	1.00"	1-7/16-12	1-5/16-12	1.98"	0.73"	1.50"
FF1852T1620S	-	1.00"	1-7/16-12	1-5/8-12	2.06"	0.73"	1.88"
FF1852T2016S	-	1.25"	1-11/16-12	1-5/16-12	2.28"	0.73"	1.75"
FF1852T2020S	-	1.25"	1-11/16-12	1-5/8-12	2.06"	0.73"	1.88"
FF1852T2024S	-	1.25"	1-11/16-12	1-7/8-12	2.13"	0.73"	2.12"
FF1852T2420S	-	1.50"	2-12	1-5/8-12	2.35"	0.73"	2.12"
FF1852T2424S	-	1.50"	2-12	1-7/8-12	2.13"	0.73"	2.12"
