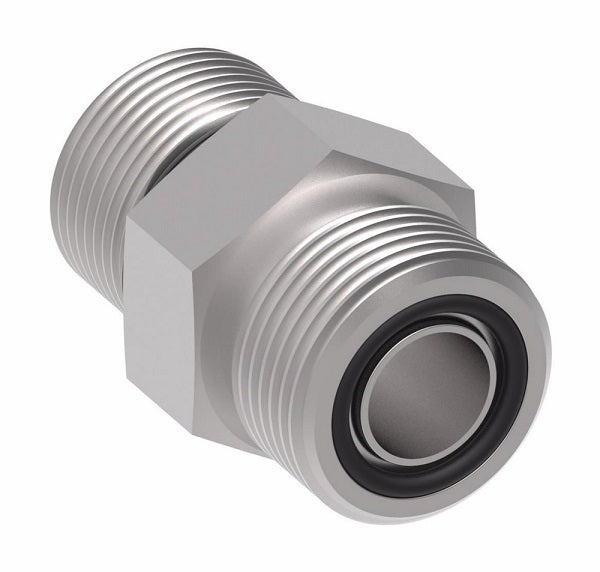

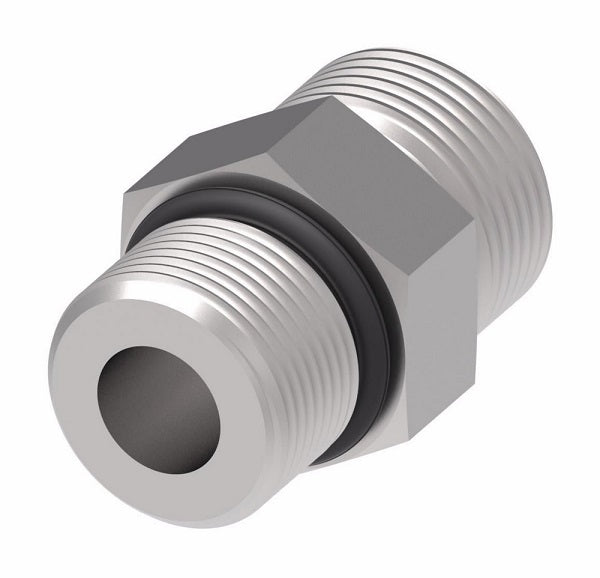

FF1852T1206S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -12 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
FF1852T1206S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -12 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
FF1852T1206S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -12 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
FF1852T1206S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -12 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel

FF1852T1206S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -12 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel

$71.06 - $71.06
$71.06
$71.06 - $71.06
$71.06

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1852T1206S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Face Seal, 3/8in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520120
Construction:
  • Buna-N O-Rings are standard.
Steel with
Buna-N O-Ring
Part Number 		Steel with
Viton O-Ring
Part Number 		Tube OD Thread T1 Thread T2 A C Hex 1
FF1852T0403S - 0.25" 9/16-18 3/8-24 1.07" 0.37" 0.62"
FF1852T0404S - 0.25" 9/16-18 7/16-20 1.13" 0.43" 0.62"
FF1852T0405S - 0.25" 9/16-18 1/2-20 1.13" 0.43" 0.62"
FF1852T0406S - 0.25" 9/16-18 9/16-18 1.20" 0.47" 0.69"
FF1852T0408S - 0.25" 9/16-18 3/4-16 1.32" 0.55" 0.88"
FF1852T0603S - 0.38" 11/16-16 3/8-24 1.28" 0.37" 0.75"
FF1852T0604S - 0.38" 11/16-16 7/16-20 1.34" 0.43" 0.75"
FF1852T0605S - 0.38" 11/16-16 1/2-20 1.22" 0.43" 0.75"
FF1852T0606S - 0.38" 11/16-16 9/16-18 1.26" 0.47" 0.75"
FF1852T0608S FF1852T0608-213 0.38" 11/16-16 3/4-16 1.38" 0.55" 0.88"
FF1852T0610S - 0.38" 11/16-16 7/8-14 1.53" 0.63" 1.00"
FF1852T0612S - 0.38" 11/16-16 1-1/16-12 1.69" 0.73" 1.25"
FF1852T0616S - 0.38" 11/16-16 1-5/16-12 1.73" 0.73" 1.50"
FF1852T0806S FF1852T0806-213 0.50" 13/16-16 9/16-18 1.48" 0.47" 0.88"
FF1852T0808S - 0.50" 13/16-16 3/4-16 1.44" 0.55" 0.88"
FF1852T0810S - 0.50" 13/16-16 7/8-14 1.59" 0.63" 1.00"
FF1852T0812S - 0.50" 13/16-16 1-1/16-12 1.75" 0.73" 1.25"
FF1852T0814S - 0.50" 13/16-16 1-3/16-12 1.75" 0.73" 1.38"
FF1852T0816S - 0.50" 13/16-16 1-5/16-12 1.79" 0.73" 1.50"
FF1852T1008S - 0.63" 1-14 3/4-16 1.78" 0.55" 1.06"
FF1852T1010S - 0.63" 1-14 7/8-14 1.70" 0.63" 1.06"
FF1852T1012S - 0.63" 1-14 1-1/16-12 1.86" 0.73" 1.25"
FF1852T1206S - 0.75" 1-3/16-12 9/16-18 1.77" 0.47" 1.25"
FF1852T1208S - 0.75" 1-3/16-12 3/4-16 1.91" 0.55" 1.25"
FF1852T1210S - 0.75" 1-3/16-12 7/8-14 1.99" 0.63" 1.25"
FF1852T1212S - 0.75" 1-3/16-12 1-1/16-12 1.92" 0.73" 1.25"
FF1852T1214S - 0.75" 1-3/16-12 1-3/16-12 1.92" 0.73" 1.38"
FF1852T1216S - 0.75" 1-3/16-12 1-5/16-12 1.96" 0.73" 1.50"
FF1852T1608S - 1.00" 1-7/16-12 3/4-16 1.96" 0.55" 1.50"
FF1852T1610S - 1.00" 1-7/16-12 7/8-14 2.04" 0.63" 1.50"
FF1852T1612S - 1.00" 1-7/16-12 1-1/16-12 2.14" 0.73" 1.50"
FF1852T1614S - 1.00" 1-7/16-12 1-3/16-12 1.98" 0.73" 1.50"
FF1852T1616S FF1852T1616-213 1.00" 1-7/16-12 1-5/16-12 1.98" 0.73" 1.50"
FF1852T1620S - 1.00" 1-7/16-12 1-5/8-12 2.06" 0.73" 1.88"
FF1852T2016S - 1.25" 1-11/16-12 1-5/16-12 2.28" 0.73" 1.75"
FF1852T2020S - 1.25" 1-11/16-12 1-5/8-12 2.06" 0.73" 1.88"
FF1852T2024S - 1.25" 1-11/16-12 1-7/8-12 2.13" 0.73" 2.12"
FF1852T2420S - 1.50" 2-12 1-5/8-12 2.35" 0.73" 2.12"
FF1852T2424S - 1.50" 2-12 1-7/8-12 2.13" 0.73" 2.12"
