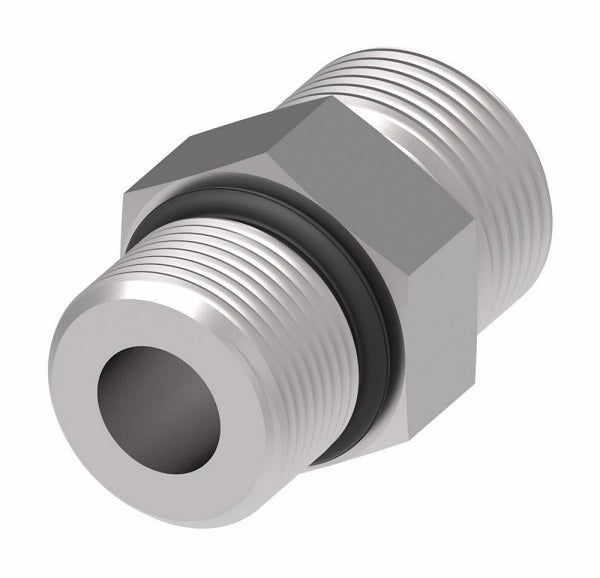

FF1852T0608-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -06 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Viton O-Ring | Steel

FF1852T0608-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -06 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Viton O-Ring | Steel

Name: FF1852T0608-213 Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -06 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Viton O-Ring | Steel
Brand: Danfoss/Eaton
SKU: FF1852T0608-213 Danfoss
Price: 9.45 USD
Availability: InStock

$9.45 - $9.45

$9.45

$9.45 - $9.45

$9.45

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF1852T0608-213 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male O-Ring Face Seal, 1/2in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 520120
Construction:
Buna-N O-Rings are standard.


Steel with Buna-N O-Ring Part Number	Steel with Viton O-Ring Part Number	Tube OD	Thread T1	Thread T2	A	C	Hex 1
FF1852T0403S	-	0.25"	9/16-18	3/8-24	1.07"	0.37"	0.62"
FF1852T0404S	-	0.25"	9/16-18	7/16-20	1.13"	0.43"	0.62"
FF1852T0405S	-	0.25"	9/16-18	1/2-20	1.13"	0.43"	0.62"
FF1852T0406S	-	0.25"	9/16-18	9/16-18	1.20"	0.47"	0.69"
FF1852T0408S	-	0.25"	9/16-18	3/4-16	1.32"	0.55"	0.88"
FF1852T0603S	-	0.38"	11/16-16	3/8-24	1.28"	0.37"	0.75"
FF1852T0604S	-	0.38"	11/16-16	7/16-20	1.34"	0.43"	0.75"
FF1852T0605S	-	0.38"	11/16-16	1/2-20	1.22"	0.43"	0.75"
FF1852T0606S	-	0.38"	11/16-16	9/16-18	1.26"	0.47"	0.75"
FF1852T0608S	FF1852T0608-213	0.38"	11/16-16	3/4-16	1.38"	0.55"	0.88"
FF1852T0610S	-	0.38"	11/16-16	7/8-14	1.53"	0.63"	1.00"
FF1852T0612S	-	0.38"	11/16-16	1-1/16-12	1.69"	0.73"	1.25"
FF1852T0616S	-	0.38"	11/16-16	1-5/16-12	1.73"	0.73"	1.50"
FF1852T0806S	FF1852T0806-213	0.50"	13/16-16	9/16-18	1.48"	0.47"	0.88"
FF1852T0808S	-	0.50"	13/16-16	3/4-16	1.44"	0.55"	0.88"
FF1852T0810S	-	0.50"	13/16-16	7/8-14	1.59"	0.63"	1.00"
FF1852T0812S	-	0.50"	13/16-16	1-1/16-12	1.75"	0.73"	1.25"
FF1852T0814S	-	0.50"	13/16-16	1-3/16-12	1.75"	0.73"	1.38"
FF1852T0816S	-	0.50"	13/16-16	1-5/16-12	1.79"	0.73"	1.50"
FF1852T1008S	-	0.63"	1-14	3/4-16	1.78"	0.55"	1.06"
FF1852T1010S	-	0.63"	1-14	7/8-14	1.70"	0.63"	1.06"
FF1852T1012S	-	0.63"	1-14	1-1/16-12	1.86"	0.73"	1.25"
FF1852T1206S	-	0.75"	1-3/16-12	9/16-18	1.77"	0.47"	1.25"
FF1852T1208S	-	0.75"	1-3/16-12	3/4-16	1.91"	0.55"	1.25"
FF1852T1210S	-	0.75"	1-3/16-12	7/8-14	1.99"	0.63"	1.25"
FF1852T1212S	-	0.75"	1-3/16-12	1-1/16-12	1.92"	0.73"	1.25"
FF1852T1214S	-	0.75"	1-3/16-12	1-3/16-12	1.92"	0.73"	1.38"
FF1852T1216S	-	0.75"	1-3/16-12	1-5/16-12	1.96"	0.73"	1.50"
FF1852T1608S	-	1.00"	1-7/16-12	3/4-16	1.96"	0.55"	1.50"
FF1852T1610S	-	1.00"	1-7/16-12	7/8-14	2.04"	0.63"	1.50"
FF1852T1612S	-	1.00"	1-7/16-12	1-1/16-12	2.14"	0.73"	1.50"
FF1852T1614S	-	1.00"	1-7/16-12	1-3/16-12	1.98"	0.73"	1.50"
FF1852T1616S	FF1852T1616-213	1.00"	1-7/16-12	1-5/16-12	1.98"	0.73"	1.50"
FF1852T1620S	-	1.00"	1-7/16-12	1-5/8-12	2.06"	0.73"	1.88"
FF1852T2016S	-	1.25"	1-11/16-12	1-5/16-12	2.28"	0.73"	1.75"
FF1852T2020S	-	1.25"	1-11/16-12	1-5/8-12	2.06"	0.73"	1.88"
FF1852T2024S	-	1.25"	1-11/16-12	1-7/8-12	2.13"	0.73"	2.12"
FF1852T2420S	-	1.50"	2-12	1-5/8-12	2.35"	0.73"	2.12"
FF1852T2424S	-	1.50"	2-12	1-7/8-12	2.13"	0.73"	2.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
