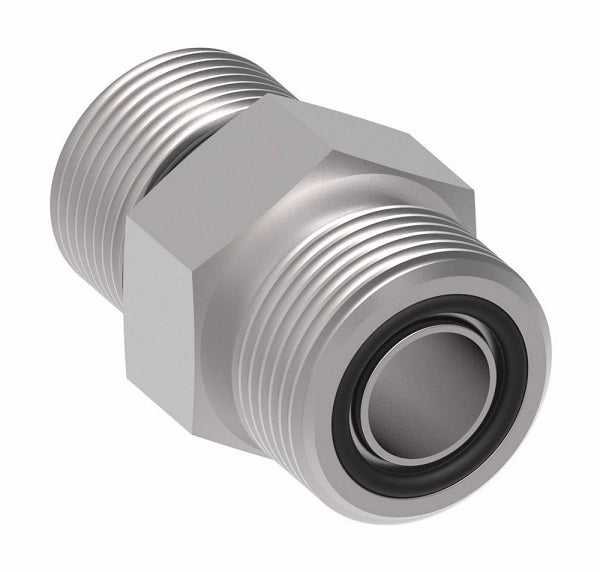

FF1852T0606S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -06 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
FF1852T0606S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -06 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
FF1852T0606S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -06 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
FF1852T0606S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -06 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel

FF1852T0606S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Adapter | -06 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel

$3.82 - $3.82
$3.82
$3.82 - $3.82
$3.82

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1852T0606S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520120
Construction:
  • Buna-N O-Rings are standard.
Steel with
Buna-N O-Ring
Part Number		 Steel with
Viton O-Ring
Part Number		 Tube OD Thread T1 Thread T2 A C Hex 1
FF1852T0403S - 0.25" 9/16-18 3/8-24 1.07" 0.37" 0.62"
FF1852T0404S - 0.25" 9/16-18 7/16-20 1.13" 0.43" 0.62"
FF1852T0405S - 0.25" 9/16-18 1/2-20 1.13" 0.43" 0.62"
FF1852T0406S - 0.25" 9/16-18 9/16-18 1.20" 0.47" 0.69"
FF1852T0408S - 0.25" 9/16-18 3/4-16 1.32" 0.55" 0.88"
FF1852T0603S - 0.38" 11/16-16 3/8-24 1.28" 0.37" 0.75"
FF1852T0604S - 0.38" 11/16-16 7/16-20 1.34" 0.43" 0.75"
FF1852T0605S - 0.38" 11/16-16 1/2-20 1.22" 0.43" 0.75"
FF1852T0606S - 0.38" 11/16-16 9/16-18 1.26" 0.47" 0.75"
FF1852T0608S FF1852T0608-213 0.38" 11/16-16 3/4-16 1.38" 0.55" 0.88"
FF1852T0610S - 0.38" 11/16-16 7/8-14 1.53" 0.63" 1.00"
FF1852T0612S - 0.38" 11/16-16 1-1/16-12 1.69" 0.73" 1.25"
FF1852T0616S - 0.38" 11/16-16 1-5/16-12 1.73" 0.73" 1.50"
FF1852T0806S FF1852T0806-213 0.50" 13/16-16 9/16-18 1.48" 0.47" 0.88"
FF1852T0808S - 0.50" 13/16-16 3/4-16 1.44" 0.55" 0.88"
FF1852T0810S - 0.50" 13/16-16 7/8-14 1.59" 0.63" 1.00"
FF1852T0812S - 0.50" 13/16-16 1-1/16-12 1.75" 0.73" 1.25"
FF1852T0814S - 0.50" 13/16-16 1-3/16-12 1.75" 0.73" 1.38"
FF1852T0816S - 0.50" 13/16-16 1-5/16-12 1.79" 0.73" 1.50"
FF1852T1008S - 0.63" 1-14 3/4-16 1.78" 0.55" 1.06"
FF1852T1010S - 0.63" 1-14 7/8-14 1.70" 0.63" 1.06"
FF1852T1012S - 0.63" 1-14 1-1/16-12 1.86" 0.73" 1.25"
FF1852T1206S - 0.75" 1-3/16-12 9/16-18 1.77" 0.47" 1.25"
FF1852T1208S - 0.75" 1-3/16-12 3/4-16 1.91" 0.55" 1.25"
FF1852T1210S - 0.75" 1-3/16-12 7/8-14 1.99" 0.63" 1.25"
FF1852T1212S - 0.75" 1-3/16-12 1-1/16-12 1.92" 0.73" 1.25"
FF1852T1214S - 0.75" 1-3/16-12 1-3/16-12 1.92" 0.73" 1.38"
FF1852T1216S - 0.75" 1-3/16-12 1-5/16-12 1.96" 0.73" 1.50"
FF1852T1608S - 1.00" 1-7/16-12 3/4-16 1.96" 0.55" 1.50"
FF1852T1610S - 1.00" 1-7/16-12 7/8-14 2.04" 0.63" 1.50"
FF1852T1612S - 1.00" 1-7/16-12 1-1/16-12 2.14" 0.73" 1.50"
FF1852T1614S - 1.00" 1-7/16-12 1-3/16-12 1.98" 0.73" 1.50"
FF1852T1616S FF1852T1616-213 1.00" 1-7/16-12 1-5/16-12 1.98" 0.73" 1.50"
FF1852T1620S - 1.00" 1-7/16-12 1-5/8-12 2.06" 0.73" 1.88"
FF1852T2016S - 1.25" 1-11/16-12 1-5/16-12 2.28" 0.73" 1.75"
FF1852T2020S - 1.25" 1-11/16-12 1-5/8-12 2.06" 0.73" 1.88"
FF1852T2024S - 1.25" 1-11/16-12 1-7/8-12 2.13" 0.73" 2.12"
FF1852T2420S - 1.50" 2-12 1-5/8-12 2.35" 0.73" 2.12"
FF1852T2424S - 1.50" 2-12 1-7/8-12 2.13" 0.73" 2.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
