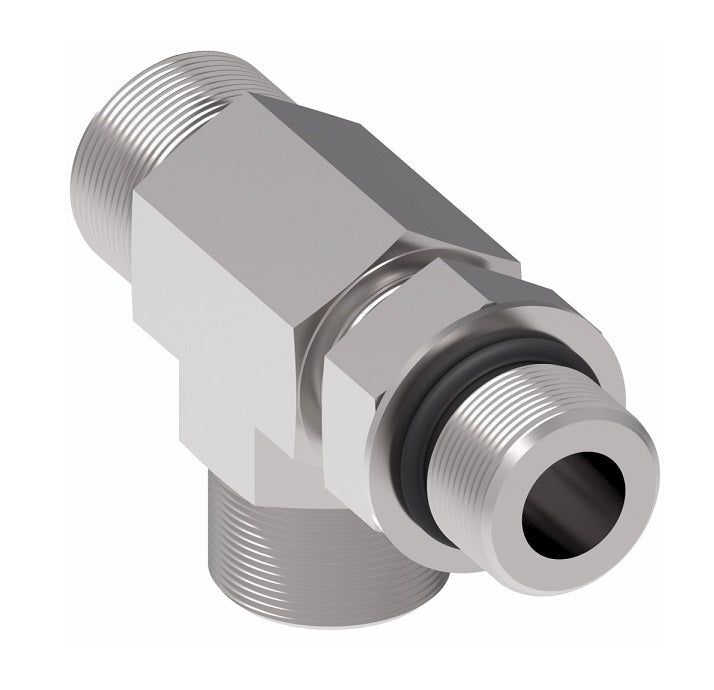

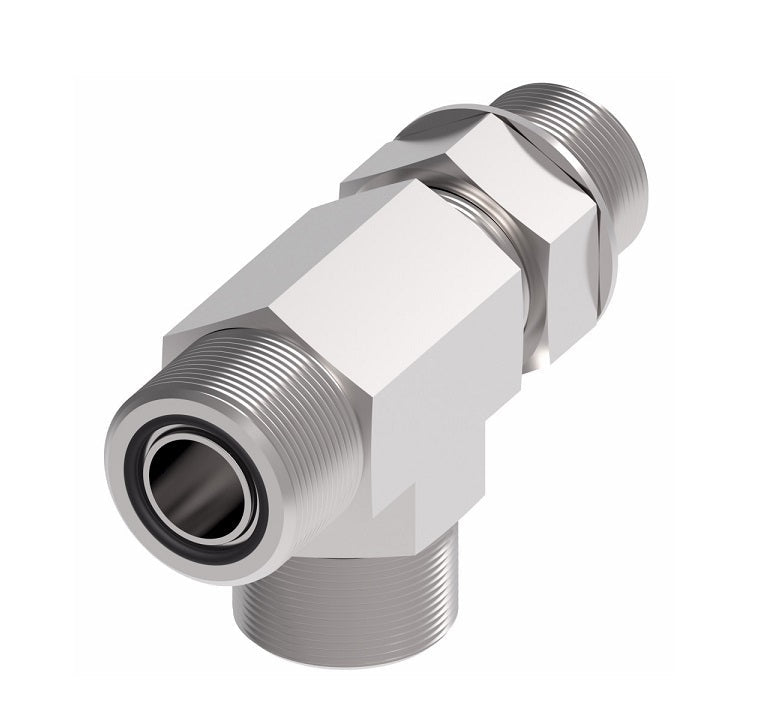

FF1865T0406S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
FF1865T0406S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
FF1865T0406S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
FF1865T0406S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel

FF1865T0406S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel

$41.70 - $41.70
$41.70
$41.70 - $41.70
$41.70

Aeroquip® by Danfoss
ORS/ORS/SAE O-Ring Boss (adj.) Run Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male SAE O-Ring Boss
Tee

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1865T0406S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/4in Male O-Ring Face Seal, 1/4in Male O-Ring Face Seal, 3/8in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520428
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 Thread T3 A B C
FF1865T0404S 0.25" 9/16-18 9/16-18 7/16-20 1.29" 0.85" 0.85"
FF1865T0406S 0.25" 9/16-18 9/16-18 9/16-18 1.45" 0.92" 0.92"
FF1865T0604S 0.38" 11/16-16 11/16-16 7/16-20 1.37" 1.17" 0.98"
FF1865T0606S 0.38" 11/16-16 11/16-16 9/16-18 1.45" 0.98" 0.98"
FF1865T0806S 0.50" 13/16-16 13/16-16 9/16-18 1.44" 1.10" 1.10"
FF1865T0808S 0.50" 13/16-16 13/16-16 3/4-16 1.60" 1.10" 1.10"
FF1865T0812S 0.50" 13/16-16 13/16-16 1-1/16-12 2.17" 1.32" 1.32"
FF1865T1010S 0.63" 1-14 1-14 7/8-14 1.97" 1.31" 1.31"
FF1865T1012S 0.63" 1-14 1-14 1-1/16-12 2.17" 1.41" 1.41"
FF1865T1212S 0.75" 1-3/16-12 1-3/16-12 1-1/16-12 2.17" 1.47" 1.47"
FF1865T1220S 0.75" 1-3/16-12 1-3/16-12 1-5/8-12 2.45" 1.74" 1.74"
FF1865T1616S 1.00" 1-7/16-12 1-7/16-12 1-5/16-12 2.35" 1.64" 1.64"
FF1865T2020S 1.25" 1-11/16-12 1-11/16-12 1-5/8-12 2.45" 1.76" 1.76"
FF1865T2424S 1.50" 2-12 2-12 1-7/8-12 2.59" 1.92" 1.92"
