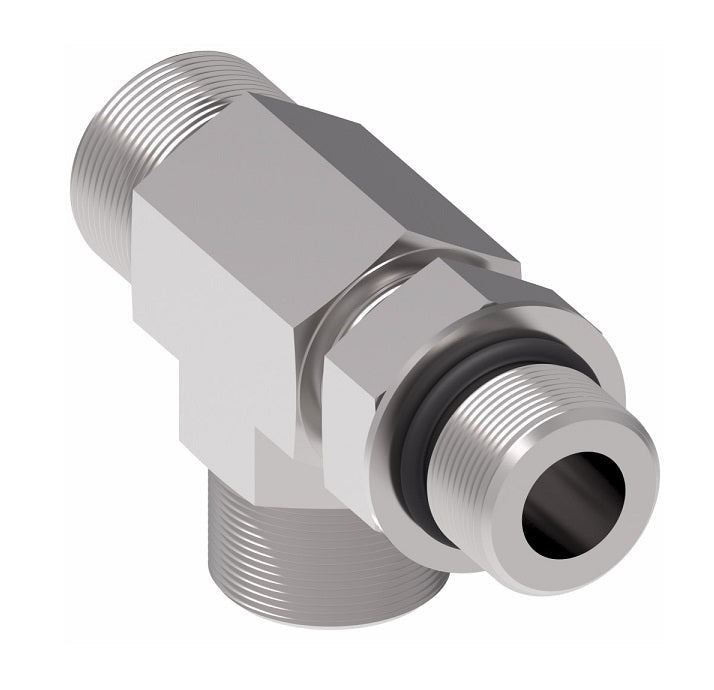

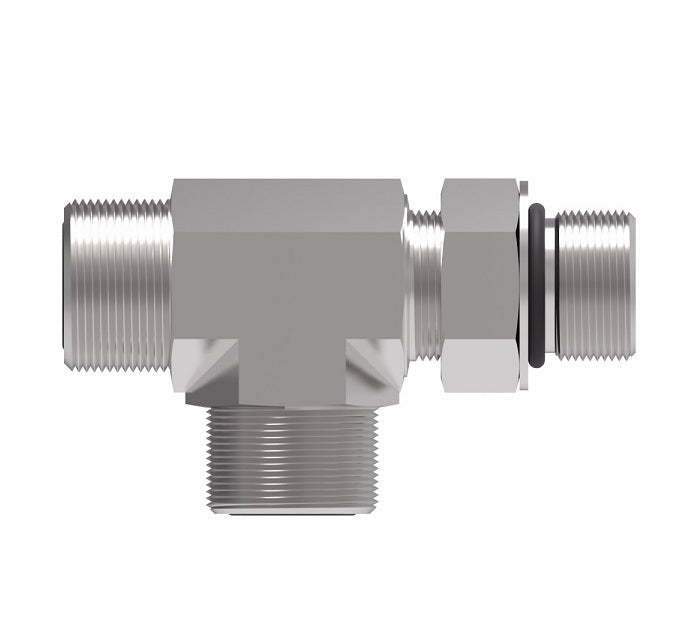

FF1865T0604S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -04 Male SAE O-Ring Boss | Steel

FF1865T0604S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -04 Male SAE O-Ring Boss | Steel

Name: FF1865T0604S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal x -04 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF1865T0604S Danfoss
Price: 23.24 USD
Availability: InStock

$23.24 - $23.24

$23.24

$23.24 - $23.24

$23.24

Aeroquip® by Danfoss
ORS/ORS/SAE O-Ring Boss (adj.) Run Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male SAE O-Ring Boss
Tee

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF1865T0604S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Face Seal, 1/4in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 520428
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	Thread T3	A	B	C
FF1865T0404S	0.25"	9/16-18	9/16-18	7/16-20	1.29"	0.85"	0.85"
FF1865T0406S	0.25"	9/16-18	9/16-18	9/16-18	1.45"	0.92"	0.92"
FF1865T0604S	0.38"	11/16-16	11/16-16	7/16-20	1.37"	1.17"	0.98"
FF1865T0606S	0.38"	11/16-16	11/16-16	9/16-18	1.45"	0.98"	0.98"
FF1865T0806S	0.50"	13/16-16	13/16-16	9/16-18	1.44"	1.10"	1.10"
FF1865T0808S	0.50"	13/16-16	13/16-16	3/4-16	1.60"	1.10"	1.10"
FF1865T0812S	0.50"	13/16-16	13/16-16	1-1/16-12	2.17"	1.32"	1.32"
FF1865T1010S	0.63"	1-14	1-14	7/8-14	1.97"	1.31"	1.31"
FF1865T1012S	0.63"	1-14	1-14	1-1/16-12	2.17"	1.41"	1.41"
FF1865T1212S	0.75"	1-3/16-12	1-3/16-12	1-1/16-12	2.17"	1.47"	1.47"
FF1865T1220S	0.75"	1-3/16-12	1-3/16-12	1-5/8-12	2.45"	1.74"	1.74"
FF1865T1616S	1.00"	1-7/16-12	1-7/16-12	1-5/16-12	2.35"	1.64"	1.64"
FF1865T2020S	1.25"	1-11/16-12	1-11/16-12	1-5/8-12	2.45"	1.76"	1.76"
FF1865T2424S	1.50"	2-12	2-12	1-7/8-12	2.59"	1.92"	1.92"
