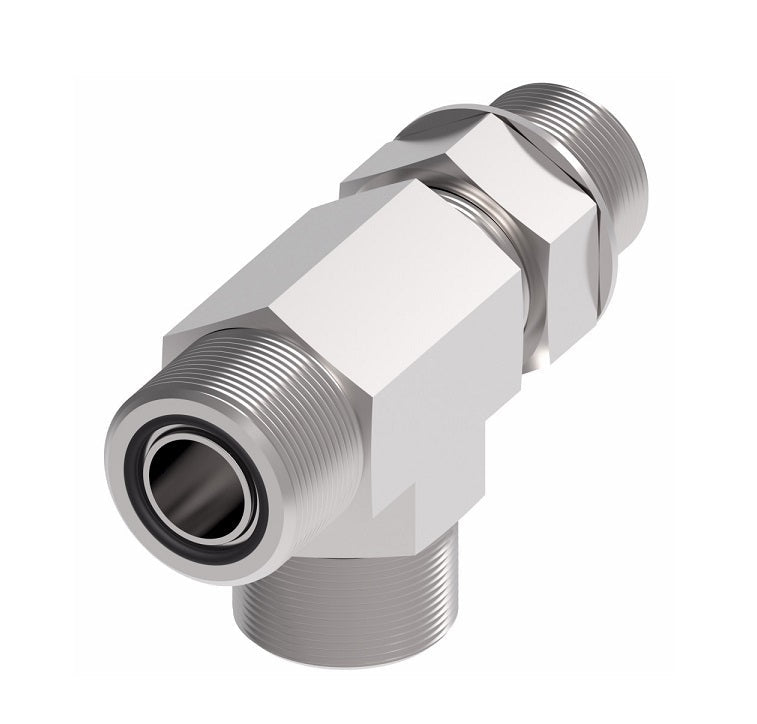

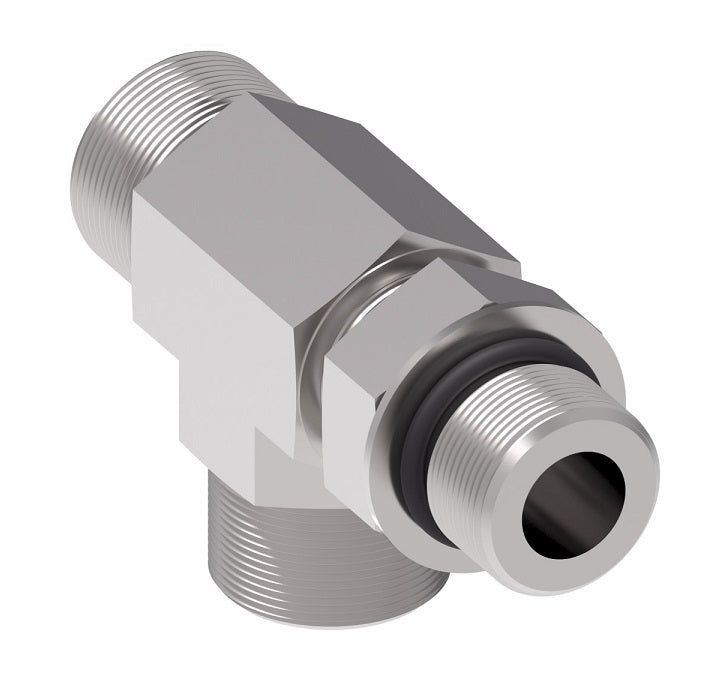

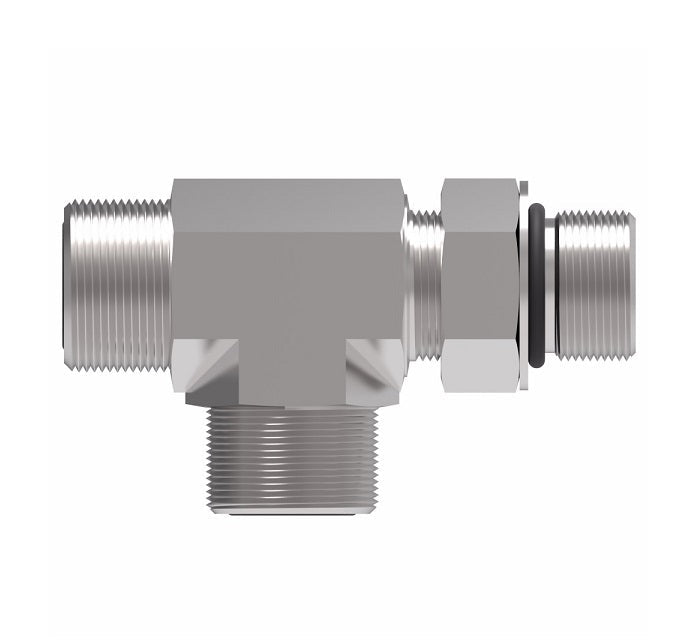

FF1865T0808S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel

FF1865T0808S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel

Name: FF1865T0808S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal x -08 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF1865T0808S Danfoss
Price: 10.44 USD
Availability: InStock

$10.44 - $10.44

$10.44

$10.44 - $10.44

$10.44

Aeroquip® by Danfoss
ORS/ORS/SAE O-Ring Boss (adj.) Run Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male SAE O-Ring Boss
Tee

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF1865T0808S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/2in Male O-Ring Face Seal, 1/2in Male O-Ring Face Seal, 1/2in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 520428
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	Thread T3	A	B	C
FF1865T0404S	0.25"	9/16-18	9/16-18	7/16-20	1.29"	0.85"	0.85"
FF1865T0406S	0.25"	9/16-18	9/16-18	9/16-18	1.45"	0.92"	0.92"
FF1865T0604S	0.38"	11/16-16	11/16-16	7/16-20	1.37"	1.17"	0.98"
FF1865T0606S	0.38"	11/16-16	11/16-16	9/16-18	1.45"	0.98"	0.98"
FF1865T0806S	0.50"	13/16-16	13/16-16	9/16-18	1.44"	1.10"	1.10"
FF1865T0808S	0.50"	13/16-16	13/16-16	3/4-16	1.60"	1.10"	1.10"
FF1865T0812S	0.50"	13/16-16	13/16-16	1-1/16-12	2.17"	1.32"	1.32"
FF1865T1010S	0.63"	1-14	1-14	7/8-14	1.97"	1.31"	1.31"
FF1865T1012S	0.63"	1-14	1-14	1-1/16-12	2.17"	1.41"	1.41"
FF1865T1212S	0.75"	1-3/16-12	1-3/16-12	1-1/16-12	2.17"	1.47"	1.47"
FF1865T1220S	0.75"	1-3/16-12	1-3/16-12	1-5/8-12	2.45"	1.74"	1.74"
FF1865T1616S	1.00"	1-7/16-12	1-7/16-12	1-5/16-12	2.35"	1.64"	1.64"
FF1865T2020S	1.25"	1-11/16-12	1-11/16-12	1-5/8-12	2.45"	1.76"	1.76"
FF1865T2424S	1.50"	2-12	2-12	1-7/8-12	2.59"	1.92"	1.92"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
