Adapters & More  > All Adapters  > American Thread Adapters

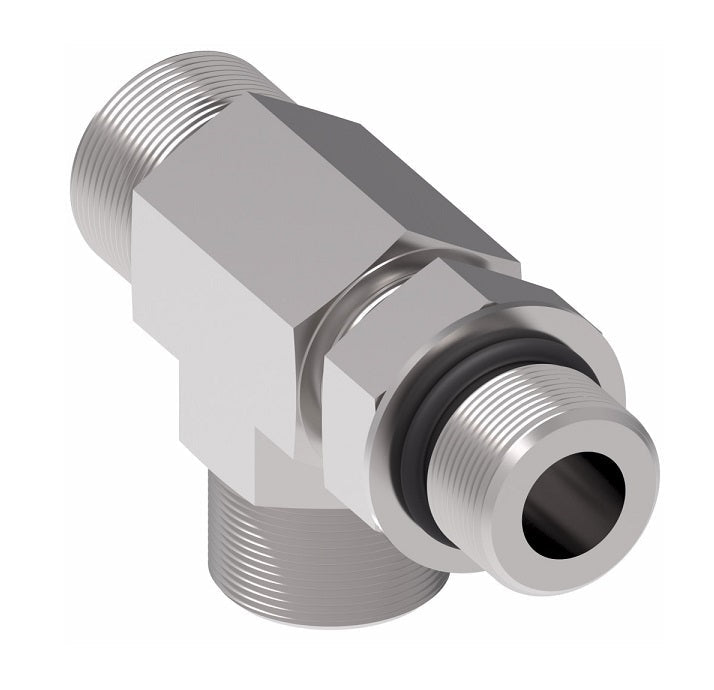

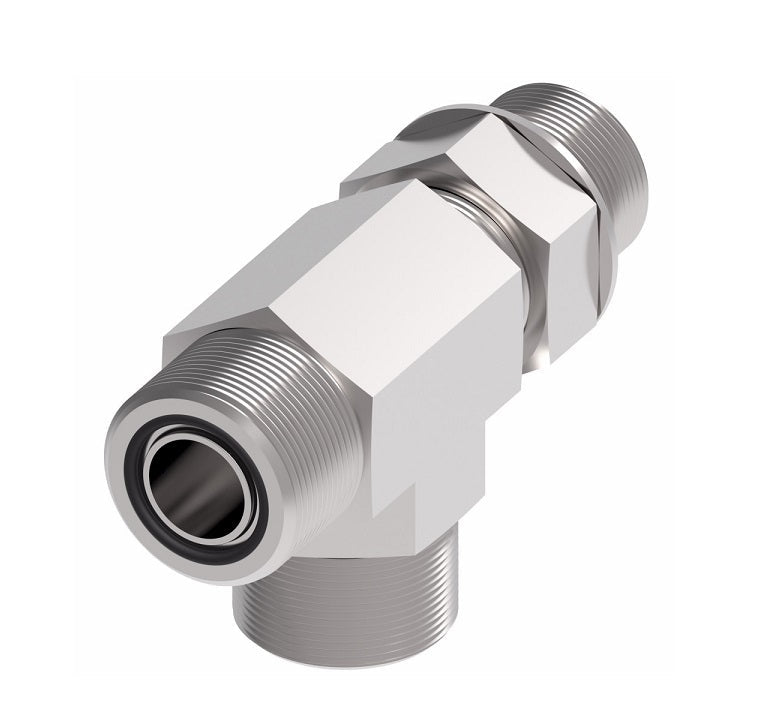

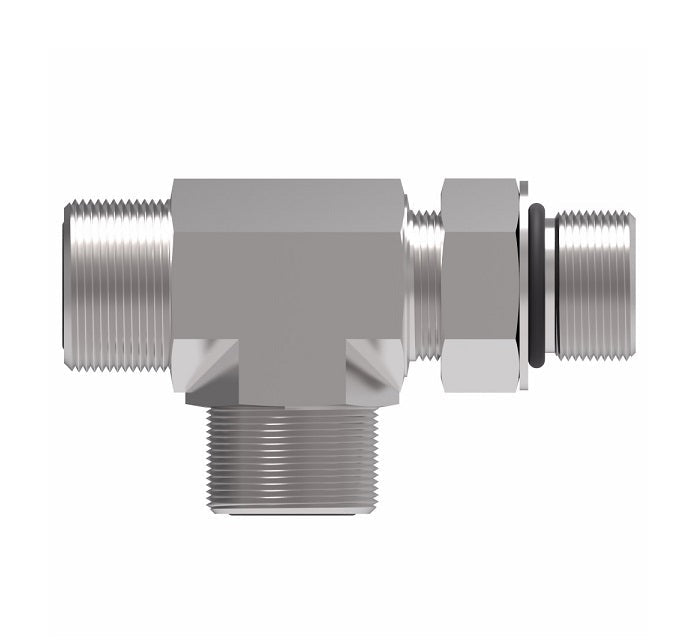

FF1865T0812S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel

FF1865T0812S Aeroquip by Danfoss | ORS/ORS/SAE O-Ring Boss (adj.) Run Tee Adapter | -08 Male O-Ring Face Seal x -08 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel

$35.90

Aeroquip® by Danfoss
ORS/ORS/SAE O-Ring Boss (adj.) Run Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male SAE O-Ring Boss
Tee

(Formerly Eaton Aeroquip)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FF1865T0812S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/2in Male O-Ring Face Seal, 1/2in Male O-Ring Face Seal, 3/4in Male O-Ring Boss
Material(s): Steel
Specifications:
  • Ref. SAE 520428
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 Thread T3 A B C
FF1865T0404S 0.25" 9/16-18 9/16-18 7/16-20 1.29" 0.85" 0.85"
FF1865T0406S 0.25" 9/16-18 9/16-18 9/16-18 1.45" 0.92" 0.92"
FF1865T0604S 0.38" 11/16-16 11/16-16 7/16-20 1.37" 1.17" 0.98"
FF1865T0606S 0.38" 11/16-16 11/16-16 9/16-18 1.45" 0.98" 0.98"
FF1865T0806S 0.50" 13/16-16 13/16-16 9/16-18 1.44" 1.10" 1.10"
FF1865T0808S 0.50" 13/16-16 13/16-16 3/4-16 1.60" 1.10" 1.10"
FF1865T0812S 0.50" 13/16-16 13/16-16 1-1/16-12 2.17" 1.32" 1.32"
FF1865T1010S 0.63" 1-14 1-14 7/8-14 1.97" 1.31" 1.31"
FF1865T1012S 0.63" 1-14 1-14 1-1/16-12 2.17" 1.41" 1.41"
FF1865T1212S 0.75" 1-3/16-12 1-3/16-12 1-1/16-12 2.17" 1.47" 1.47"
FF1865T1220S 0.75" 1-3/16-12 1-3/16-12 1-5/8-12 2.45" 1.74" 1.74"
FF1865T1616S 1.00" 1-7/16-12 1-7/16-12 1-5/16-12 2.35" 1.64" 1.64"
FF1865T2020S 1.25" 1-11/16-12 1-11/16-12 1-5/8-12 2.45" 1.76" 1.76"
FF1865T2424S 1.50" 2-12 2-12 1-7/8-12 2.59" 1.92" 1.92"
