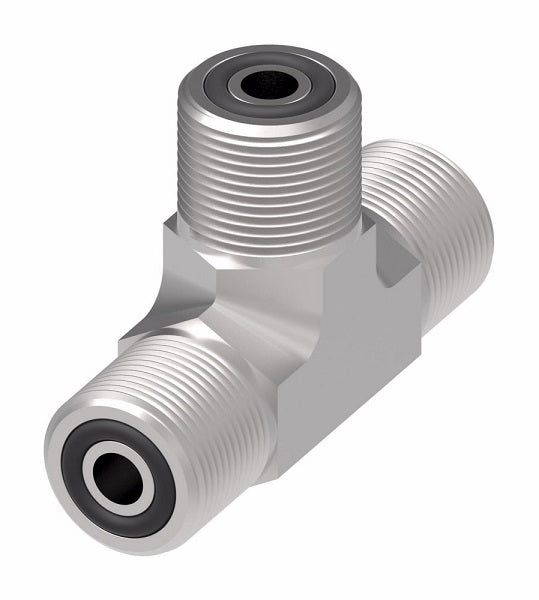

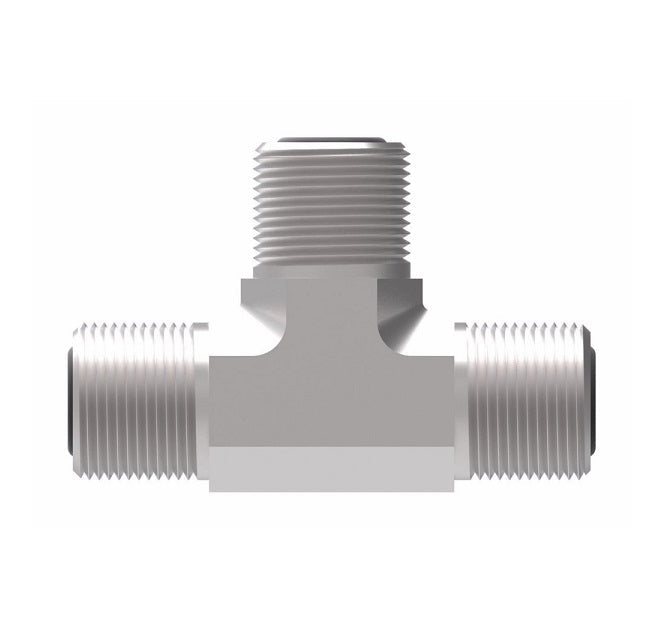

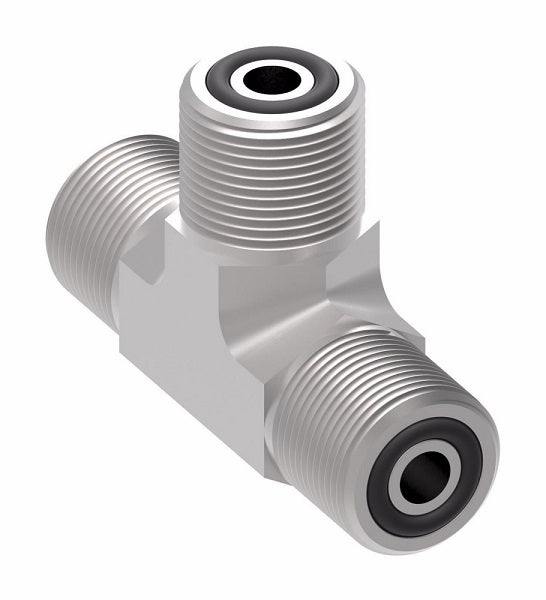

FF1898T1010S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Tee Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal | Steel

FF1898T1010S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Tee Adapter | -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal x -10 Male O-Ring Face Seal | Steel

$46.48 - $46.48
$46.48
$46.48 - $46.48
$46.48

Aeroquip® by Danfoss
ORS Male/ORS Male/ORS Male Tee Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male O-Ring Face Seal

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1898T1010S Danfoss
Shape (Orientation): Tee
Ends Configuration: 5/8in Male O-Ring Face Seal, 5/8in Male O-Ring Face Seal, 5/8in Male O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520401
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 Thread T3 A B
FF1898T0404S 0.25" 9/16-18 9/16-18 9/16-18 1.70" 0.85"
FF1898T0606S 0.38" 11/16-16 11/16-16 11/16-16 1.96" 0.98"
FF1898T0608S 0.38" 11/16-16 11/16-16 13/16-16 2.08" 1.10"
FF1898T0808S 0.50" 13/16-16 13/16-16 13/16-16 2.20" 1.10"
FF1898T1010S 0.63" 1-14 1-14 1-14 2.62" 1.31"
FF1898T1212S 0.75" 1-3/16-12 1-3/16-12 1-3/16-12 2.94" 1.47"
FF1898T1216S 0.75" 1-3/16-12 1-3/16-12 1-7/16-12 3.24" 1.76"
FF1898T1616S 1.00" 1-7/16-12 1-7/16-12 1-7/16-12 3.28" 1.64"
FF1898T2016S 1.25" 1-11/16-12 1-11/16-12 1-7/16-12 3.52" 1.76"
FF1898T2020S 1.25" 1-11/16-12 1-11/16-12 1-11/16-12 3.52" 1.76"
FF1898T2424S 1.50" 2-12 2-12 2-12 3.84" 1.92"
