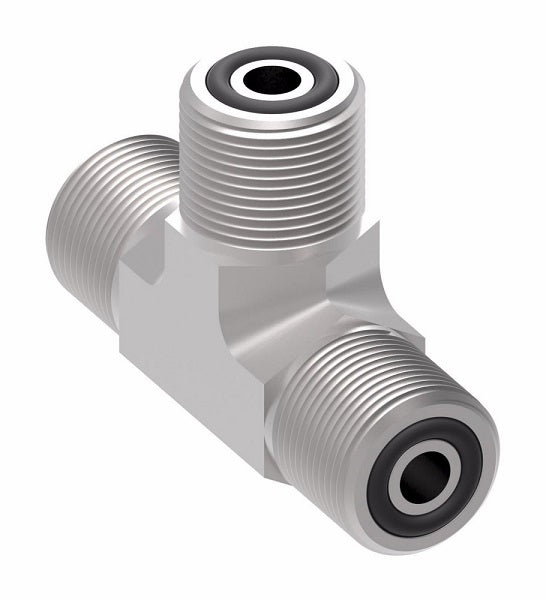

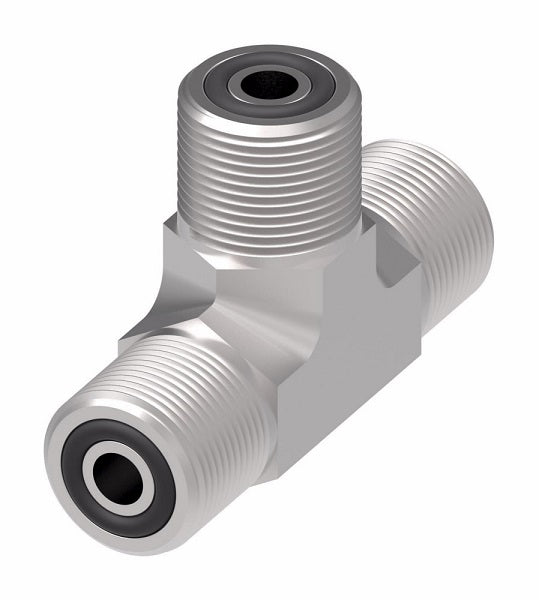

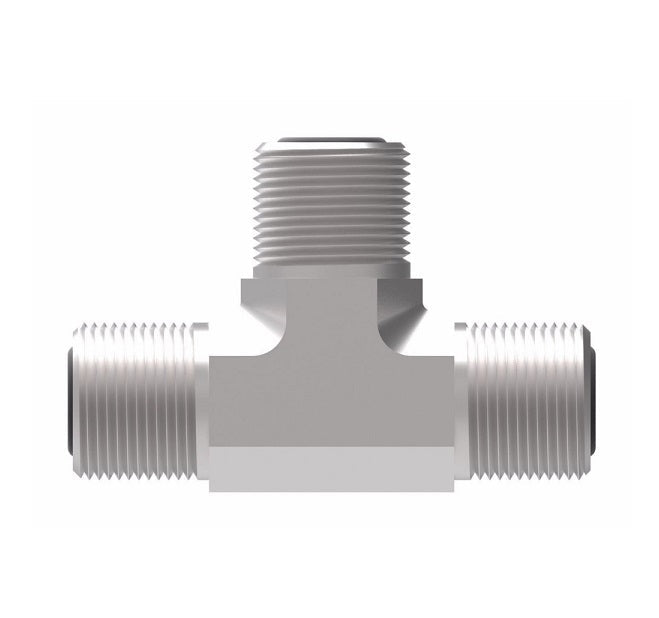

FF1898T2016S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Tee Adapter | -20 Male O-Ring Face Seal x -20 Male O-Ring Face Seal x -16 Male O-Ring Face Seal (Branch) | Steel
FF1898T2016S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Tee Adapter | -20 Male O-Ring Face Seal x -20 Male O-Ring Face Seal x -16 Male O-Ring Face Seal (Branch) | Steel
FF1898T2016S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Tee Adapter | -20 Male O-Ring Face Seal x -20 Male O-Ring Face Seal x -16 Male O-Ring Face Seal (Branch) | Steel
FF1898T2016S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Tee Adapter | -20 Male O-Ring Face Seal x -20 Male O-Ring Face Seal x -16 Male O-Ring Face Seal (Branch) | Steel

FF1898T2016S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Male Tee Adapter | -20 Male O-Ring Face Seal x -20 Male O-Ring Face Seal x -16 Male O-Ring Face Seal (Branch) | Steel

$182.19 - $182.19
$182.19
$182.19 - $182.19
$182.19

Aeroquip® by Danfoss
ORS Male/ORS Male/ORS Male Tee Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal x Male O-Ring Face Seal

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1898T2016S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1-1/4in Male O-Ring Face Seal, 1-1/4in Male O-Ring Face Seal, 1in Male O-Ring Face Seal
Material(s): Steel
Specifications:
  • Ref. SAE 520401
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 Thread T3 A B
FF1898T0404S 0.25" 9/16-18 9/16-18 9/16-18 1.70" 0.85"
FF1898T0606S 0.38" 11/16-16 11/16-16 11/16-16 1.96" 0.98"
FF1898T0608S 0.38" 11/16-16 11/16-16 13/16-16 2.08" 1.10"
FF1898T0808S 0.50" 13/16-16 13/16-16 13/16-16 2.20" 1.10"
FF1898T1010S 0.63" 1-14 1-14 1-14 2.62" 1.31"
FF1898T1212S 0.75" 1-3/16-12 1-3/16-12 1-3/16-12 2.94" 1.47"
FF1898T1216S 0.75" 1-3/16-12 1-3/16-12 1-7/16-12 3.24" 1.76"
FF1898T1616S 1.00" 1-7/16-12 1-7/16-12 1-7/16-12 3.28" 1.64"
FF1898T2016S 1.25" 1-11/16-12 1-11/16-12 1-7/16-12 3.52" 1.76"
FF1898T2020S 1.25" 1-11/16-12 1-11/16-12 1-11/16-12 3.52" 1.76"
FF1898T2424S 1.50" 2-12 2-12 2-12 3.84" 1.92"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
