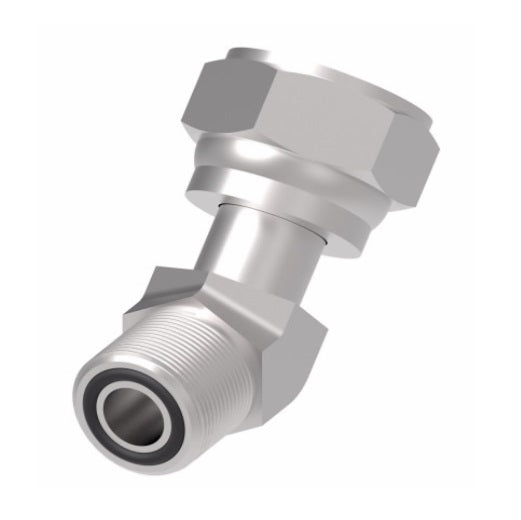

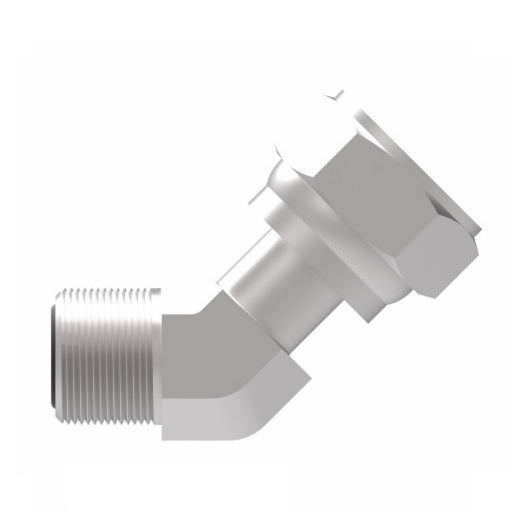

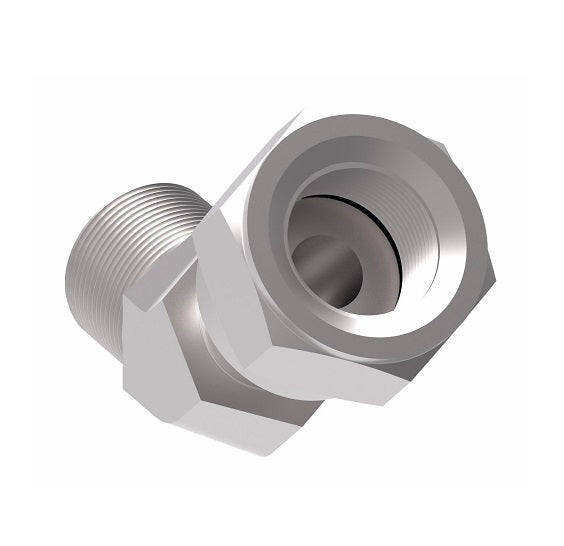

FF2133T0808S Aeroquip by Danfoss | ORS Male/ORS Female 45° Elbow Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal | Steel
FF2133T0808S Aeroquip by Danfoss | ORS Male/ORS Female 45° Elbow Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal | Steel
FF2133T0808S Aeroquip by Danfoss | ORS Male/ORS Female 45° Elbow Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal | Steel
FF2133T0808S Aeroquip by Danfoss | ORS Male/ORS Female 45° Elbow Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal | Steel

FF2133T0808S Aeroquip by Danfoss | ORS Male/ORS Female 45° Elbow Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal | Steel

$16.40 - $16.40
$16.40
$16.40 - $16.40
$16.40

Aeroquip® by Danfoss
ORS Male/ORS Female Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal
45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF2133T0808S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Male O-Ring Face Seal, 1/2in Female O-Ring Face Seal
Material(s): Steel
Construction:
  • Buna-N O-Rings are standard.
Steel Part Number Tube OD Thread T1 Thread T2 A B
FF2133T0606S 0.38" 11/16-16 11/16-16 0.74" 1.06"
FF2133T0808S 0.50" 13/16-16 13/16-16 0.80" 1.40"
FF2133T1010S 0.63" 1-14 1-14 0.92" 1.52"
FF2133T1212S 0.75" 1-3/16-12 1-3/16-12 1.02" 1.67"
FF2133T1616S 1.00" 1-7/16-12 1-7/16-12 1.18" 1.69"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
