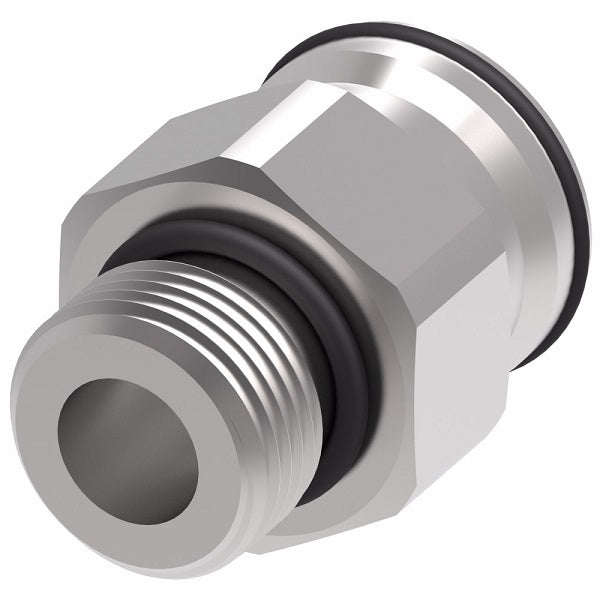

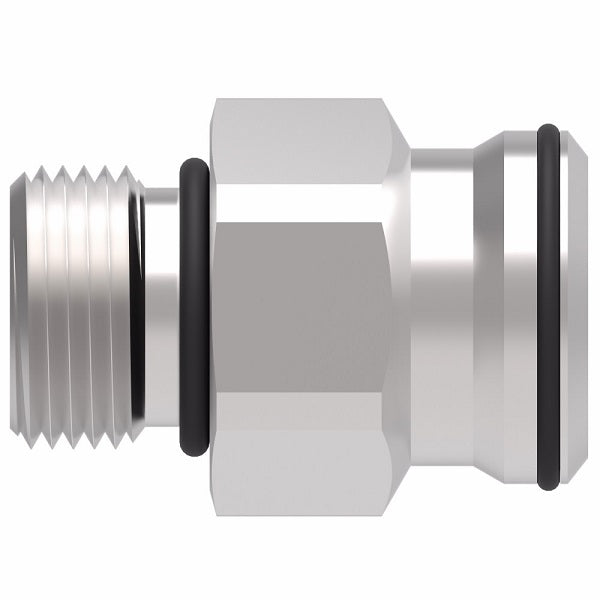

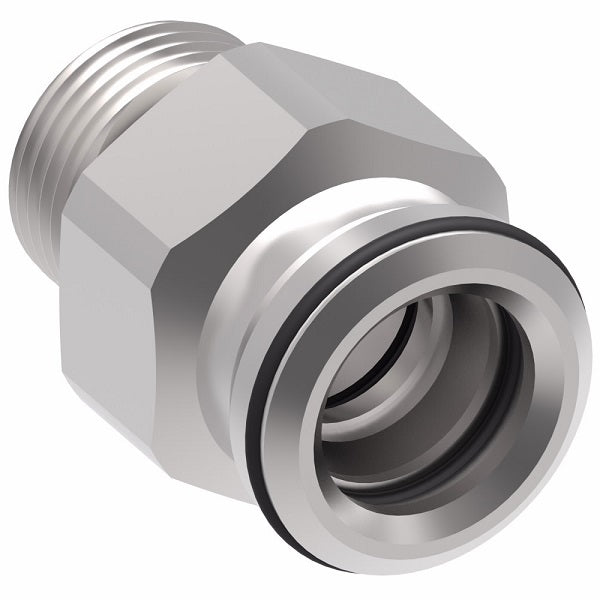

FF3042-0606S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) Adapter (FF) | -06 Male SAE O-Ring Boss x -06 Female STC | Steel
FF3042-0606S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) Adapter (FF) | -06 Male SAE O-Ring Boss x -06 Female STC | Steel
FF3042-0606S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) Adapter (FF) | -06 Male SAE O-Ring Boss x -06 Female STC | Steel
FF3042-0606S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) Adapter (FF) | -06 Male SAE O-Ring Boss x -06 Female STC | Steel

FF3042-0606S Aeroquip by Danfoss | Male SAE ORB to Female STC (Snap to Connect) Adapter (FF) | -06 Male SAE O-Ring Boss x -06 Female STC | Steel

$19.80 - $19.80
$19.80
$19.80 - $19.80
$19.80

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male SAE ORB to Female STC (Snap to Connect) Adapter (FF) - Straight

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3042-0606S Danfoss
Ends Configuration: 3/8in Male O-Ring Boss, 3/8in Female STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 A B DIA E Hex "T" Thread STC Release Tool
FF3042-0406S 1.18" 0.36" 0.67" 0.17" 0.75" 7/16-20 2A FF90213-06
FF3042-0506S - - - - - - FF90213-06
FF3042-0606S 1.13" 0.39" 0.67" 0.30" 0.75" 9/16-18 2A FF90213-06
FF3042-0608S 1.33" 0.39" 0.80" 0.30" 0.83" 9/16-18 2A FF90213-08
FF3042-0806S 1.18" 0.44" 0.67" 0.39" 0.98" 3/4-16 2A FF90213-06
FF3042-0808S 1.36" 0.44" 0.80" 0.39" 0.94" 3/14-16 2A FF90213-08
FF3042-0810S 1.44" 0.44" 0.96" 0.39" 1.00" 3/4-16 2A FF90213-10
FF3042-1008S 1.38" 0.50" 0.80" 0.48" 1.06" 7/8-14 2A FF90213-08
FF3042-1010S 1.50" 0.50" 0.96" 0.48" 1.06" 7/8-14 2A FF90213-10
FF3042-1012S 1.76" 0.50" 1.23" 0.48" 1.26" 7/8-14 2A FF90213-12
FF3042-1210S 1.59" 0.59" 0.96" 0.61" 1.26" 1-1/16-12 2A FF90213-10
FF3042-1212S 1.85" 0.59" 1.23" 0.61" 1.26" 1-1/16-12 2A FF90213-12
FF3042-1616S 2.00" 0.59" 1.61" 0.84" 1.62" 1-5/16-12 2A FF90213-01-16S
