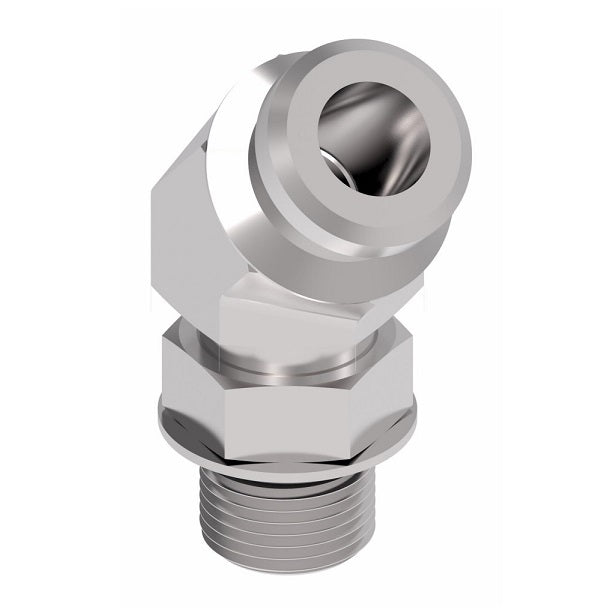

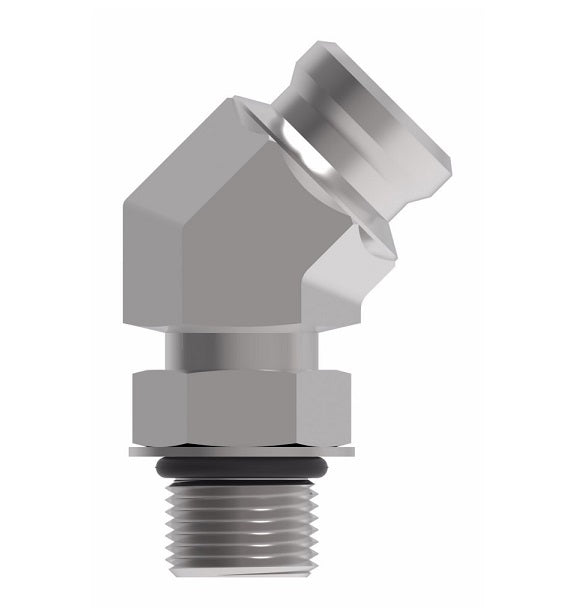

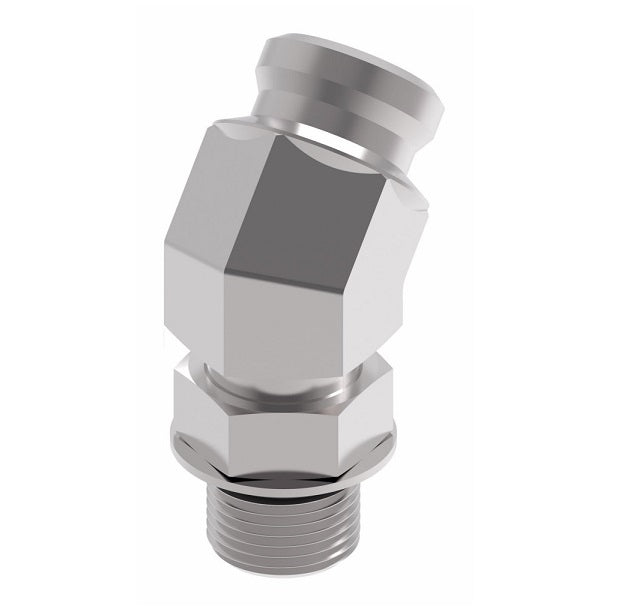

FF3065-1606S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | M16 Male Metric O-Ring Boss x -06 Female STC | Steel
FF3065-1606S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | M16 Male Metric O-Ring Boss x -06 Female STC | Steel
FF3065-1606S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | M16 Male Metric O-Ring Boss x -06 Female STC | Steel
FF3065-1606S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | M16 Male Metric O-Ring Boss x -06 Female STC | Steel

FF3065-1606S Aeroquip by Danfoss | Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) 45° Elbow Adapter (FF) | M16 Male Metric O-Ring Boss x -06 Female STC | Steel

$48.11 - $48.11
$48.11
$48.11 - $48.11
$48.11

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male ISO 6149 ORB (S-Series) to Female STC (Snap to Connect) Adapter (FF) - 45° Elbow

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3065-1606S Danfoss
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 A B DIA E Hex "T"
Thread		 STC
Release Tool
FF3065-1606S 0.74" 1.32" 0.67" 0.28" 0.75" M16x1.5 6g FF90213-06
FF3065-1808S 0.85" 1.46" 0.80" 0.36" 0.87" M18x1.5 6g FF90213-08
