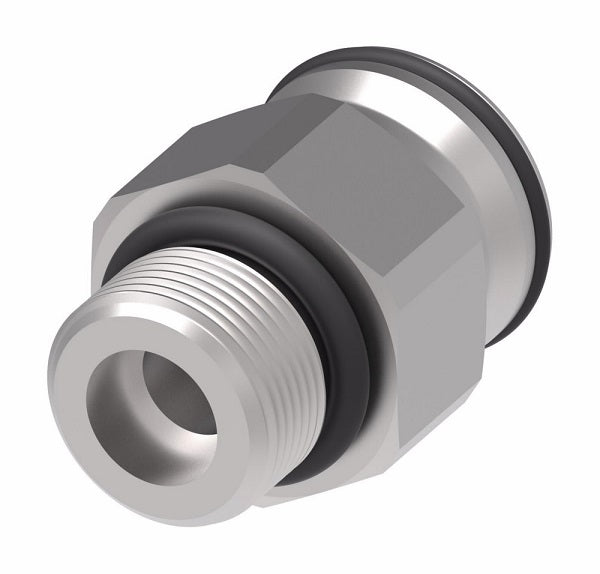

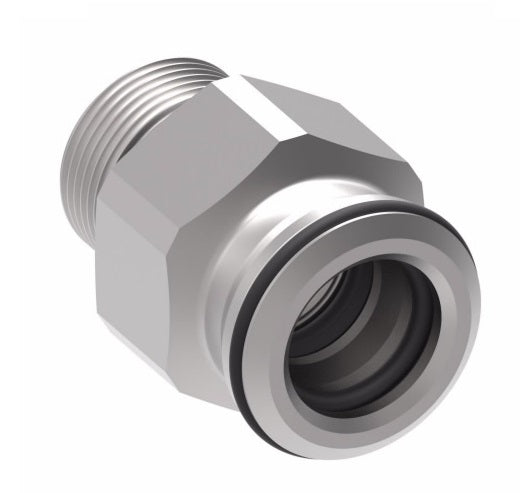

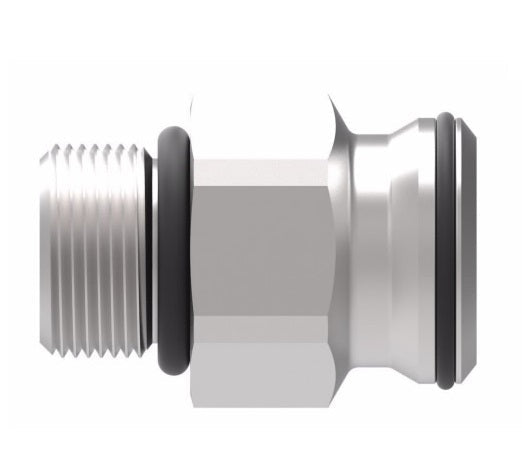

FF3284-2612S Aeroquip by Danfoss | Male Metric O-Ring Boss DIN 3852 to Female STC (Snap to Connect) Adapter (FF) | M26 Male Metric O-Ring Boss x -12 Female STC | Steel
FF3284-2612S Aeroquip by Danfoss | Male Metric O-Ring Boss DIN 3852 to Female STC (Snap to Connect) Adapter (FF) | M26 Male Metric O-Ring Boss x -12 Female STC | Steel
FF3284-2612S Aeroquip by Danfoss | Male Metric O-Ring Boss DIN 3852 to Female STC (Snap to Connect) Adapter (FF) | M26 Male Metric O-Ring Boss x -12 Female STC | Steel
FF3284-2612S Aeroquip by Danfoss | Male Metric O-Ring Boss DIN 3852 to Female STC (Snap to Connect) Adapter (FF) | M26 Male Metric O-Ring Boss x -12 Female STC | Steel

FF3284-2612S Aeroquip by Danfoss | Male Metric O-Ring Boss DIN 3852 to Female STC (Snap to Connect) Adapter (FF) | M26 Male Metric O-Ring Boss x -12 Female STC | Steel

$49.04 - $49.04
$49.04
$49.04 - $49.04
$49.04

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male Metric O-Ring Boss DIN 3852 to Female STC (Snap to Connect) Adapter (FF) - Straight

STC adapters come standard with nitrile o-rings.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF3284-2612S Danfoss
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 A B DIA E Hex "T"
Thread		 STC
Release Tool
FF3284-1608S 1.48" 0.47" 0.80" 0.34" 0.88" M18x1.5 6g FF90213-08
FF3284-1808S 1.46" 0.47" 0.80" 0.42" 0.94" M18x1.5 6g FF90213-08
FF3284-2612S 1.91" 0.61" 1.24" 0.60" 1.42" M18x1.5 6g FF90213-12
