FF4287-1616S Aeroquip by Danfoss | BSPT/Pipe Adapter | -16 Male BSPT x -16 Female NPT | Carbon Steel

FF4287-1616S Aeroquip by Danfoss | BSPT/Pipe Adapter | -16 Male BSPT x -16 Female NPT | Carbon Steel

Name: FF4287-1616S Aeroquip by Danfoss | BSPT/Pipe Adapter | -16 Male BSPT x -16 Female NPT | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4287-1616S Danfoss
Price: 7.08 USD
Availability: InStock

$7.08 - $7.08

$7.08

$7.08 - $7.08

$7.08

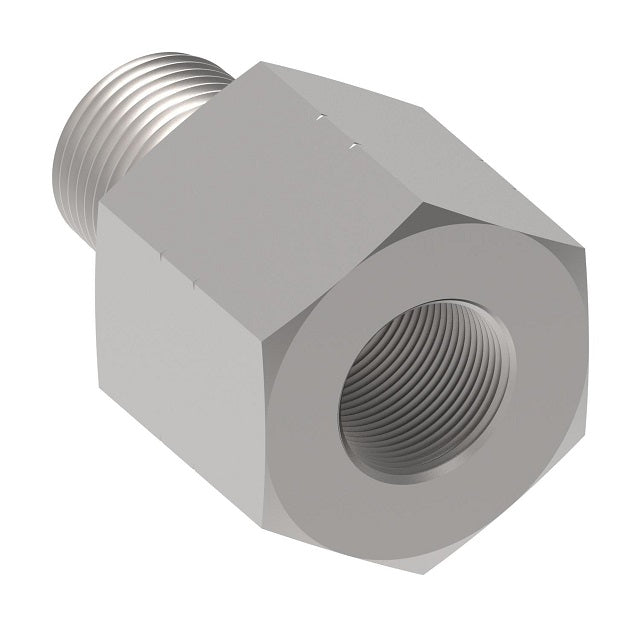

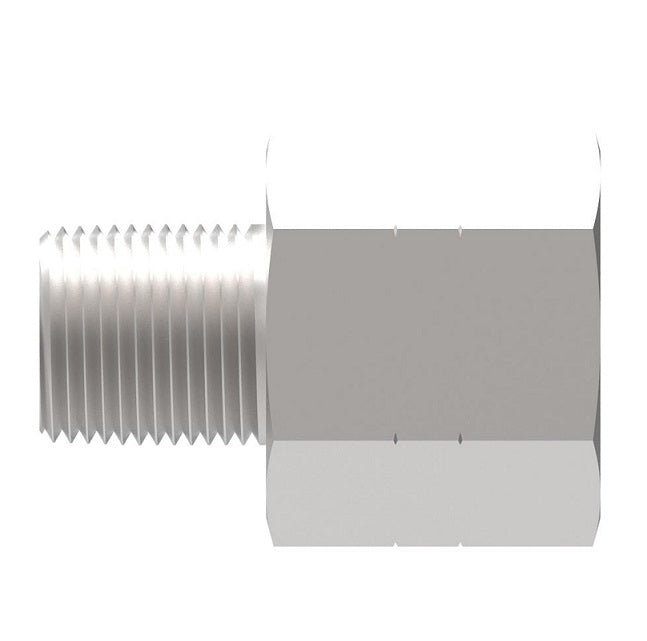

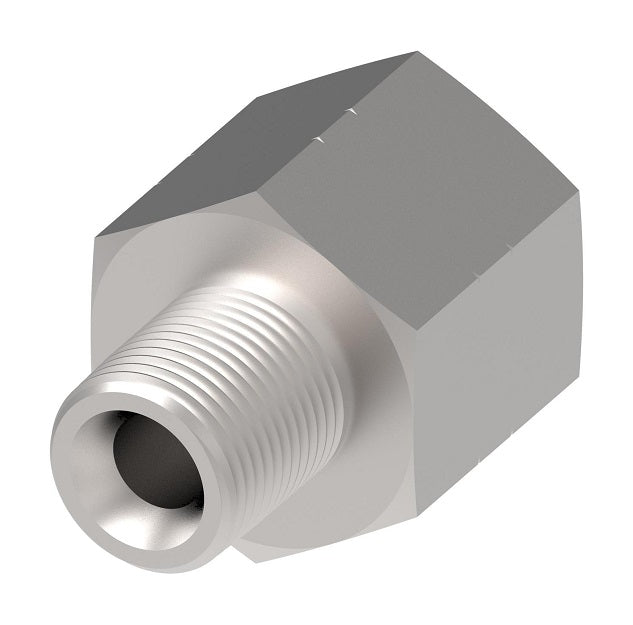

Aeroquip® by Danfoss
BSPT/Pipe Adapter
Male BSPT x Female NPT
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF4287-1616S Danfoss
Brand:	Aeroquip
Ends Configuration:	1in Male BSPT, 1in Female NPT
Material(s):	Carbon Steel

Specifications:
Ref. Performance per JIS 8363 / SAE J514


Steel Part Number	Tube OD	Thread T1	Thread T2	A
FF4287-0202S	0.13"	R1/8-28	1/8-27	0.98"
FF4287-0404S	0.25"	R1/4-19	1/4-18	1.36"
FF4287-0606S	0.38"	R3/8-19	3/8-18	1.44"
FF4287-0808S	0.50"	R1/2-14	1/2-14	1.85"
FF4287-1212S	0.75"	R3/4-14	3/4-14	1.93"
FF4287-1616S	1.00"	R1-11	1-11.5	2.32"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
