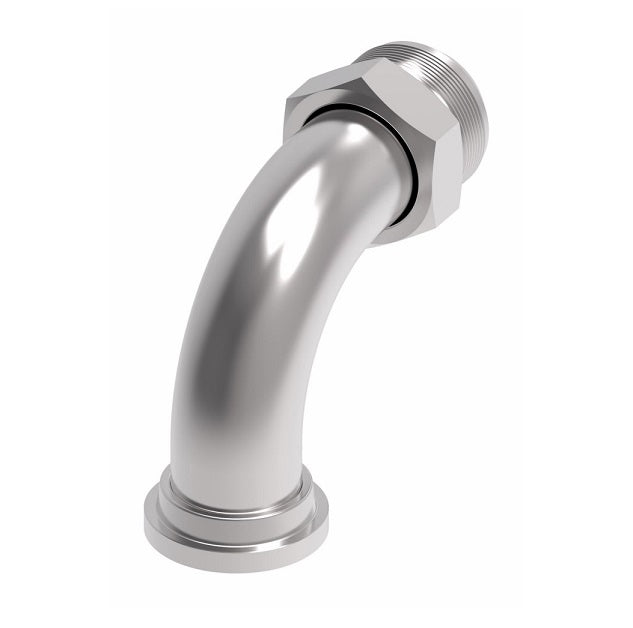

FF5540-2420S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -20 Male 37° JIC Flare | Steel

Name: FF5540-2420S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -20 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: FF5540-2420S Danfoss
Price: 121.3 USD
Availability: InStock

$121.30 - $121.30

$121.30

$121.30 - $121.30

$121.30

Aeroquip® by Danfoss
Code 62 Split Flange/37° JIC Flare Adapter
Code 62 Split Flange x Male 37° JIC Flare
Standard Pressure Series
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF5540-2420S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Code 62 Flange, 1-1/4in Male JIC
Material(s):	Steel

Note:
The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514. mates with FC3425 - size-449 flanges.


Part Number Steel	Split Flange Size	Tube O.D.	Thread T	A	B
FF5540-1212S	3/4"	0.75"	1-1/16-12	2.81"	2.13"
FF5540-1612S	1"	0.75"	1-1/16-12	2.81"	2.13"
FF5540-1616S	1"	1.00"	1-5/16-12	3.41"	2.38"
FF5540-2016S	1-1/4"	1.00"	1-5/16-12	3.41"	2.38"
FF5540-2020S	1-1/4"	1.25"	1-5/8-12	3.71"	2.62"
FF5540-2416S	1-1/2"	1.00"	1-5/16-12	3.41"	2.75"
FF5540-2420S	1-1/2"	1.25"	1-5/8-12	3.71"	2.62"
FF5540-2424S	1-1/2"	1.50"	1-7/8-12	4.33"	3.12"
