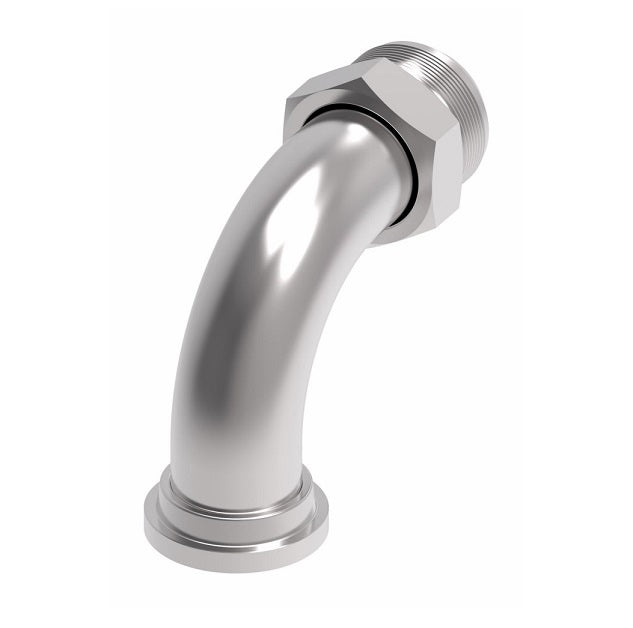

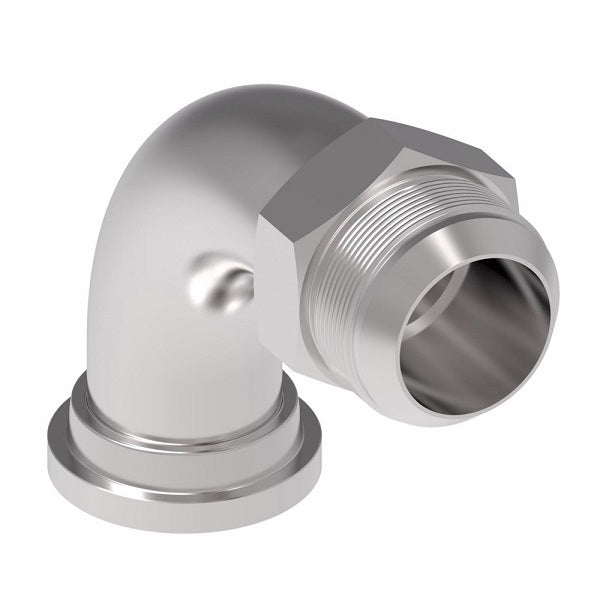

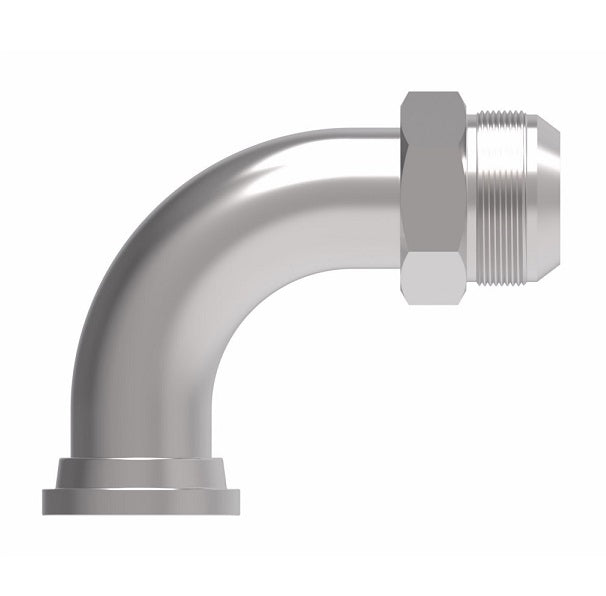

FF5540-2424S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -24 Male 37° JIC Flare | Steel
FF5540-2424S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -24 Male 37° JIC Flare | Steel
FF5540-2424S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -24 Male 37° JIC Flare | Steel
FF5540-2424S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -24 Male 37° JIC Flare | Steel

FF5540-2424S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare 90° Elbow Adapter | Standard Pressure Series | -24 Code 62 Split Flange x -24 Male 37° JIC Flare | Steel

$241.20 - $241.20
$241.20
$241.20 - $241.20
$241.20

Aeroquip® by Danfoss
Code 62 Split Flange/37° JIC Flare Adapter
Code 62 Split Flange x Male 37° JIC Flare
Standard Pressure Series
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF5540-2424S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Code 62 Flange, 1-1/2in Male JIC
Material(s): Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • mates with FC3425 - size-449 flanges.
Part Number Steel Split Flange Size Tube O.D. Thread T A B
FF5540-1212S 3/4" 0.75" 1-1/16-12 2.81" 2.13"
FF5540-1612S 1" 0.75" 1-1/16-12 2.81" 2.13"
FF5540-1616S 1" 1.00" 1-5/16-12 3.41" 2.38"
FF5540-2016S 1-1/4" 1.00" 1-5/16-12 3.41" 2.38"
FF5540-2020S 1-1/4" 1.25" 1-5/8-12 3.71" 2.62"
FF5540-2416S 1-1/2" 1.00" 1-5/16-12 3.41" 2.75"
FF5540-2420S 1-1/2" 1.25" 1-5/8-12 3.71" 2.62"
FF5540-2424S 1-1/2" 1.50" 1-7/8-12 4.33" 3.12"
