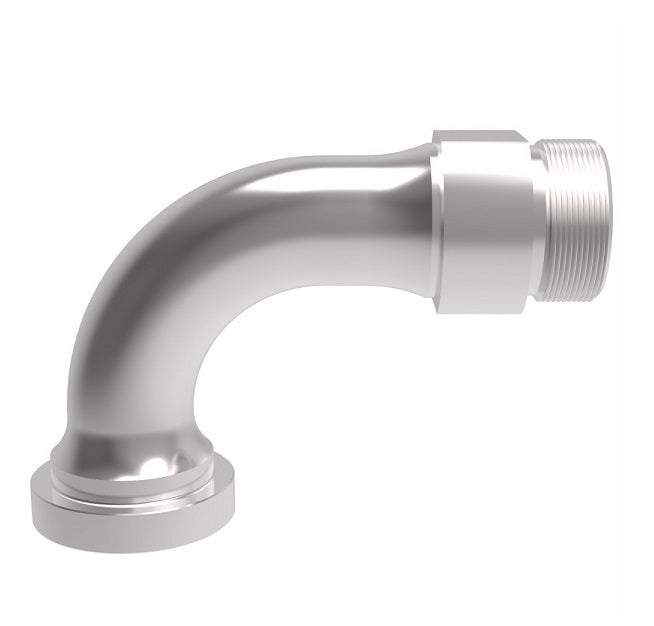

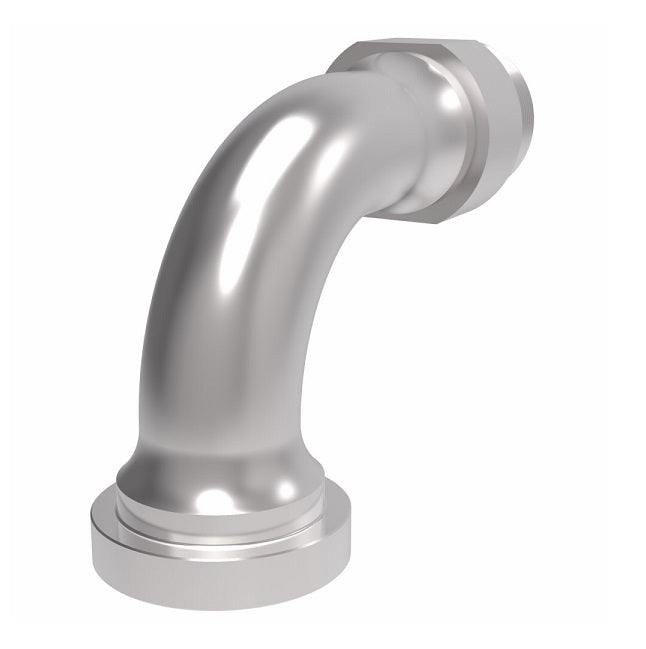

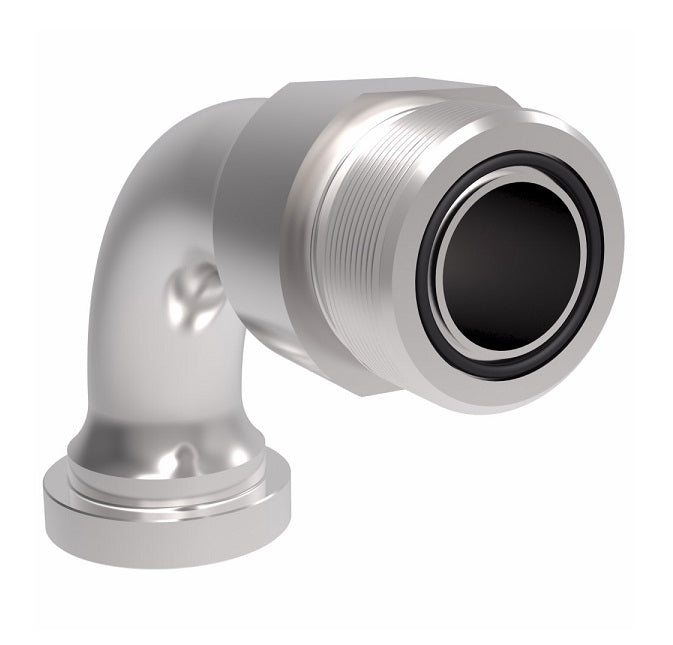

FF5945T1212S Aeroquip by Danfoss | ORS/Code 62 Split Flange 90° Elbow Adapter | -12 Male SAE O-Ring Face Seal x -12 Code 62 Split Flange | Steel

FF5945T1212S Aeroquip by Danfoss | ORS/Code 62 Split Flange 90° Elbow Adapter | -12 Male SAE O-Ring Face Seal x -12 Code 62 Split Flange | Steel

Name: FF5945T1212S Aeroquip by Danfoss | ORS/Code 62 Split Flange 90° Elbow Adapter | -12 Male SAE O-Ring Face Seal x -12 Code 62 Split Flange | Steel
Brand: Danfoss/Eaton
SKU: FF5945T1212S Danfoss
Price: 50.85 USD
Availability: InStock

$50.85 - $50.85

$50.85

$50.85 - $50.85

$50.85

Aeroquip® by Danfoss
ORS/Code 62 Split Flange Adapter
Male SAE O-Ring Face Seal x Code 62 Split Flange
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF5945T1212S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Male O-Ring Face Seal, 3/4in Code 62 Flange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber


Part Number Steel Buna-N O-Ring	Tube O.D.	Thread T	A	B
FF5945T1212S	0.75"	1-3/16-12	2.65"	2.13"
FF5945T1612S	1.00"	1-7/16-12	2.65"	2.13"
FF5945T1616S	1.00"	1-7/16-12	3.22"	2.37"
FF5945T1620S	1.00"	1-7/16-12	3.47"	2.62"
FF5945T2020S	1.25"	1-11/16-12	3.47"	2.62"
FF5945T2424S	1.50"	2-12	3.97"	3.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
