FF687-12 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 3/4" Flange Size | Steel

FF687-12 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring | Complete Kit | 3/4" Flange Size | Steel

$16.98 - $16.98
$16.98
$16.98 - $16.98
$16.98

Aeroquip® by Danfoss

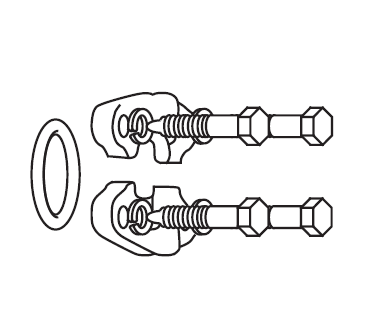

SAE Code 61 Split Flange Kit (SAE J518) with Viton O-Ring (Complete Kit)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF687-12 Danfoss
Brand: Aeroquip
Ends Configuration: 3/4in Code 61 Flange
Material(s): Steel
Seal Material(s): Viton/FKM
Technical Info:
Specifications:
  • O-Rings material: Viton 90 Durometer
  • Temperature range: -15°F to +400°F (-25°C to +205°C
Components Included in Complete Kit:
Complete Kit
Part Number 		Flange Halves
(2 required)
Part Number 		Viton O-Ring
(1 required)
Part Number 		Bolts
(4 required)
Part Number 		Lock washer
(4 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
FF687-12 449-74446-12 22046-214 FF9442-0620-94 210104-6S 3/4" 1.88" 0.88" 0.41" 250-350
FF687-16 449-74446-16 22046-219 FF9442-0620-94 210104-2-6S 1" 2.06" 1.04" 0.41" 325-425
FF687-20 449-74446-20 22046-222 FF9442-0724-94 210104-7S 1-1/4" 2.31" 1.18" 0.48" 425-550
FF687-24 449-74446-24 22046-225 FF9442-0824-94 210104-8S 1-1/2" 2.75" 1.40" 0.53" 550-700
FF687-32 449-74446-32 22046-228 FF9442-0824-94 210104-8S 2" 3.06" 1.68" 0.53" 650-800

Viton is a trademark of The Chemours Company FC, LLC.
