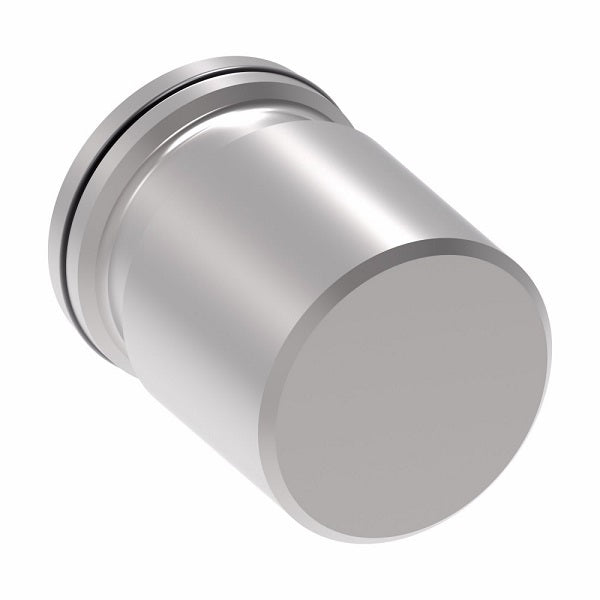

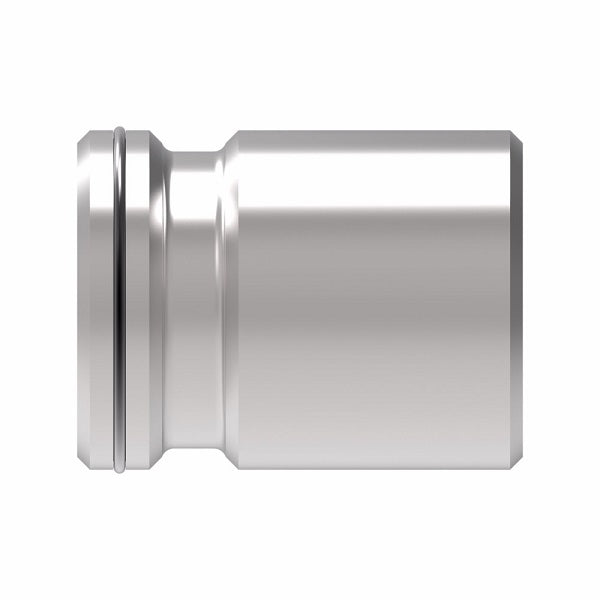

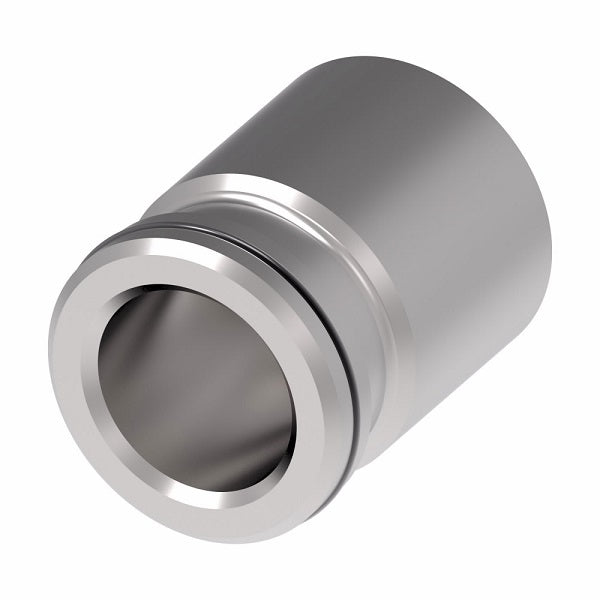

FF90202-10S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -10 Female STC | Steel
FF90202-10S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -10 Female STC | Steel
FF90202-10S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -10 Female STC | Steel
FF90202-10S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -10 Female STC | Steel

FF90202-10S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -10 Female STC | Steel

$77.06 - $77.06
$77.06
$77.06 - $77.06
$77.06

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Female STC (Snap to Connect) Cap (FF)

Female STC Cap can hold pressure equal to the operating pressure of the particular STC size.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF90202-10S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 5/8in Female STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 D1 L1 D2 STC Release Tool
FF90202-06S 0.67" 0.71" 0.83" FF90213-06
FF90202-08S 0.80" 0.83" 1.06" FF90213-08
FF90202-10S 0.96" 0.99" 1.30" FF90213-10
FF90202-12S 1.24" 1.26" 1.45" FF90213-12
FF90202-16S 1.54" 2.00" 1.61" FF90213-01-16S
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
