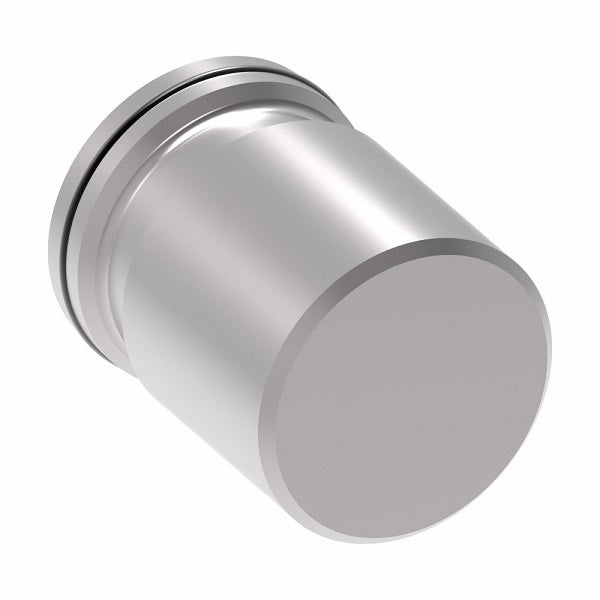

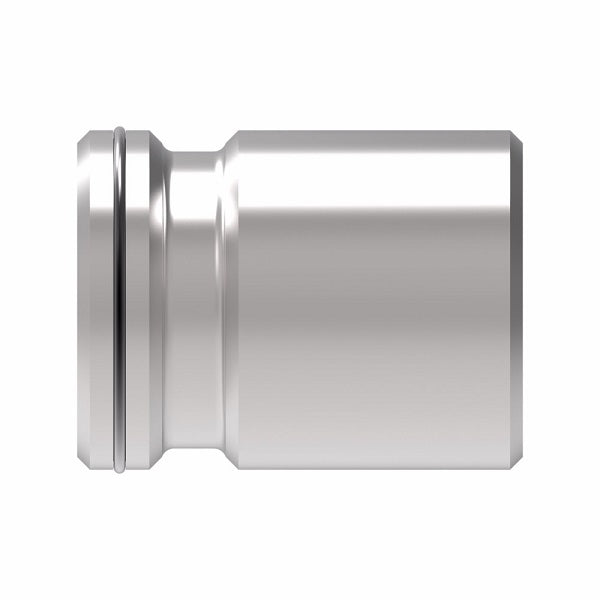

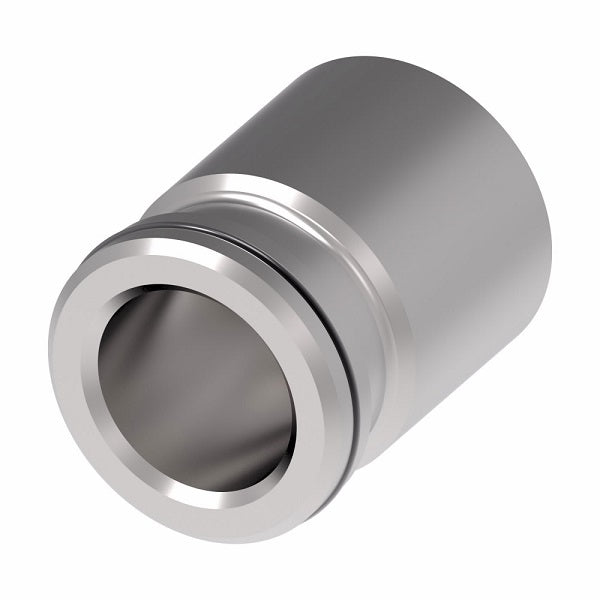

FF90202-16S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -16 Female STC | Steel
FF90202-16S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -16 Female STC | Steel
FF90202-16S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -16 Female STC | Steel
FF90202-16S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -16 Female STC | Steel

FF90202-16S Aeroquip by Danfoss | Female STC (Snap to Connect) Cap (FF) | -16 Female STC | Steel

$65.22 - $65.22
$65.22
$65.22 - $65.22
$65.22

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Female STC (Snap to Connect) Cap (FF)

Female STC Cap can hold pressure equal to the operating pressure of the particular STC size.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF90202-16S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1in Female STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 D1 L1 D2 STC Release Tool
FF90202-06S 0.67" 0.71" 0.83" FF90213-06
FF90202-08S 0.80" 0.83" 1.06" FF90213-08
FF90202-10S 0.96" 0.99" 1.30" FF90213-10
FF90202-12S 1.24" 1.26" 1.45" FF90213-12
FF90202-16S 1.54" 2.00" 1.61" FF90213-01-16S
Danfoss (Eaton - Aeroquip)
