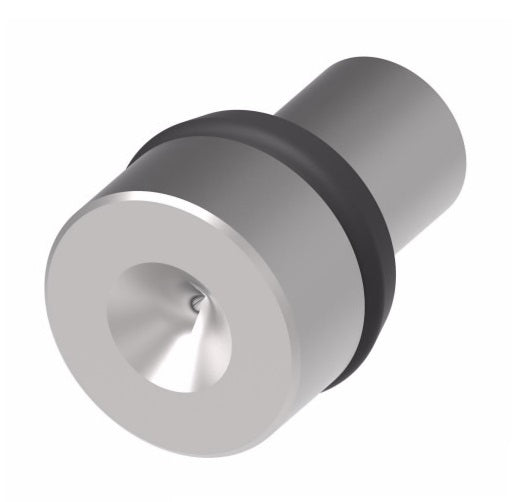

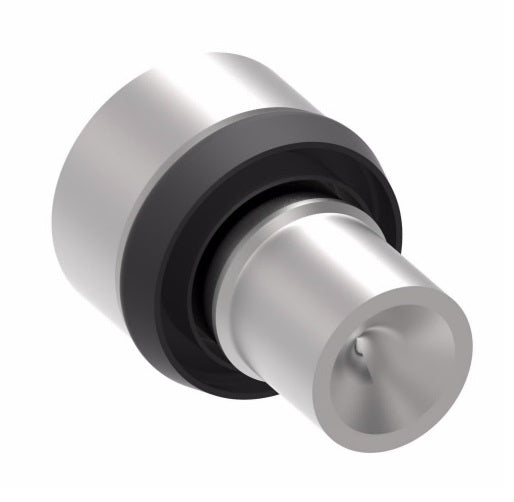

FF90384-16S Aeroquip by Danfoss | Male STC (Snap to Connect) Plug (FF) | -16 Male STC | Steel
FF90384-16S Aeroquip by Danfoss | Male STC (Snap to Connect) Plug (FF) | -16 Male STC | Steel
FF90384-16S Aeroquip by Danfoss | Male STC (Snap to Connect) Plug (FF) | -16 Male STC | Steel
FF90384-16S Aeroquip by Danfoss | Male STC (Snap to Connect) Plug (FF) | -16 Male STC | Steel

FF90384-16S Aeroquip by Danfoss | Male STC (Snap to Connect) Plug (FF) | -16 Male STC | Steel

$15.10 - $15.10
$15.10
$15.10 - $15.10
$15.10

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - Male STC (Snap to Connect) Plug (FF)

Male STC Plug can hold pressure equal to the operating pressure of the particular STC size.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF90384-16S Danfoss
Shape (Orientation): No Orientation
Ends Configuration: 1in Male STC
Material(s): Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Steel
Part Number		 D1 L1 L2 STC Release Tool
FF90384-08S 0.38" 1.48" 0.96" FF90213-08
FF90384-10S 0.45" 1.68" 1.08" FF90213-10
FF90384-12S 0.62" 1.85" 1.25" FF90213-12
FF90384-16S 0.81" 2.05" 1.42" FF90213-01-16S
