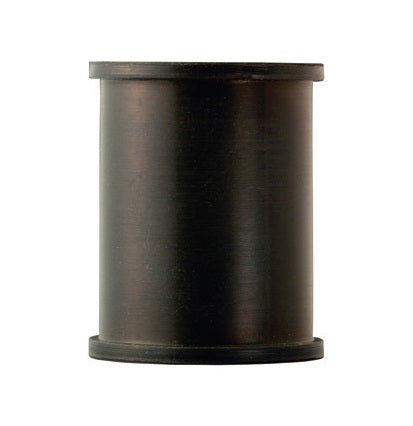

FF90420-08 Aeroquip by Danfoss | A/C Refrigeration | Tube Grommet for Retaining Bracket | for use with -08 Tube Size

FF90420-08 Aeroquip by Danfoss | A/C Refrigeration | Tube Grommet for Retaining Bracket | for use with -08 Tube Size

$1.00 - $1.00
$1.00
$1.00 - $1.00
$1.00

Danfoss A/C & Refrigeration
A/C Refrigeration Tube Grommet for Retaining Bracket
Specifications for Variant SKU: FF90420-08 Danfoss
Brand: Aeroquip
About:
  • Tube brackets have been designed specifically for a customer's unique bracketing requirements.
  • The three-piece design begins with an EPDM grommet, which minimizes tube friction, and "locks" the bracket onto the tube.
  • This design withstands vibration in the toughest of environments, without slippage, and offers ease of fit up, that is often difficult with welded brackets.
  • To complete the assembly, the bracket connection is the customer's design, and the bracket retainer, or bracket top, is sized for a specific tube O.D.
  • To install the assembly, the bracket top and bracket bottom, lock into place, with the ease of a flange screw.
Part Number Description Use on Tube Size "A"
Bracket
Thickness		 "B"
Bracket Retainer
Width		 "C"
Bracket Retainer
Height		 "D"
Base Bracket
Length
FF90420-06 Tube Grommet 6 - - - -
FF90420-08 Tube Grommet 8 - - - -
FF90420-14 Tube Grommet 14 - - - -
FF90453 Flange Screw All - - - -
FF90421-06 Bracket Top 6 2.5/.098 30/1.181 7/.276 -
FF90421-08 Bracket Top 8 2.5/.098 30/1.181 7/.276 -
FF90421-14 Bracket Top 14 2.5/.098 30/1.181 7/.276 -
FF90422-14 Base Bracket 14 2.5/.098 30/1.181 - 54/2.13
