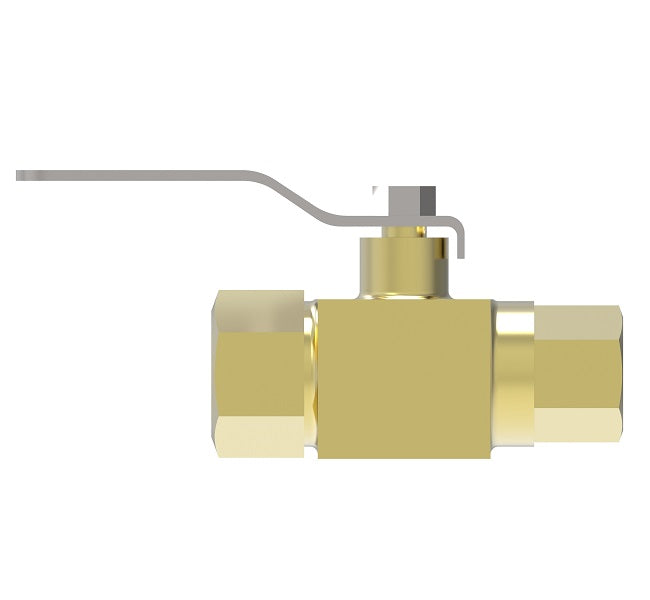

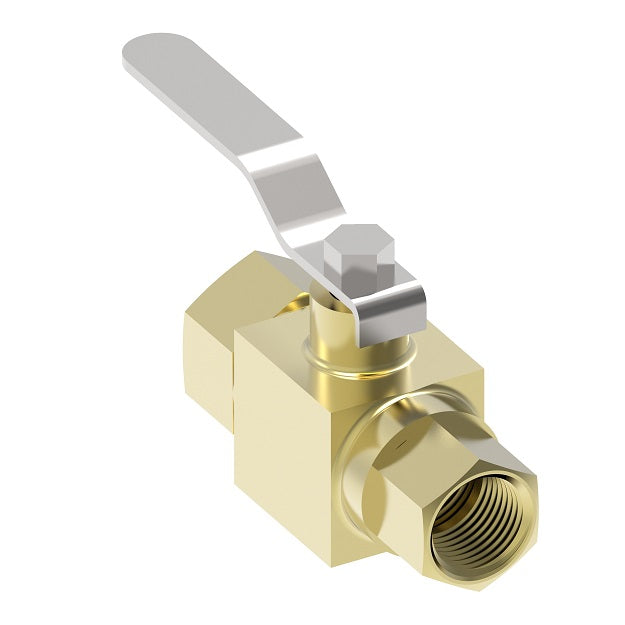

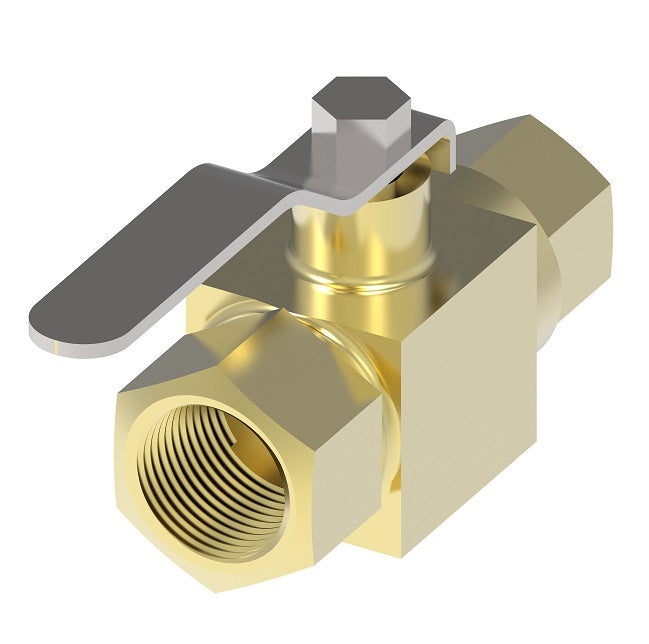

FF90592-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Female NPT x 1/8" Female NPT | Brass
FF90592-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Female NPT x 1/8" Female NPT | Brass
FF90592-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Female NPT x 1/8" Female NPT | Brass
FF90592-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Female NPT x 1/8" Female NPT | Brass

FF90592-02 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/8" Female NPT x 1/8" Female NPT | Brass

$21.26 - $21.26
$21.26
$21.26 - $21.26
$21.26

Aeroquip® by Danfoss
Ball Valve - Mini Instrumentation 2-Way Ball Valve - Straight

Specifications for Variant SKU: FF90592-02 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Mini/Micro Size
Use With:
  • Water, oils and gases.
Applications:
  • Vacuum service.
  • Industrial service.
  • Coolant service.
  • Water service.
  • Compact shut off installations.
  • Low cost instrumentation.
  • Hose shut off.
Features/Benefits:
  • Blowout proof stem.
  • Floating ball design.
  • 1/4 turn - full on/off.
  • Vacuum rating: Full.
Material:
  • Brass bar stock body.
  • Nickel plated ball.
  • Viton stem seal.
  • Standard metal handle.
Pressure:
  • Working pressure: 1,000 psig WOG @ 70°F.
Temperature Range:
  • -40°F + 300°F
Orifice Diameters:
  • 1/8" & 1/4" = 0.250"
Note:
  • Not steam rated.
Brass
Part Number 		Connections Size X Y Z
FF90590-02 M x F NPT 1/8" 1.13" 0.75" 1.25"
FF90590-04 M x F NPT 1/4" 1.13" 0.81" 1.25"
FF90591-02 M x M NPT 1/8" 1.13" 0.75" 1.25"
FF90591-04 M x M NPT 1/4" 1.13" 0.81" 1.25"
FF90592-02 F x F NPT 1/8" 1.13" 0.75" 1.25"
FF90592-04 F x F NPT 1/4" 1.13" 0.85" 1.25"
