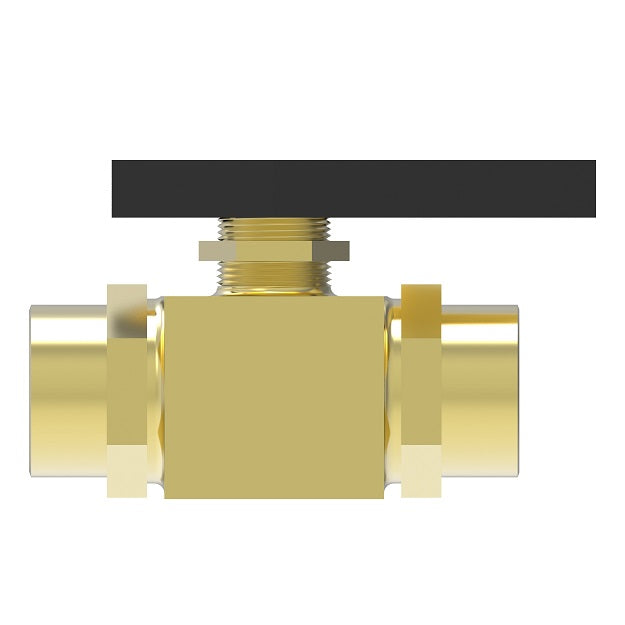

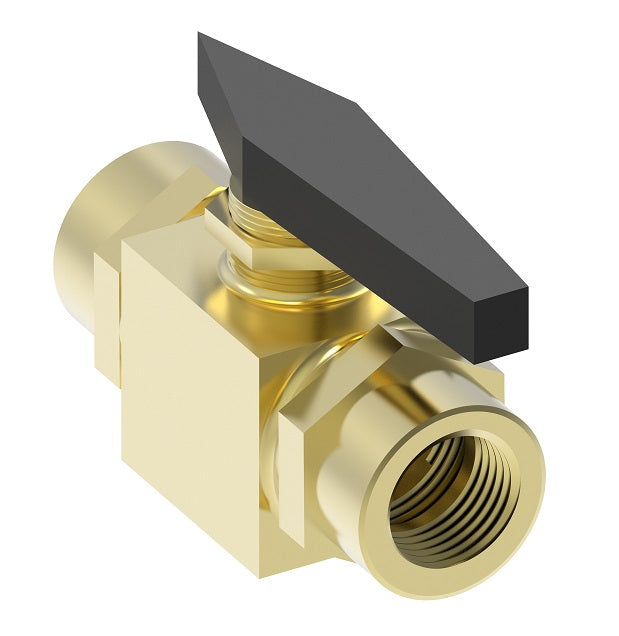

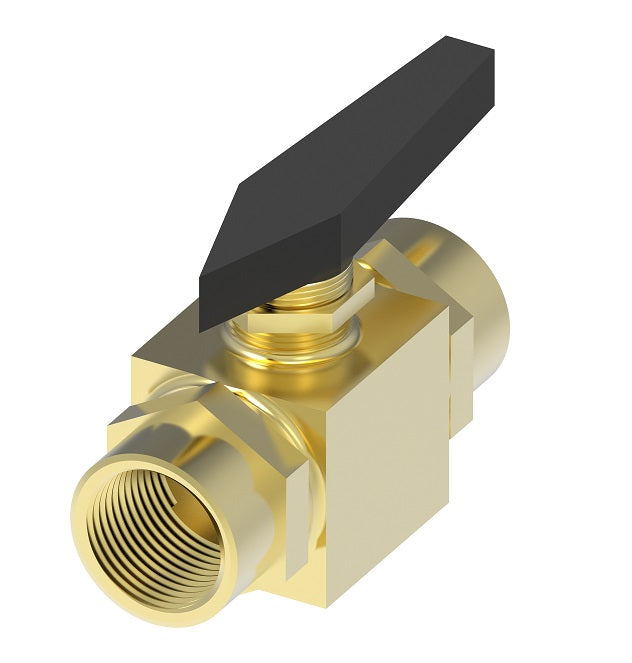

FF90593-08 by Danfoss | Instrumentation 2-Way Ball Valve | 1/2" Female NPT x 1/2" Female NPT | Brass
FF90593-08 by Danfoss | Instrumentation 2-Way Ball Valve | 1/2" Female NPT x 1/2" Female NPT | Brass
FF90593-08 by Danfoss | Instrumentation 2-Way Ball Valve | 1/2" Female NPT x 1/2" Female NPT | Brass
FF90593-08 by Danfoss | Instrumentation 2-Way Ball Valve | 1/2" Female NPT x 1/2" Female NPT | Brass

FF90593-08 by Danfoss | Instrumentation 2-Way Ball Valve | 1/2" Female NPT x 1/2" Female NPT | Brass

$85.68 - $85.68
$85.68
$85.68 - $85.68
$85.68

Aeroquip® by Danfoss
Ball Valve - Instrumentation 2-Way Ball Valve - Straight

Specifications for Variant SKU: FF90593-08 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Brass
Use With:
  • Water, oils and gases.
Applications:
  • Vacuum service.
  • Industrial service.
  • Water service.
  • Panel mounting.
Features/Benefits:
  • Blowout proof stem.
  • Floating ball design.
  • Vacuum rating: Full.
Material:
  • Brass bar stock body.
  • Nickel plated ball.
  • Viton stem seal.
  • Metal retainer seal.
  • Seals: Ball Seats = Teflon
    Stem Seals = 2 O-Rings (Viton & Buna-N)
Working Pressure:
  • 1/8" & 1/4" = 1500 psig @ 70°F.
  • 3/8" & 1/2" = 1000 psig @ 70°F.
Temperature Range:
  • -40°F + 300°F
Orifice Diameters:
  • 1/8" & 1/4" = 0.250"
  • 3/8" & 1/2" = 0.375"
  • Panel mount hole size: 9/16" ID
Note:
  • Not steam rated.
Brass
Part Number		 Connections Size X Y Z
FF90593-02 F x F NPT 1/8" 0.92" 0.92" 1.25"
FF90593-04 F x F NPT 1/4" 0.92" 0.92" 1.25"
FF90593-08 F x F NPT 1/2" 1.19" 1.90" 1.42"
FF90594-02 Compression 1/8" 0.92" 0.92" 1.25"
FF90594-04 Compression 1/4" 0.92" 0.92" 1.25"
FF90594-08 Compression 1/2" 1.46" 1.46" 1.42"
