FF90754-79 Everflex by Danfoss | Guardian Sleeve | for -4 Hose Size | 0.79" Sleeve ID | 0.61" Max Hose OD that Sleeve Can Accept | 300ft Roll

FF90754-79 Everflex by Danfoss | Guardian Sleeve | for -4 Hose Size | 0.79" Sleeve ID | 0.61" Max Hose OD that Sleeve Can Accept | 300ft Roll

$1,706.57 - $1,706.57
$1,706.57
$1,706.57 - $1,706.57
$1,706.57

Everflex by Danfoss
Guardian Sleeve

Danfoss' Guardian Sleeve is designed to provide protection against hydraulic hose failure by containing pressure and fluids that may escape during a hose burst or pinhole leak.

With this line of sight sleeving which meets industry standards, both equipment operators and the environment are guarded from the effects of hose failures.

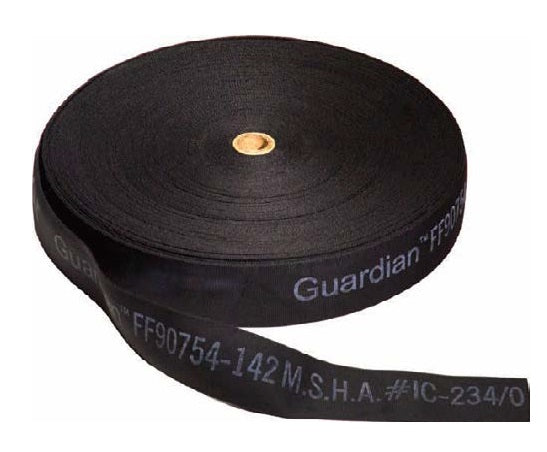

Danfoss Guardian Sleeve comes in a 300 foot roll with no more than 3 cuts per roll and no piece shorter than 30 feet.


Package Quantity: 300 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FF90754-79 Danfoss | 300 |
Benefits:
  • The ultra tight weave resists oil spillage from hose failure.
  • Densely twisted polyamide 6 yarn offers optimum UV and abrasion protection.
  • Tight, smooth surface resists wear.
Specifications:
  • Meets new line of sight operator specification EN982 ISO norm 833 EN414 and ISO 3457.
  • Meets ASTM D6770 for abrasion resistance of textile webbing.
  • Meets abrasion standard ISO 6945.
  • Meets Fed-STD191-test method 5309 for abrasion.
  • MSHA approved # IC-234/0 - meets standard application procedures for acceptance of flame resistance solid products taken into mines.
  • Meets conductivity requirements of ISO 8031.
Assembly:

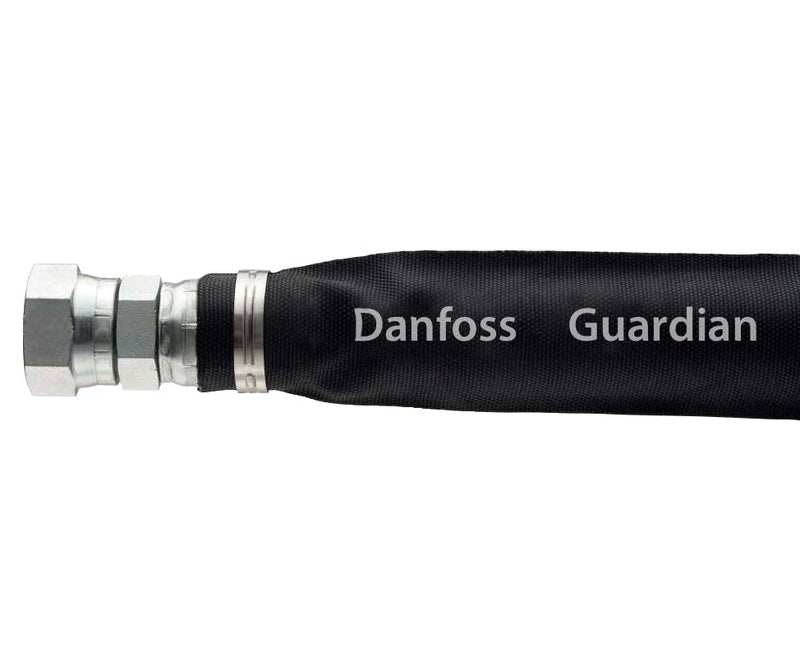

  • Slide sleeve onto the hose before assembling the ends. After assembly, clamp the hose onto the fitting using a metal banding product.
Chemical Compatibility Chart for Guardian Sleeving
Chemical Compatibility
Gasoline Very Good
Oil Very Good
Mineral and Vegetable Oil Very Good
Ionic Metallic Solutions Very Good
Alcohols Very Good
Diluted Bases Very Good
Diluted acids Good
Benzene Very Good
Acetone Very Good
Ether Very Good
Carbon Tetrachloride Very Good
Chlorine Based Solvent Very Good
Mold, Bacteria, Moths Very Good
Strong and concentrated acids; ie. Hcl or Formic Acid may have some corrosive action.
Guardian Sleeve Properties:
Denier: 1260 Melting Point: 215 °C / 420 °F
Material: Polyamide 6, made with pre-dyed yarn Dim. Stability: Great resistance to sun, atmospheric agents and aging
Toxicity: Non-Toxic Color: Black
Guardian Sleeving Pressures
Properties Specication Description
Burst Pressure 16,000 psi Capable to contain hose burst up to 16,000 psi
Pin Hole Leak Pressure 4,000 psi Sustained 4,000 psi pin hole deflection from focused 1mm pin hole
Abrasion Cycles 250,000 Holds up to 250,000 abrasion cycles per ISO 6945
Part Number Nominal
ID		 A - Flat Width
+/- 0.125		 Weight
per 300 ft Roll		 Rolls
per Box		 Sleeve
ID		 Max Hose OD
that Sleeve
can accept		 Hose Size
as a Ref.
FF90754-68 0.68" 1.290" 7.43 lbs 8 0.68" 0.52" -4
FF90754-79 0.79" 1.400" 8.50 lbs 7 0.79" 0.61" -4
FF90754-91 0.91" 1.590" 9.70 lbs 6 0.91" 0.70" -6
FF90754-98 0.98" 1.590" 10.13 lbs 6 0.98" 0.76" -6
FF90754-106 1.06" 1.825" 11.10 lbs 5 1.06" 0.80" -6
FF90754-122 1.22" 2.076" 12.60 lbs 4 1.22" 0.92" -8
FF90754-142 1.42" 2.390" 14.50 lbs 4 1.42" 1.02" -10
FF90754-157 1.57" 2.650" 16.10 lbs 3 1.57" 1.13" -10
FF90754-173 1.73" 2.910" 17.70 lbs 3 1.73" 1.24" -12
FF90754-185 1.85" 3.100" 18.80 lbs 3 1.85" 1.34" -16
FF90754-209 2.09" 3.470" 21.10 lbs 2 2.09" 1.50" -16
FF90754-219 2.19" 3.630" 22.10 lbs 2 2.19" 1.54" -20
FF90754-238 2.38" 3.925" 23.90 lbs 2 2.38" 1.70" -20
FF90754-288 2.88" 4.714" 28.60 lbs 2 2.88" 2.00" -20
FF90754-366 3.66" 5.938" 36.10 lbs 1 3.66" 2.40" -24

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
