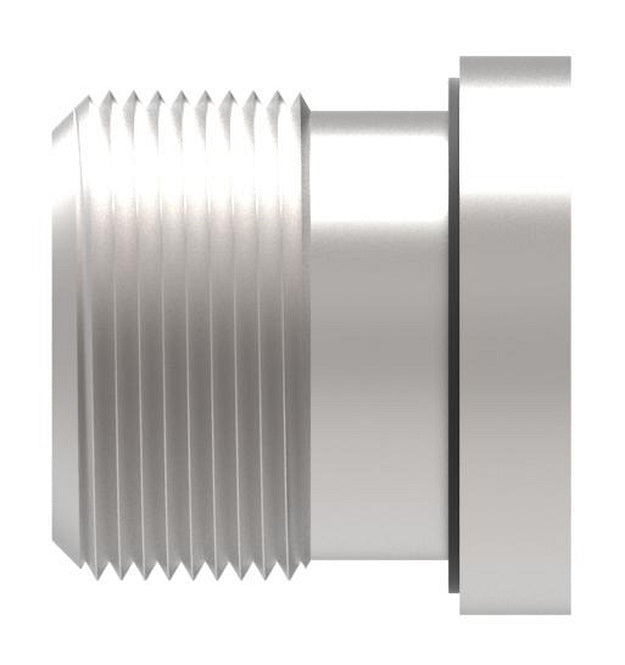

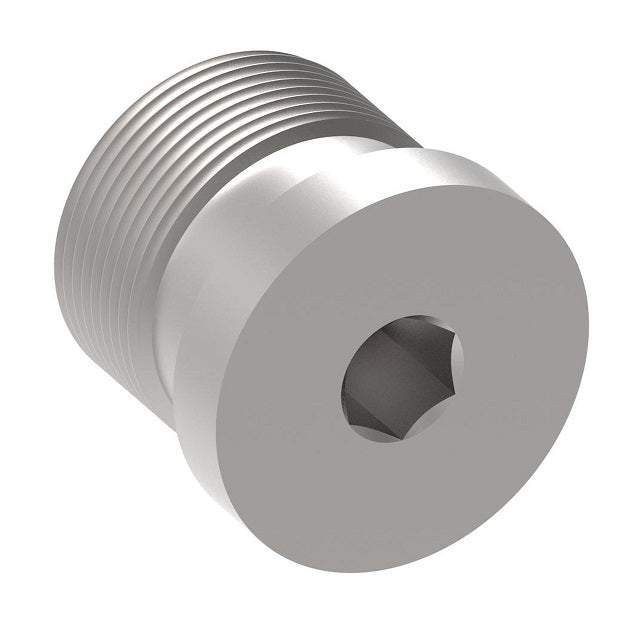

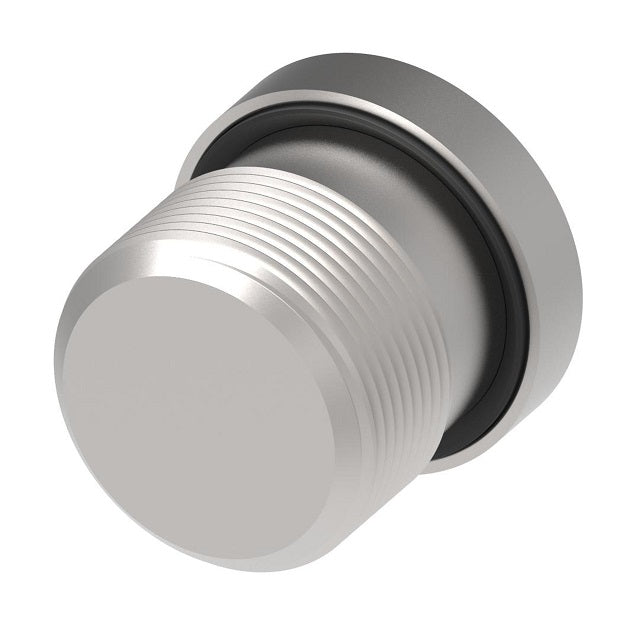

FF91572-04S Aeroquip by Danfoss | BSPP Captive Seal Hollow Hex Plug | -04 Male BSPP | Carbon Steel

FF91572-04S Aeroquip by Danfoss | BSPP Captive Seal Hollow Hex Plug | -04 Male BSPP | Carbon Steel

Name: FF91572-04S Aeroquip by Danfoss | BSPP Captive Seal Hollow Hex Plug | -04 Male BSPP | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF91572-04S Danfoss
Price: 0.92 USD
Availability: InStock

$0.92 - $0.92

$0.92

$0.92 - $0.92

$0.92

Aeroquip® by Danfoss
BSPP Captive Seal Hollow Hex Plug

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF91572-04S Danfoss
Brand:	Aeroquip
Ends Configuration:	1/4in Male BSPP
Material(s):	Carbon Steel

Specifications:
Ref. ISO 1179-2 L Type E


Steel Part Number	Thread T	A	C (Round)	Hex B
FF91572-02S	G 1/8-28	0.48"	0.55"	0.20"
FF91572-04S	G 1/4-19	0.68"	0.74"	0.24"
FF91572-06S	G 3/8-19	0.68"	0.86"	0.31"
FF91572-08S	G 1/2-14	0.76"	1.06"	0.39"
FF91572-12S	G 3/4-14	0.83"	1.26"	0.47"
FF91572-16S	G 3/8-19	0.90"	1.57"	0.67"
FF91572-20S	G 1-1/4-11	1.06"	1.96"	0.87"
FF91572-24S	G 1-1/2-11	1.13"	2.16"	0.94"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
