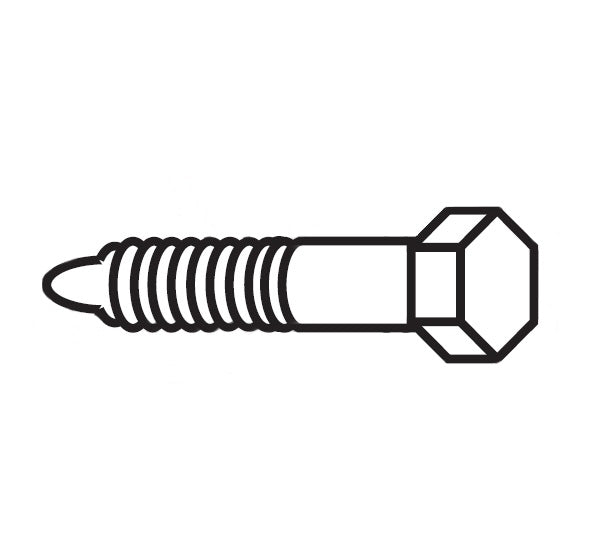

FF9442-0624-94 Aeroquip by Danfoss | Code 62 Split Flange Bolt (1 Bolt) | for 3/4" Flange Size | Steel

FF9442-0624-94 Aeroquip by Danfoss | Code 62 Split Flange Bolt (1 Bolt) | for 3/4" Flange Size | Steel

$0.86 - $0.86
$0.86
$0.86 - $0.86
$0.86

Aeroquip® by Danfoss
Flange Bolt for SAE Code 62 Split Flange Kit (SAE J518)

Important: 4 bolts are required for a complete assembly.
Flange Bolts are not sold as a pack of 4. If you require 4 bolts, set the quantity below, to 4.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF9442-0624-94 Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Technical Info:
Specifications:
  • Temperature range: -40°F to +250°F (-40°C to + 121°C)
Bolts
(4 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
FF9442-0624-94 3/4" 2.00" 0.94" 0.42" 300-400
FF9442-0728-94 1" 2.25" 1.10" 0.50" 500-600
FF9442-0828-94 1-1/4" 2.62" 1.24" 0.60" 750-900
FF9442-1036-94 1-1/2" 3.12" 1.44" 0.66" 1400-1600
FF9442-1244-94 2" 3.81" 1.76" 0.78" 2400-2600
