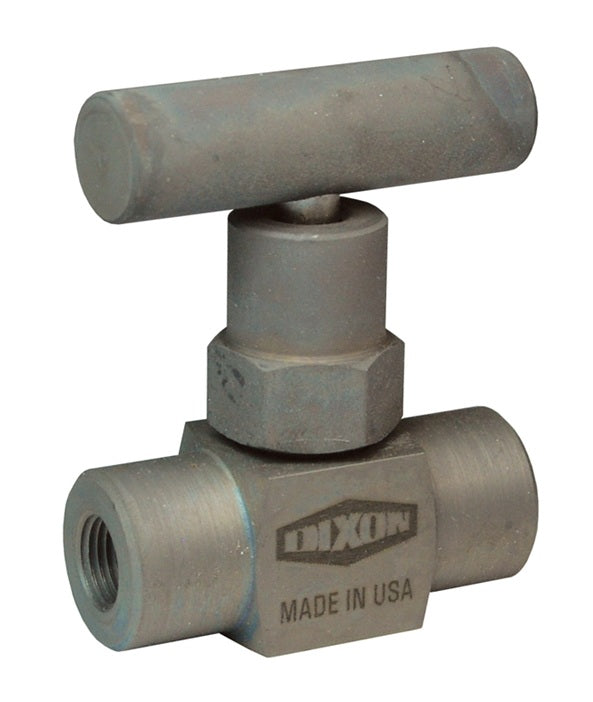

FFC101 by Dixon Valve | Mini Needle Valve | T Design Handle | 1/8" Female NPT x 1/8" Female NPT | Zinc Nickel Plated Steel

FFC101 by Dixon Valve | Mini Needle Valve | T Design Handle | 1/8" Female NPT x 1/8" Female NPT | Zinc Nickel Plated Steel

Save $2.45 Save $2.45
$31.86
$31.86 - $31.86
$31.86
$29.41
$29.41 - $29.41
$29.41

Dixon Valve & Coupling
Mini Needle Valve
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FFC101 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s): Zinc/Nickel-Plated Steel
Seal Material(s): Viton/FKM
Features:
  • FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling.
  • Stem threads are rolled for strength and ease of operation.
Materials:
  • Stems: 316 stainless steel
Specifications:
  • Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI.
  • 1/8" and 1/4" are orifice size: 0.172", flow coefficient: 0.42.
  • 1/2": orifice size are 0.187", flow coefficient: 0.44, hex body.
Part Number Material NPT Size Handle Style PSI @ 200°F
Male NPT x Female NPT
MFB101 Brass 1/8-27 Knurled Knob Handle 6000 PSI
MFB102 Brass 1/4-18 Knurled Knob Handle 6000 PSI
MFC101 Zinc Nickel Plated Steel 1/8-27 T Design Handle 10000 PSI
MFC102 Zinc Nickel Plated Steel 1/4-18 T Design Handle 10000 PSI
MFC404 Zinc Nickel Plated Steel 1/2-14 T Design Handle 10000 PSI
MFS101 316 Stainless Steel 1/8-27 T Design Handle 10000 PSI
MFS102 316 Stainless Steel 1/4-18 T Design Handle 10000 PSI
MFS404 316 Stainless Steel 1/2-14 T Design Handle 10000 PSI
Female NPT x Female NPT
FFB101 Brass 1/8-27 Knurled Knob Handle 6000 PSI
FFB102 Brass 1/4-18 Knurled Knob Handle 6000 PSI
FFC101 Zinc Nickel Plated Steel 1/8-27 T Design Handle 10000 PSI
FFC102 Zinc Nickel Plated Steel 1/4-18 T Design Handle 10000 PSI
FFC404 Zinc Nickel Plated Steel 1/2-14 T Design Handle 10000 PSI
FFS101 316 Stainless Steel 1/8-27 T Design Handle 10000 PSI
FFS102 316 Stainless Steel 1/4-18 T Design Handle 10000 PSI
FFS404 316 Stainless Steel 1/2-14 T Design Handle 10000 PSI
