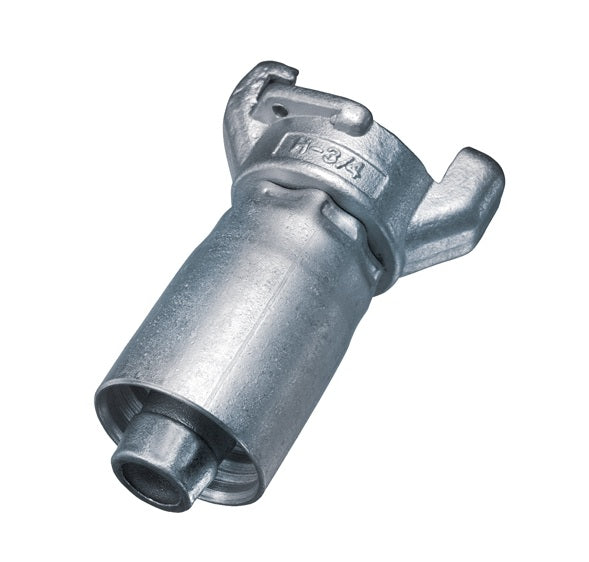

FHE-50 by Kuriyama | FHE Series | Universal Air Hose Crimp Coupling | Two Lug | 1/2" Hose ID | Fits 27/32" to 1-1/32" Hose OD | Zinc Plated Carbon Steel

Save $6.48

$14.65

$14.65 - $14.65

$14.65

$8.17

$8.17 - $8.17

$8.17

Kuriyama of America Inc.
FHE Series | Universal Air Hose Crimp Coupling | Two Lug | Zinc Plated Carbon Steel

Applications include compressed air systems and pneumatic tools.

Designed for compressed air and water service only.

Specifications for Variant SKU: FHE-50 Kuriyama
Series:	FHE Series
Shape (Orientation):	Straight
Ends Configuration:	2-Lug Chicago, 1/2in Hose Barb
Material(s):	Zinc Plated Carbon Steel
Seal Material(s):	Rubber
Applicable Specs & Approvals:	MIL-Spec A-A-59553, ASTM A 27 Grade 1030

What are the Applications?

Applications include compressed air systems and pneumatic tools.
Designed for compressed air and water service only.
WARNING: Not for use in steam applications!

What are the Materials?

ASTM A27, Grade 1030 Zinc Plated Carbon Steel.
Complies with Mil-Spec A-A-59553.

Part Number	Hose ID Size (in)	Hose OD Range (in)	Style	Gasket	PSI Rating at 70°F	Weight Each (lbs)
FHE-50	1/2"	27/32 - 1 1/32"	2 Lug	AHG-75	150 PSI	0.50 lbs
FHE-75	3/4"	1-1/16 - 1-11/32"	2 Lug	AHG-75	150 PSI	0.60 lbs
FHE-100	1"	1-9/32 - 1-17/32"	2 Lug	AHG-75	150 PSI	0.66 lbs
FHE-101	1"	1-15/32 - 1-23/32"	2 Lug	AHG-75	150 PSI	0.66 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
